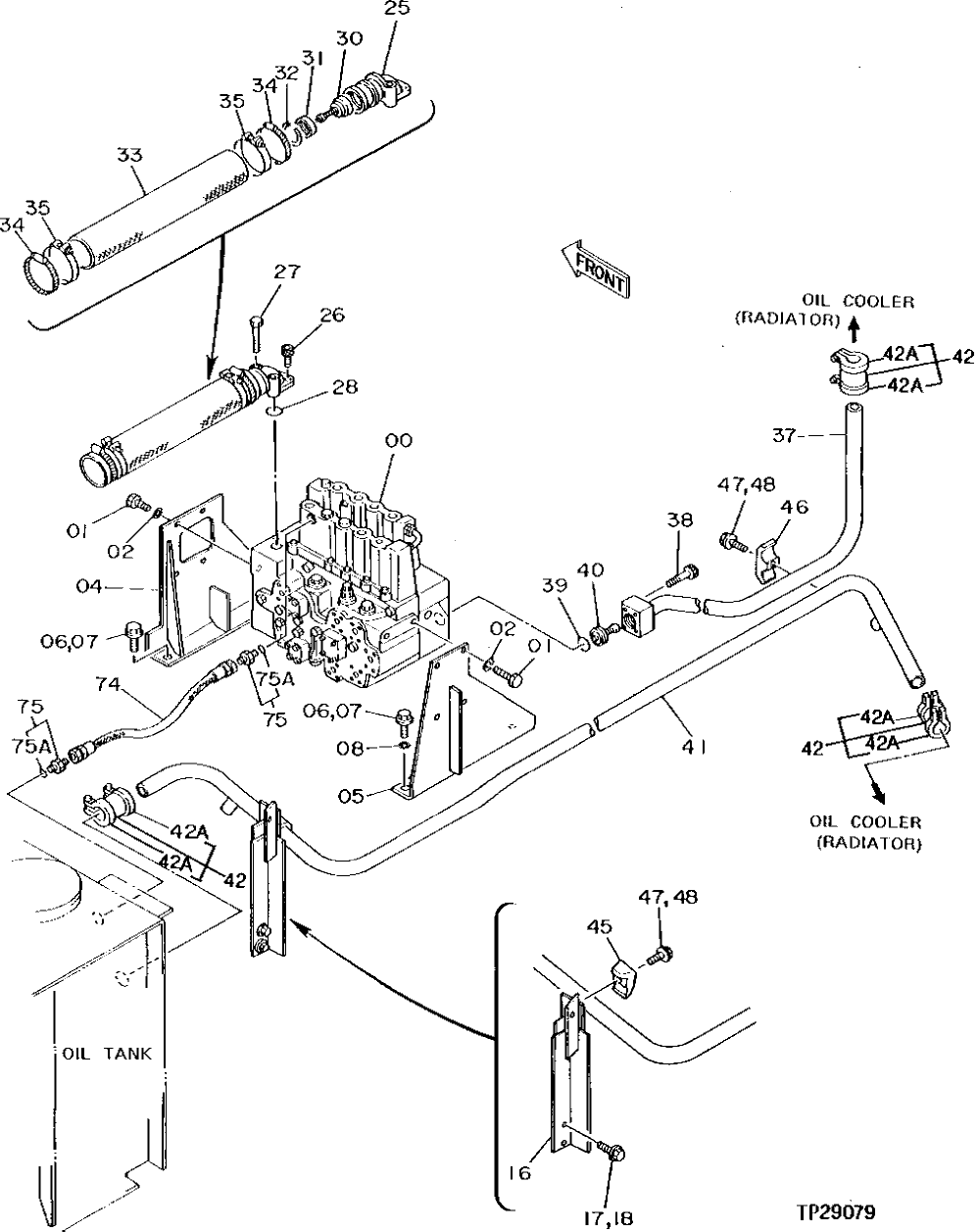

Запчасти John Deere 90D 14 - SUCTION, RETURN AND OIL COOLER PLUMBING 3360 - EXCAVATOR 33

0

4224897

HYD ACTUATED CONTROL VALVE

(SUB FOR TH108295) (SUB TH111889 AND AT186093)

1шт.

1

19M7877

CAP SCREW

M14 X 30

8шт.

2

12H317

LOCK WASHER

9/16"

8шт.

4

8037416

BRACKET

(SUB FOR TH108296)

1шт.

5

8037415

BRACKET

(SUB FOR TH108297)

1шт.

6

19M7403

CAP SCREW

M12 X 35

4шт.

7

12H301

LOCK WASHER

1/2"

4шт.

8

4086891

WASHER

13 X 26 X 3.200 MM (0.512" X 1.024" X 0.126") (SUB FOR TH104166)

2шт.

16

8038880

SUPPORT

(SUB FOR TH108301)

1шт.

17

19M7403

CAP SCREW

M12 X 35

2шт.

18

12H301

LOCK WASHER

1/2"

2шт.

25

2021613

MANIFOLD

(SUB FOR TH108304)

1шт.

26

M341022

SCREW

(SUB FOR TH105695)

2шт.

27

19M8340

SCREW

M10 X 65

2шт.

28

AT264324

O-RING

(SUB FOR TH100044) (USE IF AVAILABLE)

1шт.

AT264324

O-RING

(SUB FOR T32587, TH100044)

1шт.

30

4188627

FLOW CONTROL HYD. VALVE

(SUB FOR TH108305)

1шт.

31

4188628

RING

(SUB FOR TH108306)

1шт.

32

40M1864

SNAP RING

(SUB FOR TH100006)

1шт.

33

4098558

HOSE

(SUB FOR TH108307)

1шт.

34

TY22472

CLAMP

(SUB FOR AT145651 OR AR21999)

2шт.

35

AT39141

HOSE CLAMP

(SUB FOR TH108308 OR AH104837, THIS APPLICATION)

2шт.

37

9727994

LINE

(SUB FOR TH108309) (RETURN)

1шт.

38

19M8339

SCREW

M10 X 55

4шт.

39

4203137

O-RING

40.996 X 1.778 MM (1.614" X 0.070") (SUB FOR TH108310)

1шт.

40

4202625

FLOW CONTROL HYD. VALVE

(SUB FOR TH108311)

1шт.

41

8038866

LINE

(SUB FOR TH108312) (RETURN)

1шт.

42

4071213

COUPLING

(SUB FOR TH101923)

3шт.

42A

4196258

SEAL

(SUB FOR TH106965)

2шт.

45

4190127

CLAMP

(SUB FOR TH108313)

1шт.

46

4189860

CLAMP

(SUB FOR TH108314)

1шт.

47

19M8348

CAP SCREW

M12 X 65

2шт.

48

12H301

LOCK WASHER

1/2"

2шт.

74

AE42718

HYDRAULIC HOSE

7/16" X 600 MM (23-1/2") X 7/16", (SUB FOR TH108327)

1шт.

75

4200465

ADAPTER FITTING

(SUB FOR TH108328)

2шт.

75A

M800650

PACKING

1шт.
