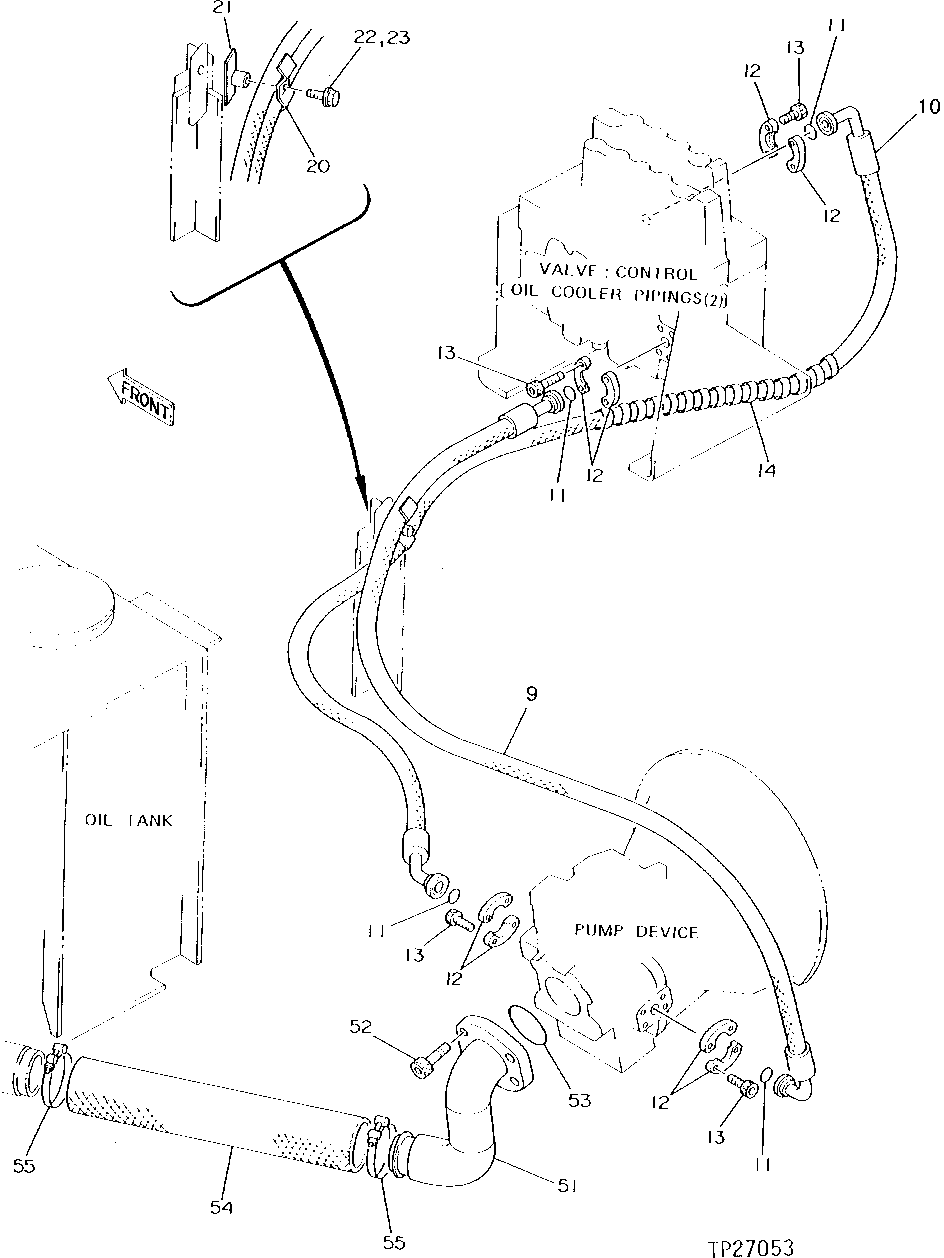

Запчасти John Deere 90D 12 - SUCTION, RETURN AND OIL COOLER PLUMBING 3360 - EXCAVATOR 33

9

TH108298

HYDRAULIC HOSE - FABRICATE

1шт.

10

4204132

HYDRAULIC HOSE

(SUB FOR TH108299)

1шт.

11

T59014

O-RING

24.990 X 3.530 MM (0.984" X 0.139") (SUB FOR TH100939)

4шт.

12

R29424

FLANGE FITTING

(SUB FOR TH108300)

8шт.

13

19M8337

SCREW

M10 X 30

16шт.

14

HOSE GUARD

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

1шт.

20

4202103

CLAMP

(SUB FOR TH108302)

1шт.

21

9727633

CLAMP

(SUB FOR TH108303)

1шт.

22

19M7361

CAP SCREW

M12 X 50

1шт.

23

12H301

LOCK WASHER

1/2"

1шт.

51

8038830

LINE

(SUB FOR TH108315)

1шт.

52

19M8445

SCREW

M16 X 45, (SUB FOR TH101043)

4шт.

19M8490

SCREW

M16 X 40

4шт.

53

CH17854

PACKING

(SUB FOR TH101042)

1шт.

54

HOSE

( TH108316 OR AT128493 NO LONGER AVAILABLE) (MAKE FROM AT126201 BULK MATERIAL CUT TO LENGTH)

1шт.

55

AT50923

HOSE CLAMP

2шт.
