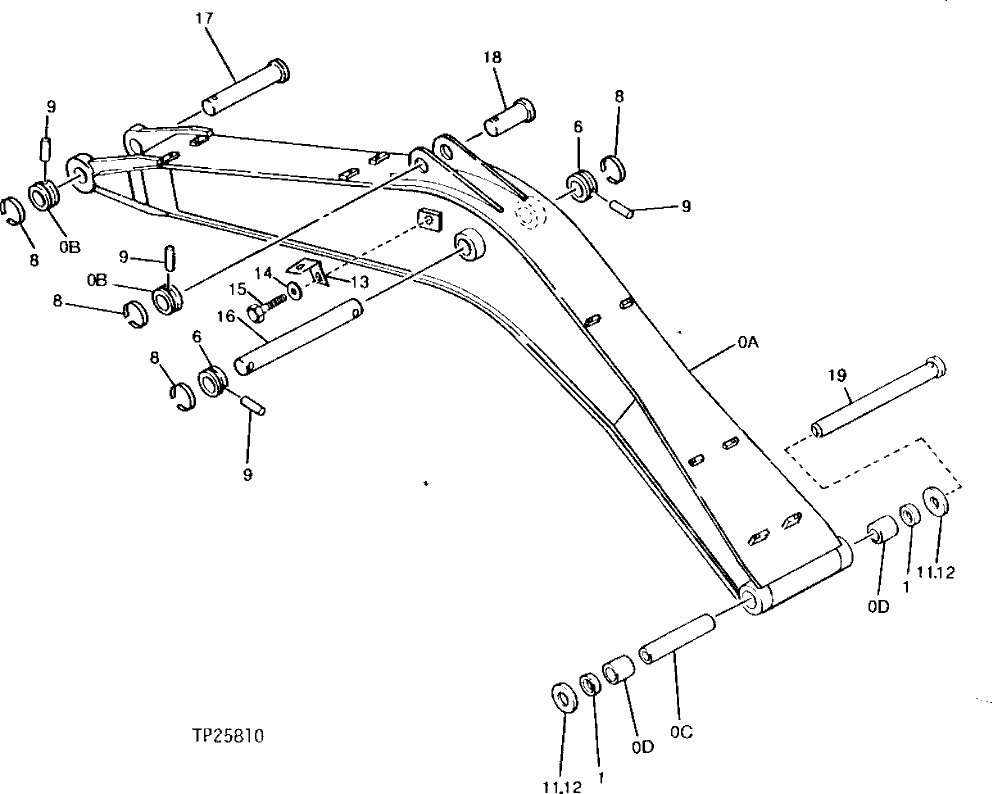

Запчасти John Deere 90D 2 - BOOM 3344 - EXCAVATOR 33

0A

8035673

EXCAVATOR BOOM

(SUB FOR TH108599) (INCLUDES KEYS 0A THROUGH D)

1шт.

0B

TH108649

BUSHING

2шт.

0C

4196559

LINE

(SUB FOR TH108351)

1шт.

0D

4196556

BUSHING

(SUB FOR TH108923)

2шт.

1

TH100374

SEAL

2шт.

6

TH108649

BUSHING

2шт.

8

4065688

RETAINER

(SUB FOR TH100624)

4шт.

9

4065689

PIN FASTENER

(SUB FOR TH100625)

4шт.

11

4075359

WASHER

66 X 140 X 1 MM (2.598" X 5.512" X 0.039") (SUB FOR TH101314) 1.0 MM

2шт.

12

4075360

WASHER

66 X 140 X 2 MM (2.598" X 5.512" X 0.079") (SUB FOR TH101315) 2.0 MM

2шт.

13

4224631

ANGLE

(SUB FOR TH111685)

1шт.

14

12H317

LOCK WASHER

9/16"

1шт.

15

J901425

CAP SCREW

(SUB FOR TH104071)

1шт.

16

TH111017

PIN

(SUB FOR TH108924)

1шт.

TH111017

PIN

1шт.

17

TH108925

PIN

1шт.

18

TH111904

PIN FASTENER

(SUB FOR TH108926)

1шт.

19

3043453

PIN

(SUB FOR TH108200)

1шт.
