Запчасти John Deere 90D 2 - DIPPERSTICK ARM 3340 - EXCAVATOR 33

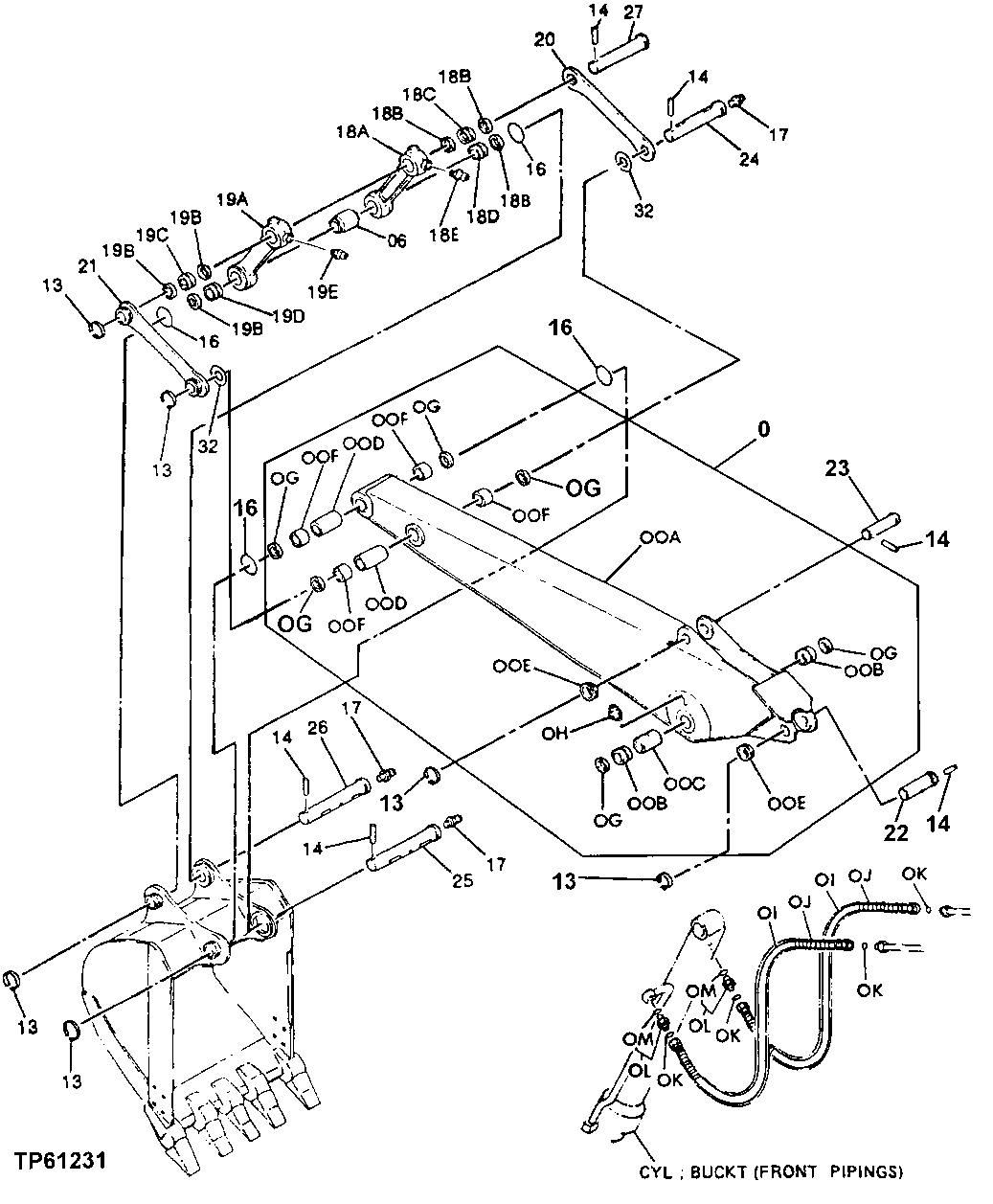

Схема запчастей John Deere 90D - 2 - DIPPERSTICK ARM 3340 - EXCAVATOR 33

Артикул

Название

Примечание

Количество

0

8035674

ARM

(SUB FOR TH108928)

1шт.

0A

ARM

( TH108180 NO LONGER AVAILABLE)

1шт.

0B

4188796

BUSHING

(SUB FOR TH108930)

2шт.

0C

4128972

SPACER

(SUB FOR TH100370)

1шт.

0D

4124575

SPACER

(SUB FOR TH100369)

2шт.

0E

TH108649

BUSHING

2шт.

0F

AT122209

BUSHING

(SUB FOR TH108931)

4шт.

0G

TH100374

SEAL

6шт.

0H

TH100074

LUBRICATION FITTING

2шт.

0I

4187388

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH108963)

2шт.

0J

4053606

HOSE GUARD

(SUB FOR TH101393)

2шт.

0K

T77857

O-RING

(SUB FOR TH108323)

4шт.

0L

4189602

FITTING

(SUB FOR TH108350)

2шт.

0M

4506418

O-RING

(SUB FOR U46489)

1шт.

6

4065885

SPACER

(SUB FOR TH100376)

1шт.

13

4065688

RETAINER

(SUB FOR TH100624)

6шт.

14

4065689

PIN FASTENER

(SUB FOR TH100625)

6шт.

16

TH100380

O-RING

4шт.

17

TH100074

LUBRICATION FITTING

3шт.

18A

8038215

LINK

(SUB FOR TH108932) (RIGHT) (INCLUDES KEYS 18A THROUGH E)

1шт.

18B

TH100374

SEAL

3шт.

18C

4196557

BUSHING

(SUB FOR TH108934)

1шт.

18D

AT122209

BUSHING

(SUB FOR TH108931)

1шт.

18E

TH100074

LUBRICATION FITTING

1шт.

19A

8038216

LINK

(SUB FOR TH108935) (LEFT) (INCLUDES KEYS 19A THROUGH E)

1шт.

19B

TH100374

SEAL

3шт.

19C

4196557

BUSHING

(SUB FOR TH108934)

1шт.

19D

AT122209

BUSHING

(SUB FOR TH108931)

1шт.

19E

TH100074

LUBRICATION FITTING

1шт.

20

4188797

LINK

(SUB FOR TH108937) (RIGHT)

1шт.

21

9725289

LINK

(SUB FOR TH108938) (LEFT)

1шт.

22

TH111904

PIN FASTENER

(SUB FOR TH108926)

1шт.

23

3044367

PIN

(SUB FOR TH108939) (SUB FOR AT134035)

1шт.

24

TH108940

PIN

1шт.

25

AT318059

PIN FASTENER

(SUB FOR 3084540) (ALSO ORDER TH100074) (SUB FOR TH108941)

1шт.

26

P68886

PIN

(ALSO ORDER TH100074) (SUB FOR TH108942)

1шт.

27

P66990

SHEAR PIN

(SUB FOR TH108943)

1шт.

32

4075357

WASHER

(SUB FOR TH108944)

2шт.

Выбрано товаров: 38
