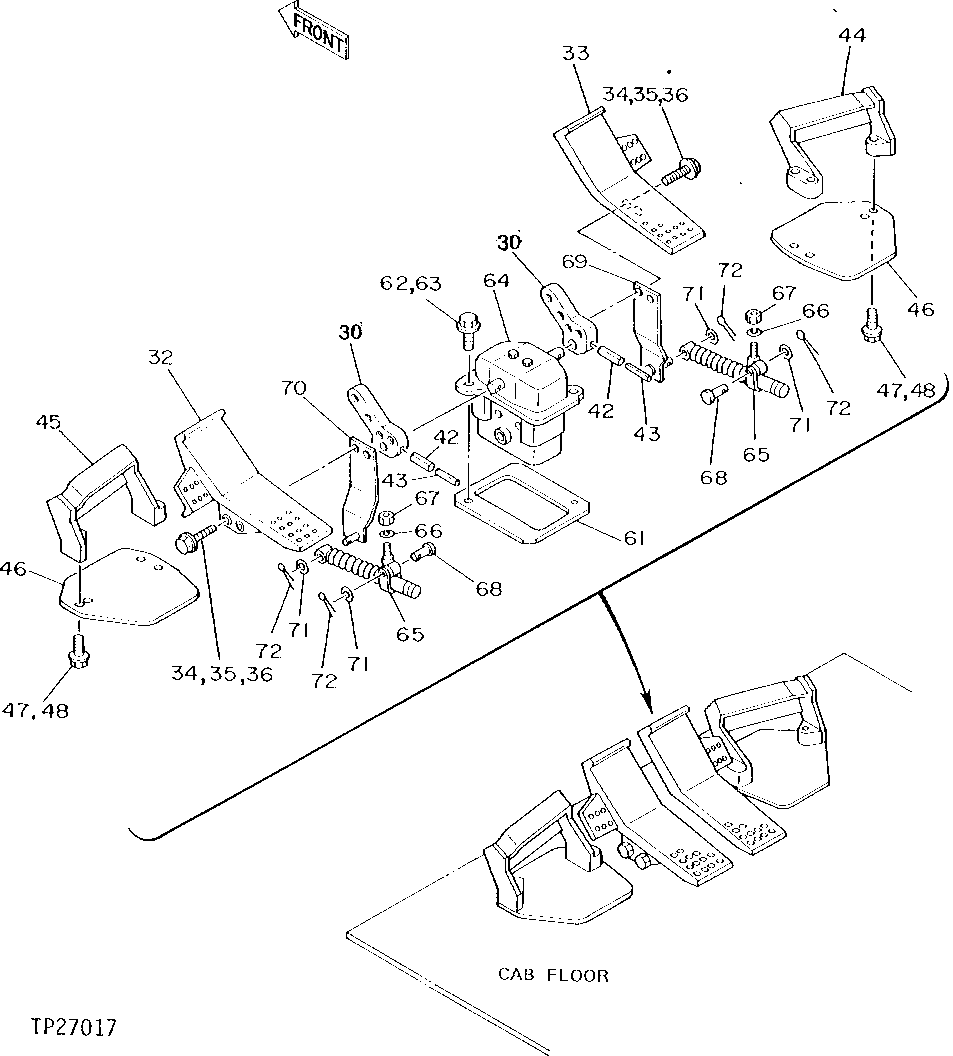

Запчасти John Deere 90D 6 - CONTROL LEVER 3315 - EXCAVATOR 33

30

4204996

BRACKET

(SUB FOR TH108374)

2шт.

32

1024442

PEDAL

(SUB FOR TH108375) (ALSO ORDER (2) 19M7358, (2) 12M7066 AND (2) 24M7028) (SUB FOR AT128309)

1шт.

1024442

PEDAL

(SUB FOR AT128309) (LEFT)

1шт.

33

1024440

PEDAL

(SUB FOR TH108376 OR AT128310) (ALSO ORDER (2) 19M7358, (2) 12M7066 AND (2) 24M7028) (SUB FOR 1012155)

1шт.

1024440

PEDAL

(SUB FOR AT128310) (RIGHT)

1шт.

34

19M7662

CAP SCREW

M10 X 30

4шт.

19M7358

CAP SCREW

M10 X 40

4шт.

35

12M7066

LOCK WASHER

10 MM

4шт.

36

24M7028

WASHER

10.500 X 20 X 2 MM

4шт.

42

34M7062

SPRING PIN

5 X 32 MM, (SUB FOR TH108377)

2шт.

43

34M7124

SPRING PIN

8 X 30 MM, (SUB FOR TH108378) (SUB FOR 34M7065)

2шт.

44

2024630

FOOTREST

(SUB FOR TH108379) (RIGHT)

1шт.

45

2024629

FOOTREST

(SUB FOR TH108380) (LEFT)

1шт.

46

4191971

COVER

(SUB FOR T114446) (SUB FOR TH108381)

2шт.

47

19M7662

CAP SCREW

M10 X 30

6шт.

48

12M7066

LOCK WASHER

10 MM

6шт.

61

4191969

PLATE

(SUB FOR TH108382)

1шт.

62

19M7550

CAP SCREW

M10 X 35

2шт.

63

12M7066

LOCK WASHER

10 MM

2шт.

64

9073404

HYD ACTUATED CONTROL VALVE

(SUB FOR TH108383) (SUB FOR AT128307) (PILOT)

1шт.

65

4204959

TORSIONAL DAMPER

(SUB FOR TH108384)

2шт.

66

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

67

14M7273

NUT

M8

2шт.

68

4044928

PIN

(SUB FOR TH108385)

2шт.

69

9728053

BRACKET

(SUB FOR TH108387)

1шт.

70

9728065

BRACKET

(SUB FOR TH108386)

1шт.

71

24M7055

WASHER

8.400 X 16 X 1.600 MM

4шт.

72

H132922

COTTER PIN

(SUB FOR TH108388 AND L1587C)

4шт.
