Запчасти John Deere 90D 18 - HEAVY DUTY BUCKET TOOTH ASSEMBLY 3302 - EXCAVATOR 33

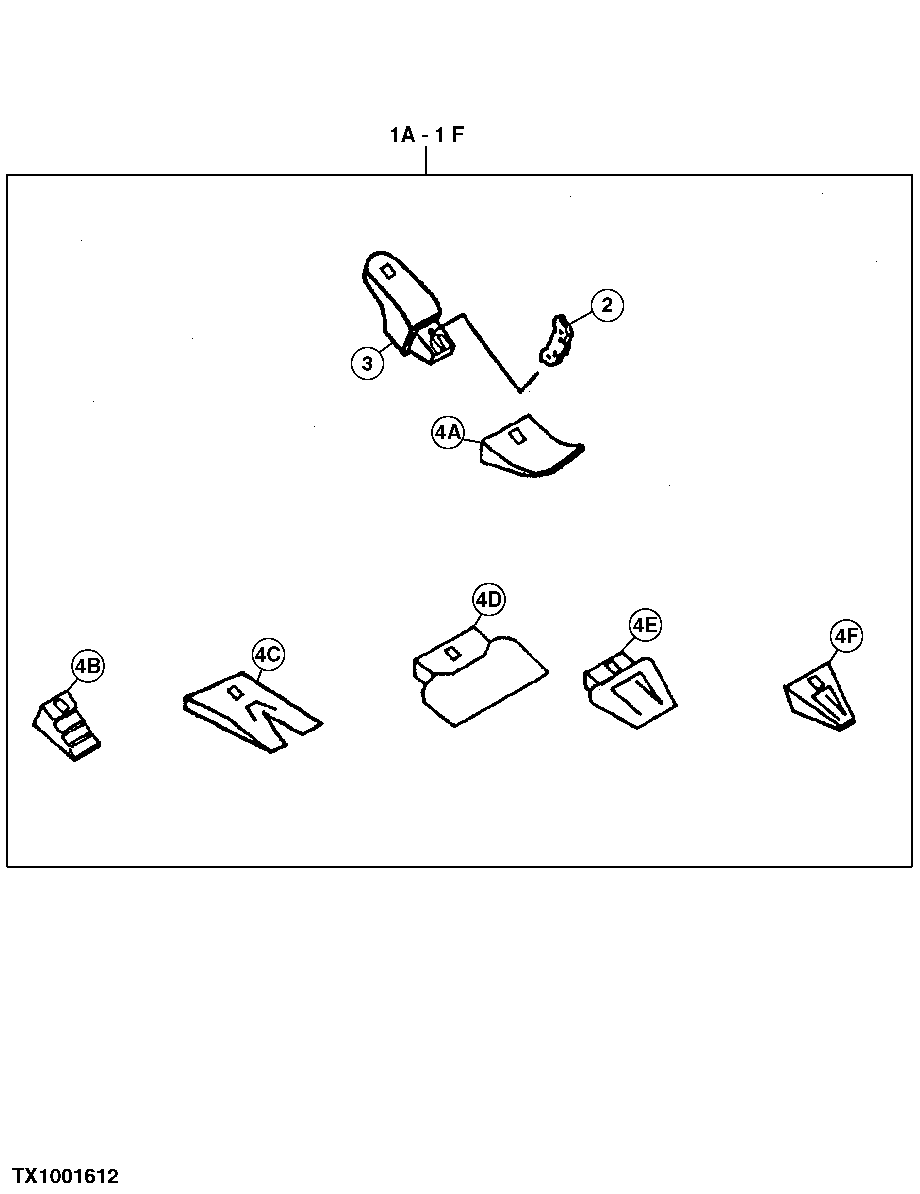

Схема запчастей John Deere 90D - 18 - HEAVY DUTY BUCKET TOOTH ASSEMBLY 3302 - EXCAVATOR 33

Артикул

Название

Примечание

Количество

1A

TOOTH

( AT163528 NLA) (FANGGS 220 TOOTH ASSEMBLY)

1шт.

TOOTH

( AT178738 NLA) (FANGGS 290 TOOTH ASSEMBLY)

1шт.

1B

TOOTH

( AT163532 NLA) (STANDARD 220 TOOTH ASSEMBLY)

1шт.

TOOTH

( AT178739 NLA) (STANDARD 290 TOOTH ASSEMBLY)

1шт.

1C

TOOTH

( AT163536 NLA) (TWIN TIGER 220 TOOTH ASSEMBLY)

1шт.

TOOTH

( AT178741 NLA) (TWIN TIGER 290 TOOTH ASSEMBLY)

1шт.

1D

TOOTH

( AT163535 NLA) (FLARE)

1шт.

1E

TOOTH

( AT163534 NLA) (ABRASION PANEL)

1шт.

1F

TOOTH

( AT163533 NLA) (TIGER 220 TOOTH ASSEMBLY)

1шт.

TOOTH

( AT178740 NLA) (TIGER 290 TOOTH ASSEMBLY)

1шт.

1G

TOOTH

( AT167184 NLA) (ESCO STANDARD TOOTH ASSEMBLY) (NOT ILLUSTRATED)

1шт.

1H

TOOTH

( AT167186 NLA) (ESCO TWIN TIGER TOOTH ASSEMBLY) (NOT ILLUSTRATED)

1шт.

1I

TOOTH

( AT167187 NLA) (ESCO FLARE TOOTH ASSEMBLY) (NOT ILLUSTRATED)

1шт.

1J

TOOTH

( AT167185 NLA) (ESCO TIGER TOOTH ASSEMBLY) (NOT ILLUSTRATED)

1шт.

1K

TOOTH

( AT167188 NLA) (CATERPILLAR REPLACEMENT FANGGS TOOTH ASSEMBLY) (NOT ILLUSTRATED)

1шт.

1L

TOOTH

( AT167189 NLA) (CATERPILLAR REPLACEMENT STANDARD TOOTH ASSEMBLY) (NOT ILLUSTRATED)

1шт.

1M

TOOTH

( AT167191 NLA) (CATERPILLAR REPLACEMENT TWIN TIGER TOOTH ASSEMBLY) (NOT ILLUSTRATED)

1шт.

1N

TOOTH

( AT167190 NLA) (CATERPILLAR REPLACEMENT TIGER TOOTH ASSEMBLY) (NOT ILLUSTRATED)

1шт.

2

TP160L

SPRING PIN

(SUB FOR TP160, THIS APPLICATION) (USE WITH 220 TOOTH ASSEMBLIES)

1шт.

TK290

PIN

(USE WITH 290 TOOTH ASSEMBLIES)

1шт.

EX21LKS

TOOTH RETAINER

(SUB FOR EX21LK) (ESCO) (NOT ILLUSTRATED ON THIS PAGE - SEE ESCO TOOTH PAGE)

1шт.

T9J2308

PIN FASTENER

(CATERPILLAR) (NOT ILLUSTRATED)

1шт.

3

T109X220

BUCKET TOOTH ADAPTER

(USE WITH 220 TOOTH ASSEMBLIES)

1шт.

T127X290

ADAPTER FITTING

(USE WITH 290 TOOTH ASSEMBLIES)

1шт.

EX5849-21

BUCKET TOOTH ADAPTER

(ESCO) (NOT ILLUSTRATED ON THIS PAGE - SEE ESCO TOOTH PAGE)

1шт.

T3G6304

BUCKET TOOTH ADAPTER

(CATERPILLAR) (NOT ILLUSTRATED)

1шт.

4A

TF220

TOOTH

(ALSO ORDER TP160L) (FANGGS 220)

1шт.

TF290

TOOTH

(FANGGS 290)

1шт.

4B

TX220

TOOTH

(ALSO ORDER TP160L) (STANDARD 220)

1шт.

TX290

TOOTH

(STANDARD 290)

1шт.

4C

TX220WT

TOOTH

(ALSO ORDER TP160L) (TWIN TIGER 220)

1шт.

TX290WT

TOOTH

(TWIN TIGER 290)

1шт.

4D

TX220F

TOOTH

(ALSO ORDER TP160L)

1шт.

4E

TX220AP

TOOTH

(ALSO ORDER TP160L)

1шт.

4F

TT220

TOOTH

(ALSO ORDER TP160L) (TIGER 220)

1шт.

TT290

TOOTH

(TIGER 290)

1шт.

4G

EX21SYL

TOOTH

(ESCO STANDARD) (NOT ILLUSTRATED ON THIS PAGE - SEE ESCO TOOTH PAGE)

1шт.

4H

EX21TVIP

TOOTH

(ESCO TWIN TIGER) (NOT ILLUSTRATED ON THIS PAGE - SEE ESCO TOOTH PAGE)

1шт.

4I

EX21S5F

TOOTH

(ESCO FLARE) (NOT ILLUSTRATED ON THIS PAGE - SEE ESCO TOOTH PAGE)

1шт.

4J

EX21VIP

TOOTH

(ESCO TIGER) (NOT ILLUSTRATED ON THIS PAGE - SEE ESCO TOOTH PAGE)

1шт.

4K

TF1U3302D

TOOTH

(CATERPILLAR REPLACMENT FANGGS) (NOT ILLUSTRATED)

1шт.

4L

T1U3302

TOOTH

(CATERPILLAR REPLACEMENT STANDARD) (NOT ILLUSTRATED)

1шт.

4M

TX1U3302WT

TOOTH

(CATERPILLAR REPLACEMENT TWIN TIGER) (NOT ILLUSTRATED)

1шт.

4N

TT1U3302

TOOTH

(CATERPILLAR REPLACEMENT TIGER) (NOT ILLUSTRATED)

1шт.

5

T3G9609

WASHER

(CATERPILLAR REPLACEMENT) (NOT ILLUSTRATED)

1шт.

Выбрано товаров: 45
