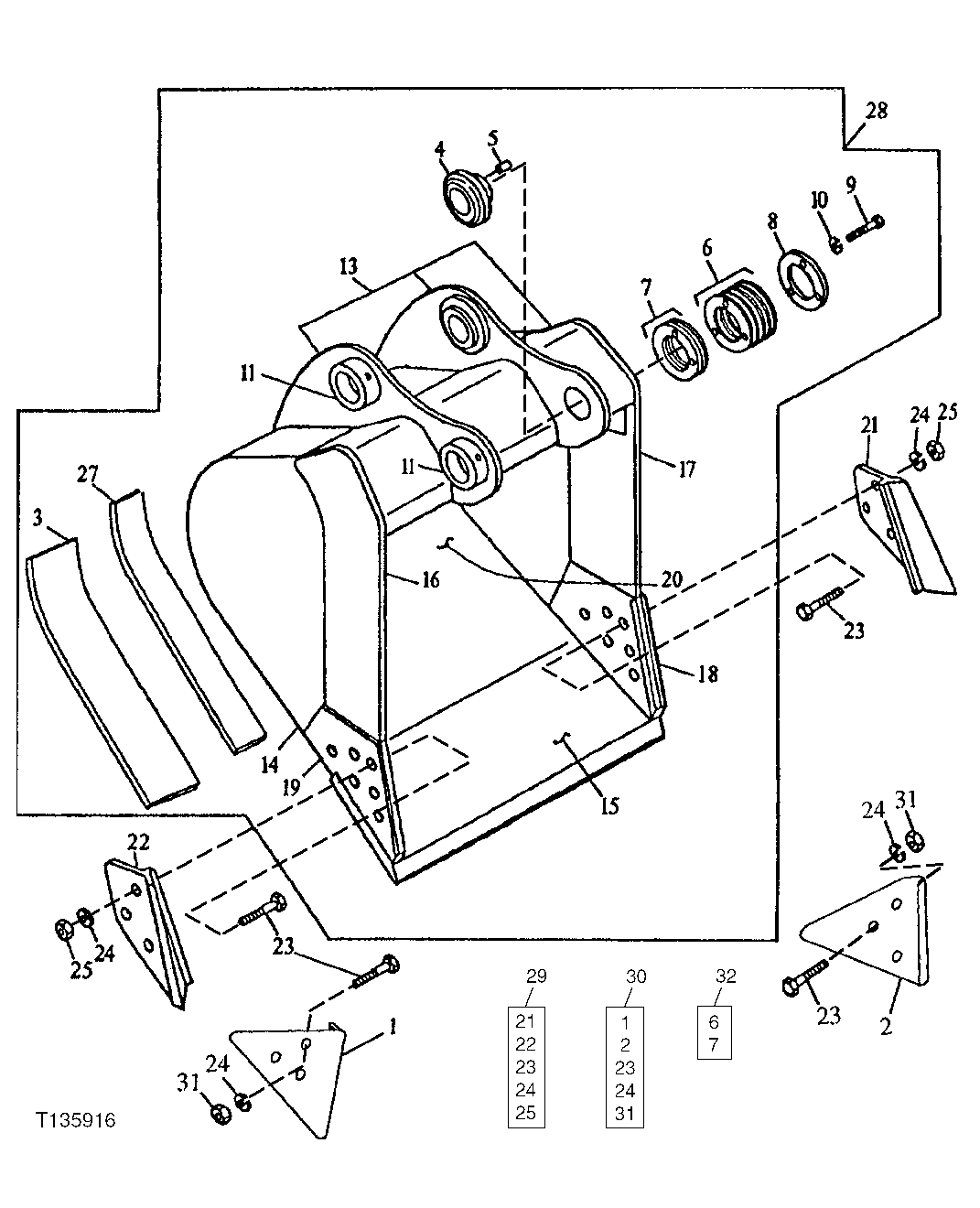

Запчасти John Deere 90D 10 - BUCKET (HEAVY DUTY) (ALSO ORDER BUCKET TOOTH ASSEMBLIES) 3302 - EXCAVATOR 33

1

SHROUD

(B) (RT EDGE PROTECTOR)

1шт.

2

SHROUD

(B) (LT EDGE PROTECTOR)

1шт.

3

306618

BAR

(D) (OUTER WEAR)

2шт.

4

3028363

BUSHING

(SUB FOR TH100346)

1шт.

5

4179109

PIN

(SUB FOR TH103619)

1шт.

6

SOLID SHIM

(C)

7шт.

7

SHIM

(C)

3шт.

8

TH100347

SPACER

1шт.

9

19M7404

CAP SCREW

M14 X 40

3шт.

10

12H317

LOCK WASHER

9/16"

3шт.

11

TH108649

BUSHING

2шт.

13

C607884

PIVOT

(D) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

607048

PLATE

(D) (RIGHT AND LEFT SIDE)

2шт.

15

AT131081

DURA-MAX TM CUTTING EDGE

(CUT TO LENGTH)

1шт.

16

304960

VERTICAL CUTTER

(D) (UPPER RIGHT SIDE CUTTER)

1шт.

17

304961

VERTICAL CUTTER

(D) (UPPER LEFT SIDE CUTTER)

1шт.

18

304968

VERTICAL CUTTER

(D) (LEFT SIDE CUTTER INSERT)

1шт.

19

304967

VERTICAL CUTTER

(D) (RIGHT SIDE CUTTER INSERT)

1шт.

20

604647

MOLDBOARD

(D) (18 INCH BUCKET)

1шт.

604650

MOLDBOARD

(D) (24 INCH BUCKET)

1шт.

604652

MOLDBOARD

(D) (30 INCH BUCKET)

1шт.

604653

MOLDBOARD

(D) (36 INCH BUCKET)

1шт.

21

CUTTING EDGE

(A) (LT SIDE CUTTER)

1шт.

22

CUTTING EDGE

(A) (RT SIDE CUTTER)

1шт.

23

09H1770

BOLT

(A) (B) 7/8" X 2-1/2"

6шт.

24

12H245

LOCK WASHER

(A) (B) 7/8"

6шт.

25

14H1077

NUT

7/8"

6шт.

27

304966

BAR

(D) (INNER WEAR)

1шт.

28

AT163516

EXCAVATOR BUCKET

(SUB FOR AT131012 OR AT131132) WHOLEGOODS (18 INCH - .34 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

AT163518

EXCAVATOR BUCKET

(SUB FOR AT131013 OR AT131133) WHOLEGOODS (24 INCH - .50 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

AT163517

EXCAVATOR BUCKET

(SUB FOR AT131014 OR AT131134) WHOLEGOODS (30 INCH - .64 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

AT163520

EXCAVATOR BUCKET

(SUB FOR AT131015 OR AT131135) WHOLEGOODS (36 INCH - .78 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

29

AT131080

KIT

(WHOLE GOODS) (SIDE CUTTER) (INCLUDES PARTS MARKED (A)) WHOLEGOODS

1шт.

30

AT167874

KIT

(WHOLE GOODS) (EDGE PROTECTOR) (INCLUDES PARTS MARKED (B)) WHOLEGOODS

1шт.

31

14H1044

NUT

(B) 22.225 MM (7/8")

6шт.

32

AT146242

SHIM KIT

(WHOLE GOODS) (INCLUDES PARTS MARKED (C)) WHOLEGOODS

1шт.
