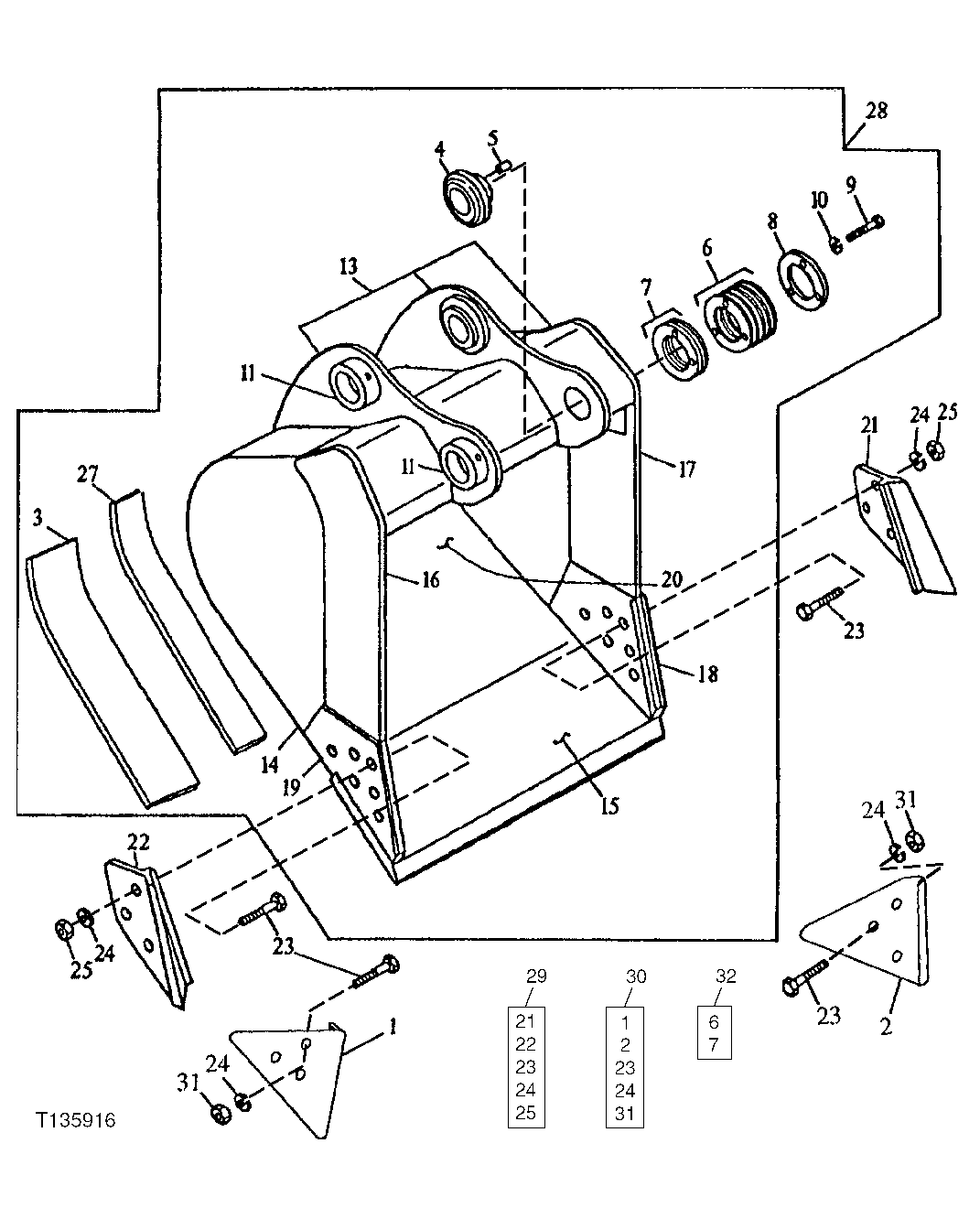

Запчасти John Deere 90D 8 - GENERAL PURPOSE BUCKET (490D) (ALSO ORDER BUCKET TOOTH ASSEMBLIES) (CONTINUED) 3302 - EXCAVATOR 33

21

CUTTING EDGE

(A) (LT SIDE CUTTER)

1шт.

22

CUTTING EDGE

(A) (RT SIDE CUTTER)

1шт.

23

09H1770

BOLT

(A) (B) 7/8" X 2-1/2"

6шт.

24

12H245

LOCK WASHER

(A) (B) 7/8"

6шт.

25

14H1077

NUT

7/8"

6шт.

27

304966

BAR

(D) (INNER WEAR)

1шт.

28

AT163507

EXCAVATOR BUCKET

(SUB FOR AT131006 OR AT131126) WHOLEGOODS (18 INCH - .34 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

AT163508

EXCAVATOR BUCKET

(SUB FOR AT131007 OR AT131127) WHOLEGOODS (24 INCH - .50 CUBIC YARD) (AVAILBALE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

AT163509

EXCAVATOR BUCKET

(SUB FOR AT131008 OR AT131128) WHOLEGOODS (30 INCH - .64 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

AT163510

EXCAVATOR BUCKET

(SUB FOR AT131009 OR AT131129) WHOLEGOODS (36 INCH - .78 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

AT163512

EXCAVATOR BUCKET

(SUB FOR AT131010 OR AT131130) WHOLEGOODS (42 INCH - .92 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

AT163514

EXCAVATOR BUCKET

(SUB FOR AT131011 OR AT131131) WHOLEGOODS (48 INCH - 1.06 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

29

AT131080

KIT

(WHOLE GOODS) (SIDE CUTTER) (INCLUDES PARTS MARKED (A)) WHOLEGOODS

1шт.

30

AT167874

KIT

(WHOLE GOODS) (EDGE PROTECTOR) (INCLUDES PARTS MARKED (B)) WHOLEGOODS

1шт.

31

14H1044

NUT

(B) 22.225 MM

6шт.

32

AT146242

SHIM KIT

(WHOLE GOODS) (INCLUDES PARTS MARKED (C)) WHOLEGOODS

1шт.
