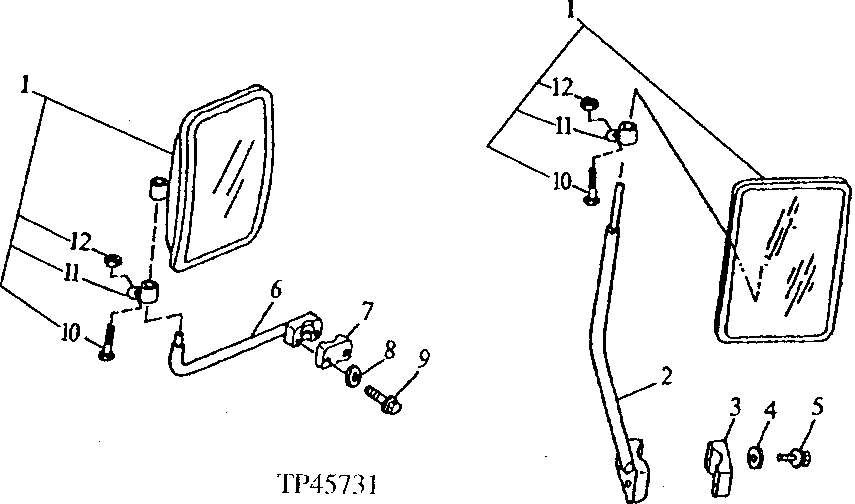

Запчасти John Deere 90D 4 - REAR VIEW MIRROR 2002 - SAFETY, CONVENIENCE AND MISCELLANEOUS 20

1

4317906

REAR VIEW MIRROR

(SUB FOR TH104119 AND 4165676 AND 4335342) ( TH104119 NO LONGER AVAILABLE)

1шт.

2

8056640

ARM

(SUB FOR AT161067) (RIGHT HAND MIRROR)

1шт.

3

4113705

CLAMP

(SUB FOR AT128469)

1шт.

4

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

5

19M7922

CAP SCREW

M8 X 40

2шт.

6

ARM

(LEFT HAND MIRROR) ( AT161068 NO LONGER AVAILABLE) (SUB AT186649 ARM AND AT185207 MIRROR)

1шт.

8076201

ARM

(SUB FOR AT186649) (LEFT HAND MIRROR)

1шт.

7

AT219494

CLAMP

(SUB FOR AT131743)

1шт.

8

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

9

19M8359

CAP SCREW

M8 X 45

2шт.

10

03M7193

BOLT

M10 X 35

1шт.

11

CLAMP

(NOT AVAILABLE FOR SERVICE)

1шт.

12

14M7400

LOCK NUT

M10

1шт.
