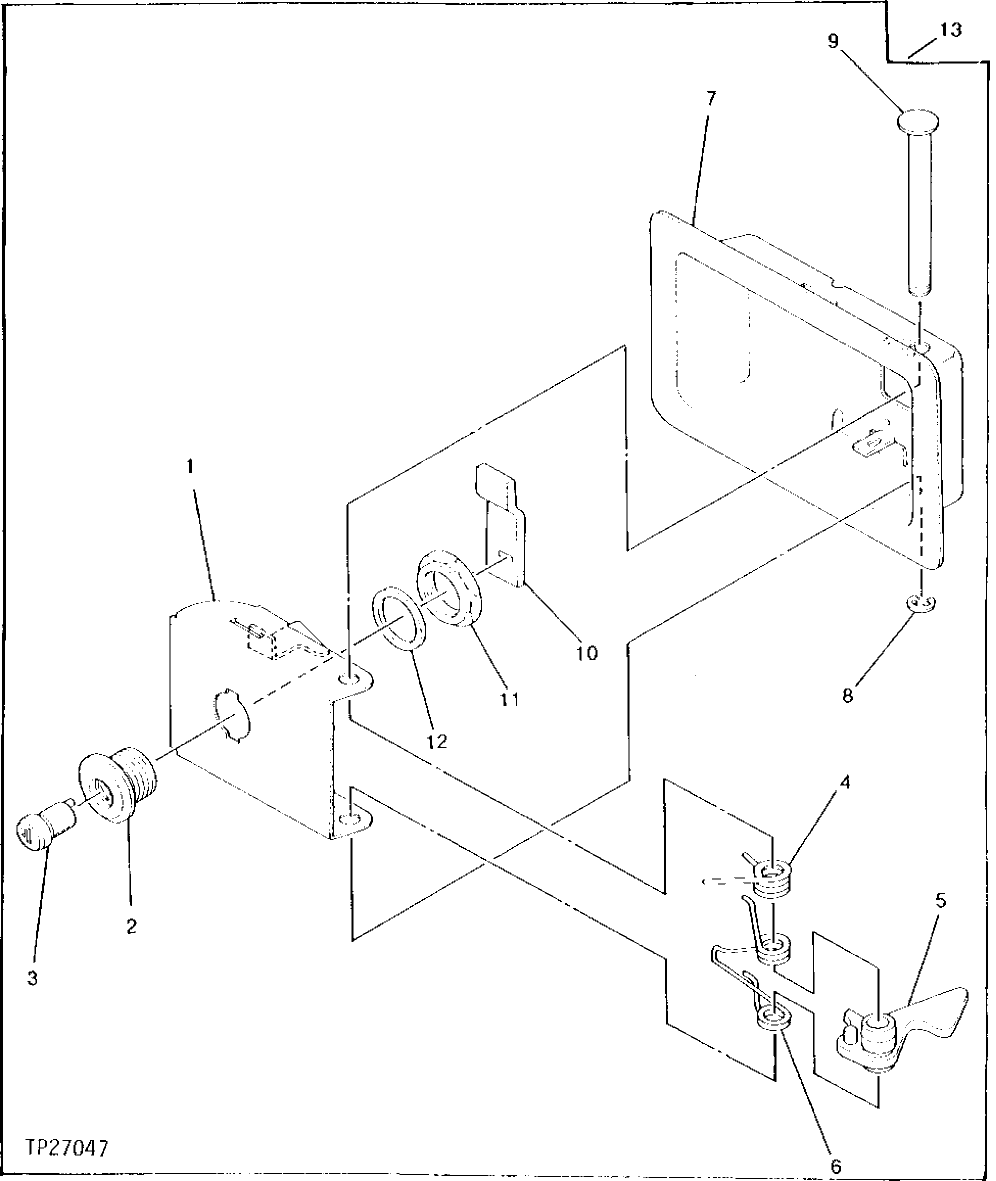

Запчасти John Deere 90D 16 - SERVICE DOOR LATCH 1910 - SHEET METAL AND STYLING 19

1

8024464

LATCH

(SUB FOR TH102228)

1шт.

2

4134325

LOCK

(SUB FOR TH110129) (SUB FOR TH102236)

1шт.

3

4361411

LOCK

(SUB FOR TH110128) (SUB FOR AT206102) (USES H800 KEY)

1шт.

4158653

KEY

(SUB FOR TH101605) (NOT ILLUSTRATED) (600) (USE WITH TH110128 LOCK)

1шт.

AT194969

KEY

(SUB FOR AT147803) (NOT ILLUSTRATED) (H800)

1шт.

4

4355975

TORSION SPRING

(SUB FOR TH102234, 4134321)

1шт.

5

LEVER

( TH102229 NO LONGER AVAILABLE)

1шт.

6

4355973

SPRING

(SUB FOR TH102233, THIS APPLICATION) (SUB FOR AT173242)

1шт.

7

8024490

COVER

(SUB FOR TH102241)

1шт.

8

CH11490

RING

(SUB FOR TH102231)

1шт.

9

4355972

PIN FASTENER

(SUB FOR TH102230)

1шт.

10

4355981

STRAP

(SUB FOR TH102232, 4134331)

1шт.

11

4355980

NUT

(SUB FOR TH102238, 4134323)

1шт.

12

4355979

RING

(SUB FOR TH102237, 4134322)

1шт.

13

LOCK

(SUB AT214010) ( AT115741 NO LONGER AVAILABLE)

1шт.
