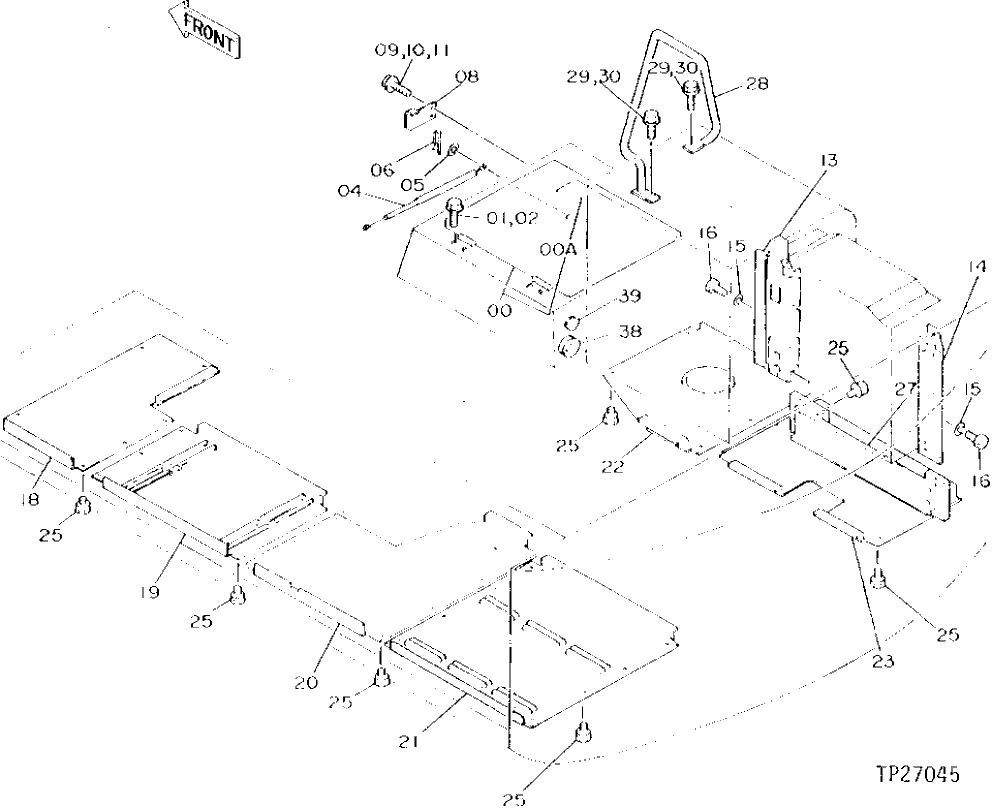

Запчасти John Deere 90D 12 - BOTTOM COVER AND HANDHOLD 1910 - SHEET METAL AND STYLING 19

0

7017630

COVER

(SUB FOR TH108775)

1шт.

0A

LOCK

(SUB AT214010) (SUB FOR TH110898) ( AT115741 NO LONGER AVAILABLE)

1шт.

1

12M7066

LOCK WASHER

10 MM

4шт.

2

19M7938

CAP SCREW

M10 X 20

4шт.

4

4196560

GAS OPERATED CYLINDER

(SUB FOR TH108776)

1шт.

5

24M7055

WASHER

8.400 X 16 X 1.600 MM

2шт.

6

H132922

COTTER PIN

(SUB FOR TH108388 AND L1587C)

2шт.

8

4187846

BRACKET

(SUB FOR TH108777)

1шт.

9

24M7055

WASHER

8.400 X 16 X 1.600 MM

2шт.

10

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

11

19M7881

SCREW

M8 X 20

2шт.

13

8038835

COVER

(SUB FOR TH108778)

1шт.

14

8038836

COVER

(SUB FOR TH108779)

1шт.

15

12M7066

LOCK WASHER

10 MM

8шт.

16

19M8324

CAP SCREW

M10 X 16

8шт.

18

3035538

COVER

(SUB FOR TH108780)

1шт.

19

3038062

COVER

(SUB FOR TH108781)

1шт.

20

3038176

COVER

(SUB FOR TH108782)

1шт.

21

3038709

COVER

(SUB FOR TH108783)

1шт.

22

3035267

COVER

(SUB FOR TH108784)

1шт.

23

3038710

COVER

(SUB FOR TH108785)

1шт.

25

19M8011

CAP SCREW

M12 X 30

41шт.

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

41шт.

24H1748

WASHER

1/2" X 1-1/4" X 0.105"

41шт.

27

8038837

COVER

(SUB FOR TH108786)

1шт.

28

8039790

SUPPORT

(SUB FOR TH108787) (SUB FOR TH109685)

1шт.

29

12H301

LOCK WASHER

1/2"

2шт.

30

19M7872

CAP SCREW

M12 X 25

2шт.

38

4146559

GROMMET

(SUB FOR TH108788)

1шт.

39

P45476

GROMMET

(SUB FOR TH108789 OR 94-2804)

1шт.
