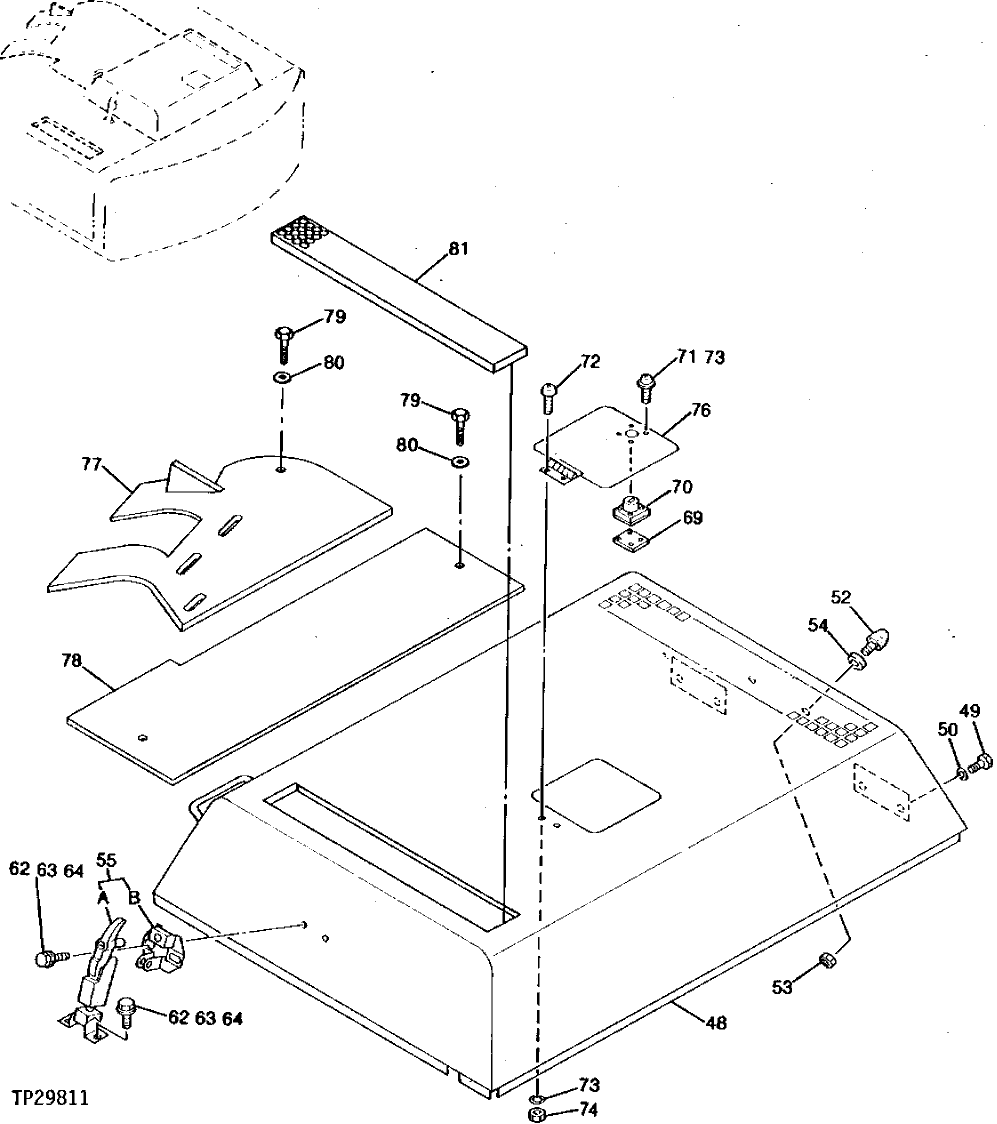

Запчасти John Deere 90D 8 - SERVICE DOORS, COVERS AND HANDHOLDS 1910 - SHEET METAL AND STYLING 19

48

6008553

COVER

(SUB FOR TH108768)

1шт.

49

19M7872

CAP SCREW

M12 X 25

4шт.

50

24M7047

WASHER

13 X 24 X 2.500 MM

4шт.

52

4204586

BUMPER

(SUB FOR 487195) (ALSO ORDER (2) 14M7274)

2шт.

53

14M7274

NUT

(SUB FOR TH104196)

2шт.

54

4152535

SPACER

(SUB FOR TH101262)

2шт.

55

4361455

CATCH

(SUB FOR TH108769)

1шт.

AT194969

KEY

(SUB FOR AT147803) (H800) (NOT ILLUSTRATED)

1шт.

55A

CATCH

(SUB TH108769)

1шт.

55B

3021131

ANCHOR

(SUB FOR TH102247)

1шт.

62

19M7932

CAP SCREW

M8 X 16

4шт.

63

24M7055

WASHER

8.400 X 16 X 1.600 MM

4шт.

64

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

4шт.

69

4209492

PLATE

(SUB FOR TH109695)

1шт.

70

4361601

LOCK

(SUB FOR TH108982) (SUB FOR AT176636) (USES H800 KEY)

1шт.

AT194969

KEY

(SUB FOR AT147803) (H800) (NOT ILLUSTRATED)

1шт.

71

21M7022

SCREW

M5 X 20

4шт.

72

21M7278

SCREW

M5 X 10

2шт.

73

12M7064

LOCK WASHER

5 MM

6шт.

74

14M7297

NUT

M5

2шт.

76

8039789

COVER

(SUB FOR TH109694)

1шт.

77

GUARD

(SUB 84272)

1шт.

84272

GUARD

(B)

1шт.

78

PANEL

(SUB DY1348)

1шт.

DY1348

PANEL

(B)

1шт.

79

19H2633

CAP SCREW

3/8" X 1-1/2"

4шт.

80

24H1219

WASHER

7/16" X 1" X 0.083"

4шт.

81

DY2201

COVER

(WELD INTO LOCATION)

1шт.
