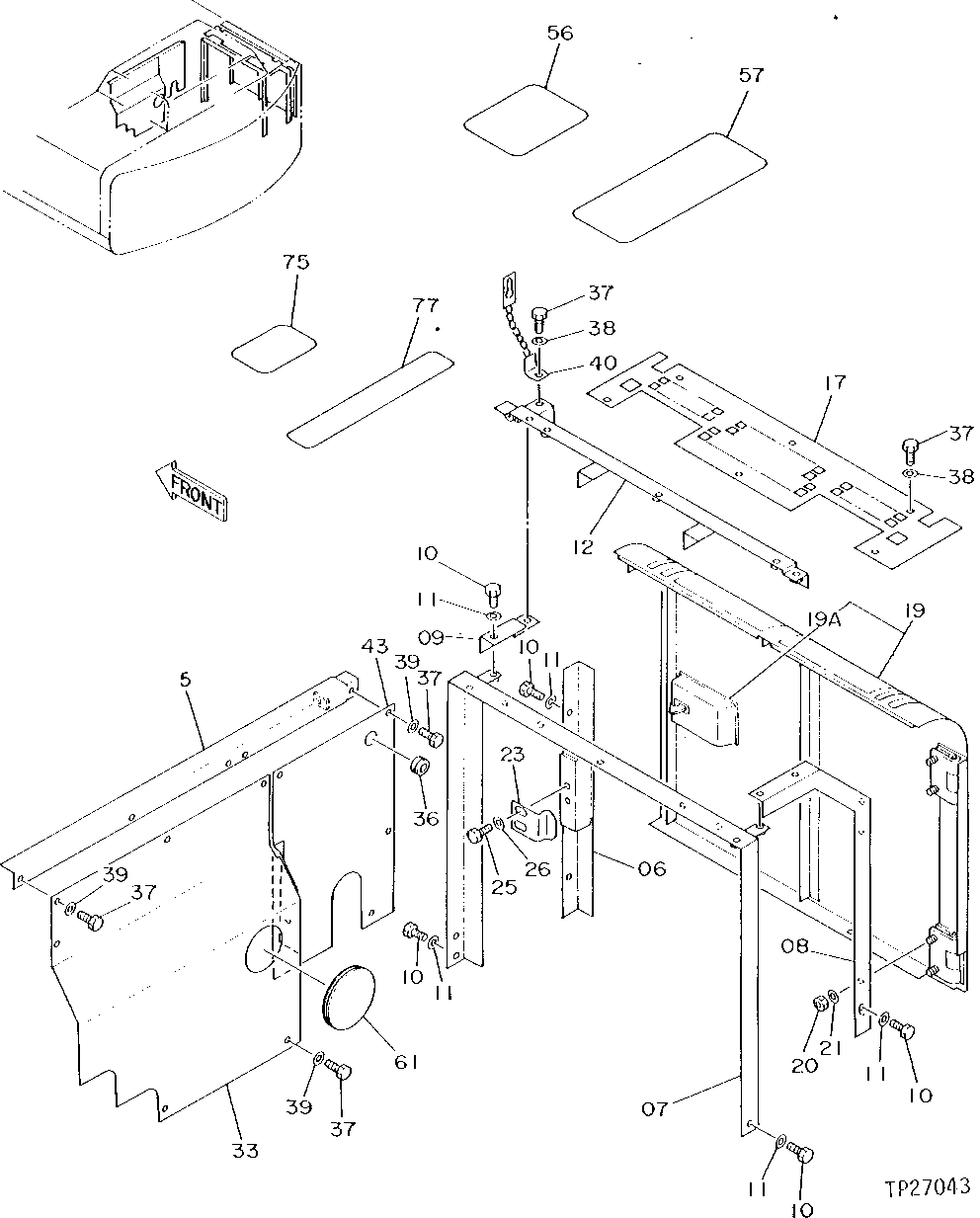

Запчасти John Deere 90D 4 - SERVICE DOORS, COVERS AND HANDHOLDS 1910 - SHEET METAL AND STYLING 19

5

9727998

SUPPORT

(SUB FOR TH108751)

1шт.

6

9728012

SUPPORT

(SUB FOR TH108752)

1шт.

7

7018388

SUPPORT

(SUB FOR TH108753)

1шт.

8

3038707

SUPPORT

(SUB FOR TH108754)

1шт.

9

9728000

SUPPORT

(SUB FOR TH108755)

1шт.

10

19M7872

CAP SCREW

M12 X 25

11шт.

11

24M7047

WASHER

13 X 24 X 2.500 MM

11шт.

12

9727999

SUPPORT

(SUB FOR TH108756)

1шт.

17

4204697

COVER

(SUB FOR TH108758)

1шт.

19

7018389

DOOR

(SUB FOR TH108760)

1шт.

19A

LOCK

(SUB AT214010) ( AT115741 NO LONGER AVALABLE)

1шт.

20

14M7275

NUT

M12

4шт.

21

24M7047

WASHER

13 X 24 X 2.500 MM

4шт.

23

4204764

STOP

(SUB FOR TH108761)

1шт.

25

19M7872

CAP SCREW

M12 X 25

2шт.

26

24M7047

WASHER

13 X 24 X 2.500 MM

2шт.

33

8038833

COVER

(SUB FOR TH108763)

1шт.

36

94-2805

GROMMET

(SUB FOR TH110221)

1шт.

37

19M7872

CAP SCREW

M12 X 25

18шт.

38

24M7047

WASHER

13 X 24 X 2.500 MM

7шт.

39

24H1748

WASHER

1/2" X 1-1/4" X 0.105"

11шт.

40

9725452

LOCK

(SUB FOR TH108765)

1шт.

43

8038834

COVER

(SUB FOR TH108766)

1шт.

56

4121128

MAT

(SUB FOR TH106654)

1шт.

57

H21259

MAT

11шт.

61

4093813

PLUG

(SUB FOR TH110125)

1шт.

75

4210501

TAPE

(SUB FOR TH110223)

1шт.

77

H21259

MAT

(SUB FOR TH110224)

1шт.
