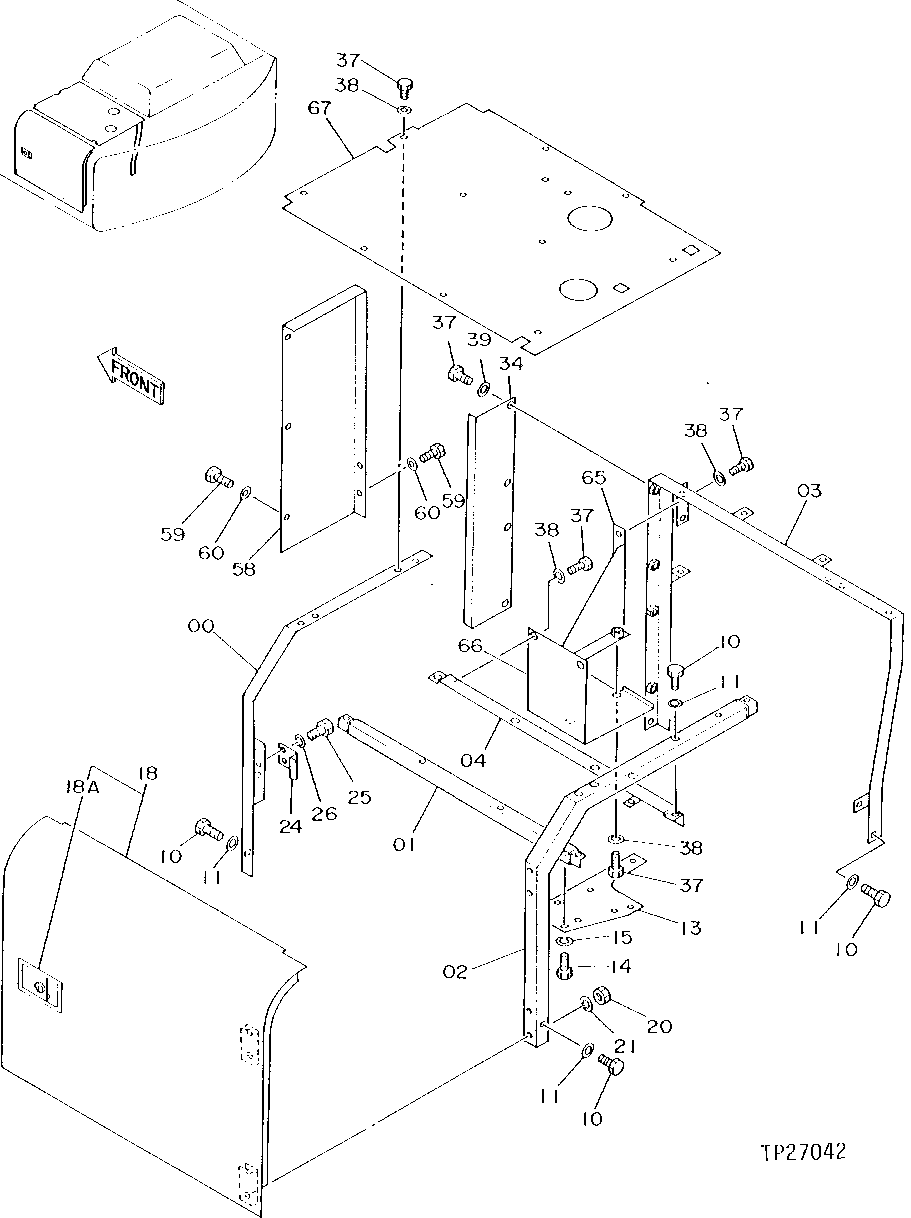

Запчасти John Deere 90D 2 - SERVICE DOORS, COVERS AND HANDHOLDS 1910 - SHEET METAL AND STYLING 19

0

8038831

SUPPORT

(SUB FOR TH108746)

1шт.

1

9727996

SUPPORT

(SUB FOR TH108747)

1шт.

2

8038832

SUPPORT

(SUB FOR TH108748)

1шт.

3

7018387

SUPPORT

(SUB FOR TH108749)

1шт.

4

9727997

SUPPORT

(SUB FOR TH108750)

1шт.

10

19M7872

CAP SCREW

M12 X 25

11шт.

11

24M7047

WASHER

13 X 24 X 2.500 MM

11шт.

13

4204698

PLATE

(SUB FOR TH108757)

1шт.

14

19M7938

CAP SCREW

M10 X 20

4шт.

15

12M7066

LOCK WASHER

10 MM

4шт.

18

6007860

DOOR

(SUB FOR TH108759)

1шт.

18A

LOCK

(SUB AT214010) ( AT115741 NO LONGER AVAILABLE)

1шт.

20

14M7275

NUT

M12

4шт.

21

24M7047

WASHER

13 X 24 X 2.500 MM

4шт.

24

4188492

STOP

(SUB FOR TH108762)

1шт.

25

19M7872

CAP SCREW

M12 X 25

2шт.

26

24M7047

WASHER

13 X 24 X 2.500 MM

2шт.

34

4189740

COVER

(SUB FOR TH108764)

1шт.

37

19M7872

CAP SCREW

M12 X 25

19шт.

38

24M7047

WASHER

13 X 24 X 2.500 MM

15шт.

39

24H1748

WASHER

1/2" X 1-1/4" X 0.105"

4шт.

58

4204023

COVER

(SUB FOR TH108770)

1шт.

59

19M7872

CAP SCREW

M12 X 25

5шт.

60

24H1748

WASHER

1/2" X 1-1/4" X 0.105"

5шт.

65

8039221

COVER

(SUB FOR TH108771)

1шт.

66

3039071

COVER

(SUB FOR TH108772)

1шт.

67

8039235

COVER

(SUB FOR TH108773)

1шт.
