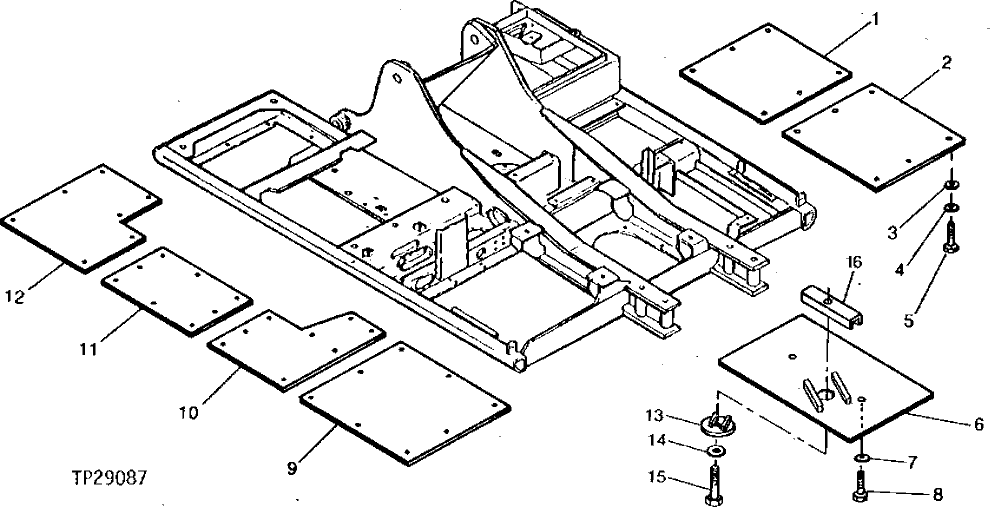

Запчасти John Deere 90D 1 - BOTTOM COVERS 1910 - SHEET METAL AND STYLING 19

1

84268

PLATE

(B) RIGHT SIDE FRONT

1шт.

2

84269

PLATE

(B) RIGHT SIDE REAR

1шт.

3

24H1748

WASHER

1/2" X 1-1/4" X 0.105"

41шт.

4

12H301

LOCK WASHER

1/2"

41шт.

5

19M8011

CAP SCREW

M12 X 30

41шт.

6

84010

PLATE

(B) CENTER

1шт.

7

12H236

LOCK WASHER

3/4"

2шт.

8

19H2716

CAP SCREW

3/4" X 1-1/2"

2шт.

9

84270

PLATE

(B) LEFT SIDE REAR

1шт.

10

84266

PLATE

(B) LEFT SIDE CENTER

1шт.

11

84271

PLATE

(B) LEFT SIDE CENTER

1шт.

12

84267

PLATE

(B) LEFT SIDE FRONT

1шт.

13

COVER

(SUB DY1331)

1шт.

DY1331

COVER

(B)

1шт.

14

12H301

LOCK WASHER

1/2"

1шт.

15

19H2993

CAP SCREW

HS, SAE 8, 1/2" X 1-1/2"

1шт.

16

BAR

(SUB DY1335)

1шт.

DY1335

BAR

(B)

1шт.
