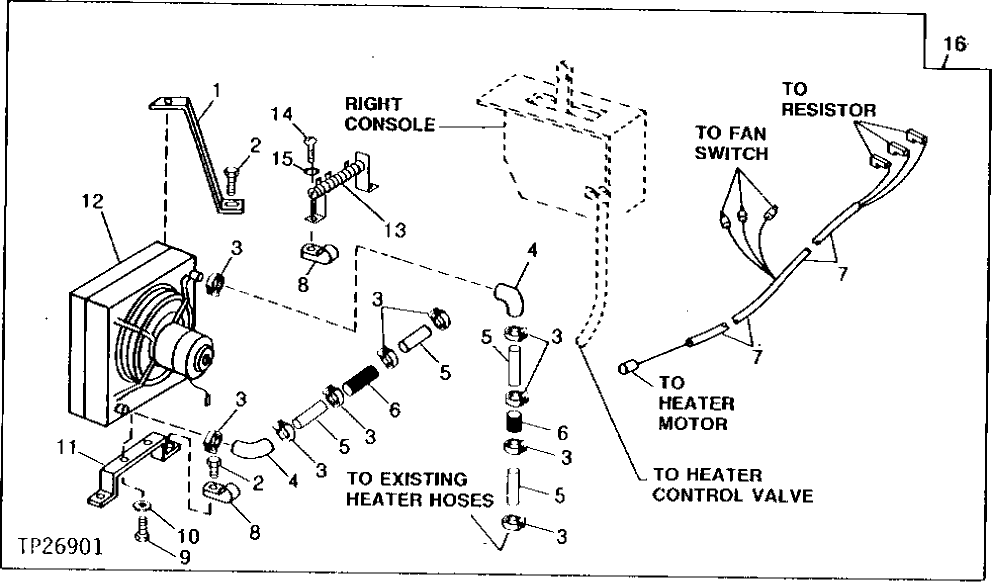

Запчасти John Deere 90D 7 - HEATER MOUNTING BRACKETS, HOSE CONNECTORS AND WIRING HARNESS 1830 - OPERATORS STATION 18

1

T108009

BRACE

1шт.

2

19M7784

SCREW

M10 X 20

3шт.

3

WZ2141223

HOSE CLAMP

(SUB FOR AR21837, THIS APPLICATION) (SUB FOR AA34965)

10шт.

4

T22942

HOSE

2шт.

5

N155214

HOSE FITTING

4шт.

6

HOSE

(SUB FOR T78162) 2-1/2 FT. (MAKE FROM TY22328 BULK MATERIAL, CUT TO LENGTH)

2шт.

7

AT114761

WIRING HARNESS

1шт.

8

T19935

CLAMP

2шт.

9

19H1227

CAP SCREW

1/4" X 1/2"

3шт.

10

24H1287

WASHER

9/32" X 5/8" X 0.065"

3шт.

11

T108010

ANGLE

1шт.

12

AT112808

HEATER

1шт.

13

AT56762

RESISTOR

1шт.

14

37H43

SCREW

2шт.

15

24H1283

WASHER

7/32" X 1/2" X 0.049"

2шт.

16

TH108111

HEATER

WHOLEGOODS

1шт.
