1 - SEAT BELT

Запчасти John Deere 90D 1 - SEAT BELT 1821 - OPERATORS STATION 18

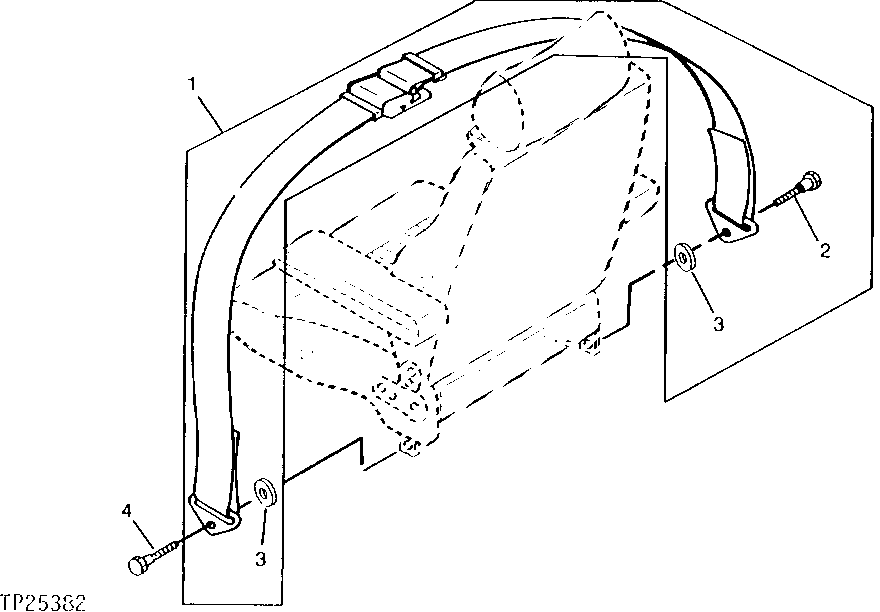

Схема запчастей John Deere 90D - 1 - SEAT BELT 1821 - OPERATORS STATION 18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AT37833

SEAT BELT

1шт.

2

R41778

BOLT

11.125 X 31.750 MM (7/16" X 1-1/4") (SUB T103486)

2шт.

3

T105740

WASHER

11.400 X 25.400 X 2.286 MM (0.449" X 1" X 0.090") (SUB AT37833) (ALSO ORDER T103486)

1шт.

4

T103486

BOLT

11.125 X 38.100 MM (7/16" X 1-1/2") LEFT END OF SEAT BELT

1шт.
