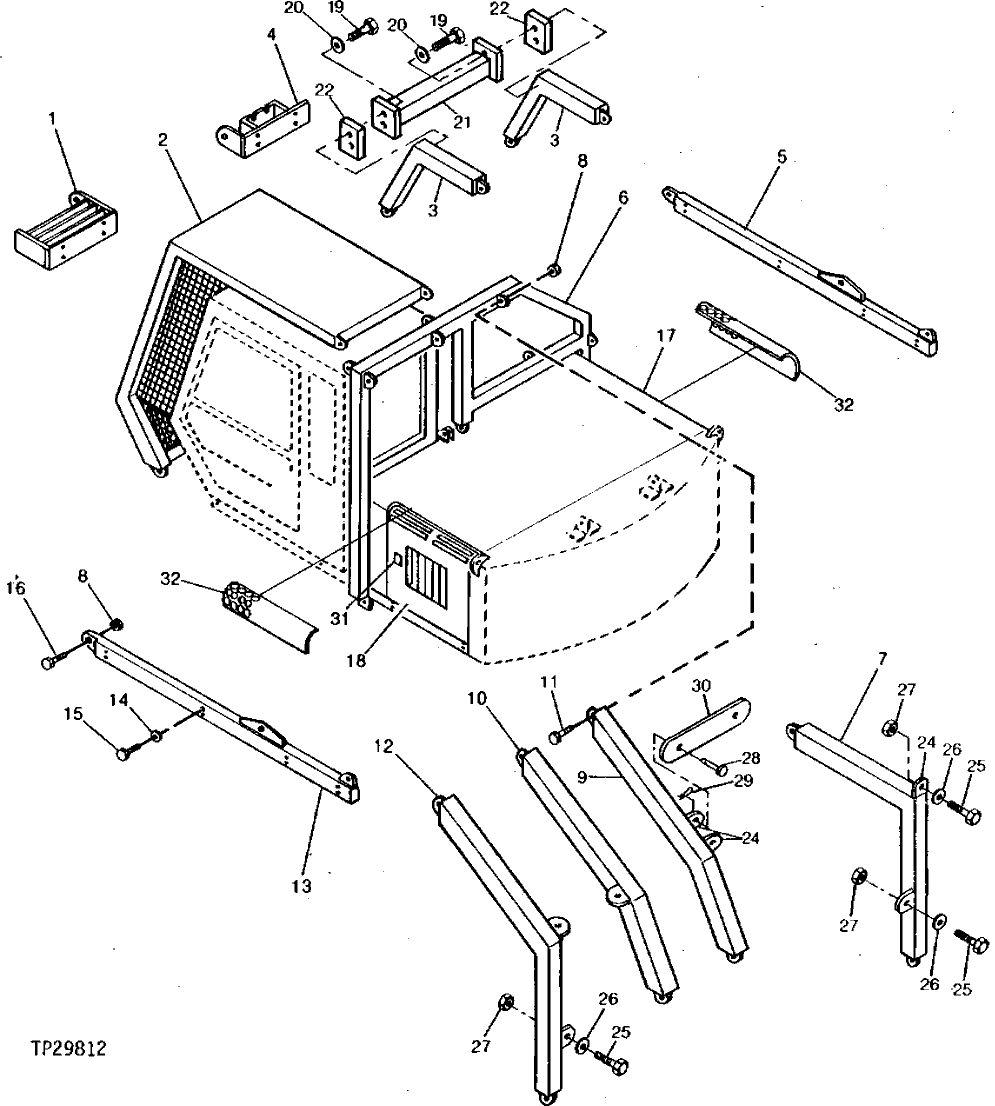

Запчасти John Deere 90D 2 - FALLING OBJECT PROTECTION SYSTEM 1811 - OPERATORS STATION 18

1

84205

SUPPORT

(B) FRONT

1шт.

2

84077

GUARD

(B) CAB

1шт.

3

84258

SUPPORT

(B) FRONT RIGHT

2шт.

4

84200

SUPPORT

(B) FRONT RIGHT

1шт.

5

84193

RAIL

(B) RIGHT, SIDE

1шт.

6

84064

SUPPORT

(B) CROSS MEMBER

1шт.

7

84068

SUPPORT

(B) RIGHT

1шт.

8

T25879

NUT

19шт.

9

84254

SUPPORT

(B) RIGHT

1шт.

10

84079

SUPPORT

(B) RIGHT

1шт.

11

19H1471

CAP SCREW

3/4" X 3-1/2"

2шт.

12

84065

SUPPORT

(B) LEFT

1шт.

13

84202

RAIL

(B) LEFT, SIDE

1шт.

14

12H301

LOCK WASHER

1/2"

22шт.

15

19H3472

CAP SCREW

5/8" X 9-3/4"

22шт.

16

19H1405

CAP SCREW

3/4" X 2-1/2"

17шт.

17

84040

DOOR

(B) RIGHT

1шт.

18

84112

DOOR

(B) LEFT

1шт.

19

19H444

CAP SCREW

1/2" X 1"

4шт.

20

24H1211

WASHER

9/16" X 1-3/8" X 0.105"

4шт.

21

DY1350

BAR

(B)

1шт.

22

DY1353

SWAY BLOCK

(B) (INSTALL BY WELDING)

2шт.

23

127430

EYELET

(B) (INSTALL BY WELDING)

2шт.

24

84028

EYELET

(B) (INSTALL BY WELDING)

3шт.

25

19H1388

CAP SCREW

3/4" X 2-1/4"

3шт.

26

24H1161

WASHER

13/16" X 1-15/32" X 0.134"

3шт.

27

T25879

NUT

3/4"

3шт.

28

A15178

PIN

(B)

1шт.

29

J16931

PIN

(B) (SUB FOR B32630)

1шт.

30

107037

BAR

(B)

1шт.

31

LOCK

(SUB AT214010) ( AT115741 NO LONGER AVAILABLE)

1шт.

32

DY2202

COVER

(WELD INTO LOCATION)

2шт.
