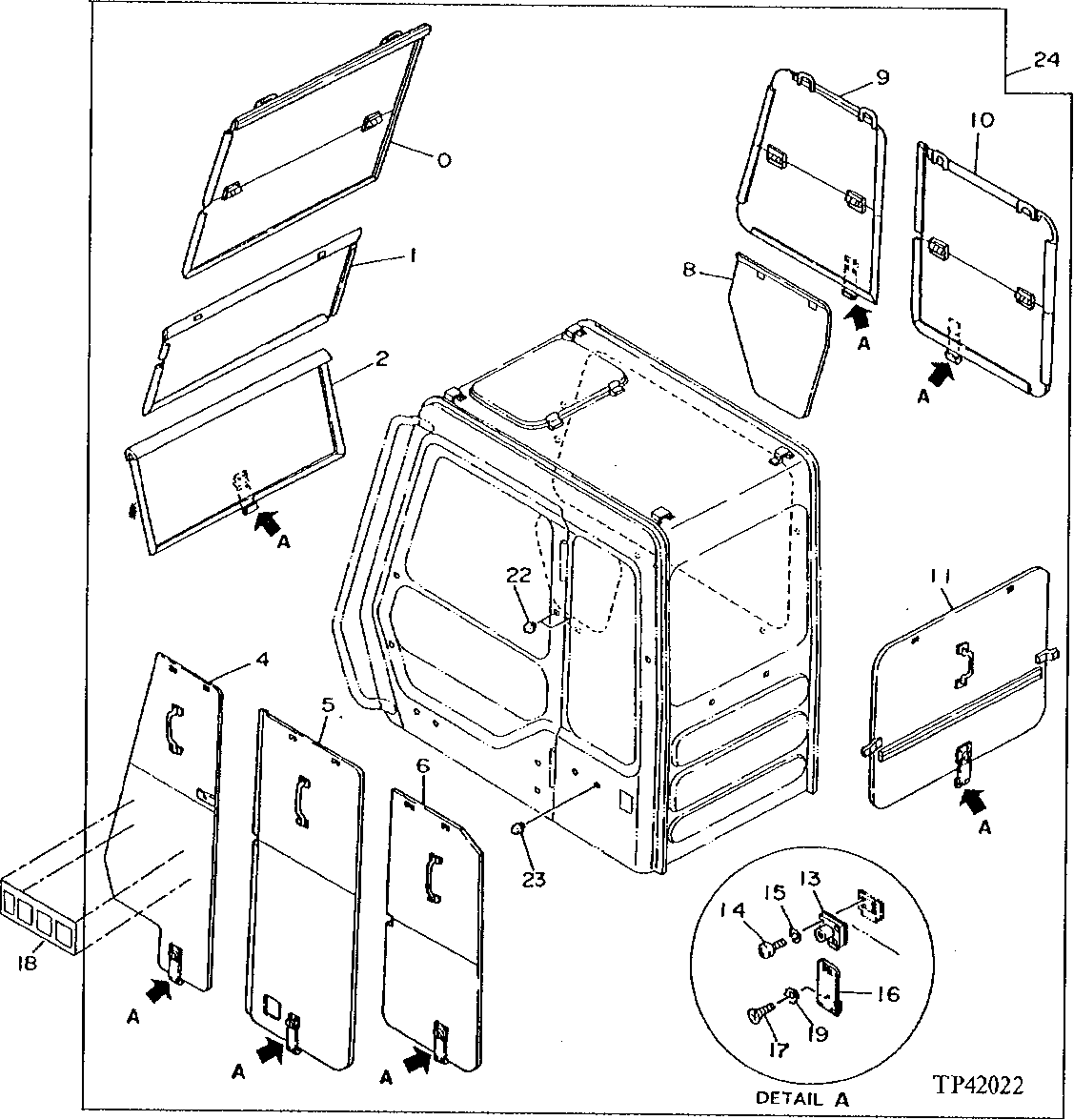

Запчасти John Deere 90D 24 - VANDAL PROTECTION 1810 - OPERATORS STATION 18

0

8039459

COVER

(SUB FOR TH108972)

1шт.

1

8039460

COVER

(SUB FOR TH108973)

1шт.

2

8041243

COVER

(SUB FOR TH111014)

1шт.

4

8039751

COVER

(SUB FOR TH108975)

1шт.

5

8039752

COVER

(SUB FOR TH108976)

1шт.

6

8039464

COVER

(SUB FOR TH108977)

1шт.

8

3039238

COVER

(SUB FOR TH108978)

1шт.

9

8040946

COVER

(SUB FOR TH111513)

1шт.

10

8040947

COVER

(SUB FOR TH111514)

1шт.

11

8039467

COVER

(SUB FOR TH108981)

1шт.

13

4361601

LOCK

(SUB FOR TH108982, THIS APPLICATION) (SUB FOR AT176636) (USES H800 KEY)

7шт.

14

21M7022

SCREW

M5 X 20

28шт.

15

12M7064

LOCK WASHER

5 MM

28шт.

16

TH108983

HINGE

7шт.

17

21M7249

SCREW

M5 X 10

14шт.

18

2025748

LABEL

(SUB FOR AT115040)

1шт.

19

T205218

WASHER

(SUB FOR TH111908, 4107762)

14шт.

20

AT194969

KEY

(SUB FOR TH108552 AND AT147803) (VANDAL COVER LOCK) (H800) (NOT ILLUSTRATED)

2шт.

22

4224012

BUMPER

(SUB FOR AT128329)

2шт.

23

4224013

BUMPER

(SUB FOR AT128330)

18шт.

24

TH108153

KIT

(ALSO ORDER AT115040)

1шт.
