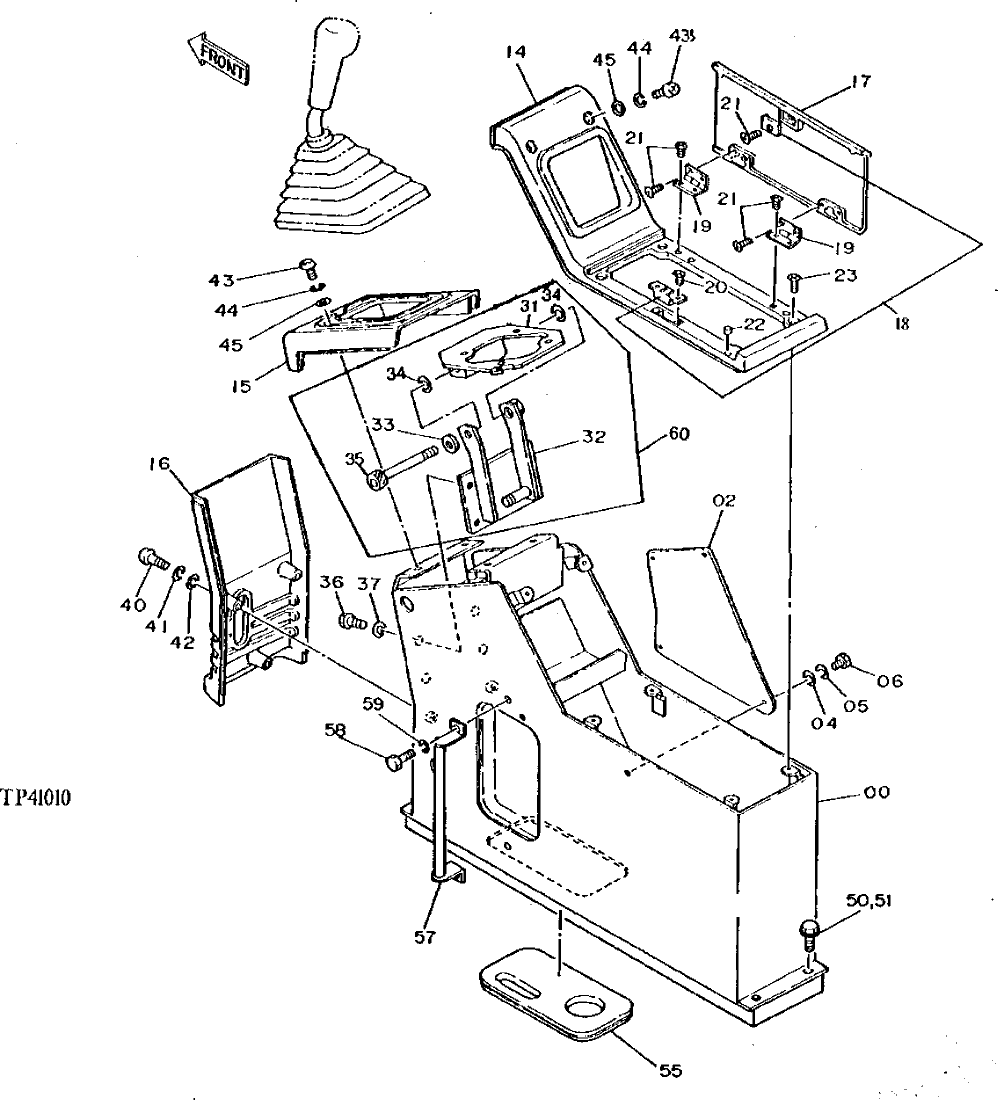

Запчасти John Deere 90D 20 - CONTROL BOX 1810 - OPERATORS STATION 18

0

8039032

STAND

(SUB FOR TH108499)

1шт.

2

4200807

COVER

(SUB FOR TH108500)

1шт.

4

24M7054

WASHER

6.400 X 12 X 1.600 MM

4шт.

5

12M7006

LOCK WASHER

6 MM

4шт.

6

J900614

BOLT

(SUB FOR TH104056)

4шт.

14

5002029

COVER

(SUB FOR TH108501)

1шт.

15

1010967

COVER

(SUB FOR TH108502)

1шт.

16

1010900

COVER

(SUB FOR TH108503)

1шт.

17

7017989

COVER

(SUB FOR TH108504)

1шт.

18

4199403

MAGNET

(SUB FOR TH108505)

1шт.

19

4199401

HINGE

(SUB FOR TH108506)

2шт.

20

21M7398

SCREW

M3 X 10

2шт.

21

21M7404

SCREW

M2.500 X 6, (SUB FOR TH108507)

9шт.

22

4208354

BUMPER

(SUB FOR TH108508)

2шт.

23

21M7254

SCREW

M6 X 16

4шт.

31

8038104

BRACKET

(SUB FOR TH108509)

1шт.

32

8038101

BRACKET

(SUB FOR TH108510)

1шт.

33

24M7047

WASHER

13 X 24 X 2.500 MM

1шт.

34

4191947

SHIM

(SUB FOR TH108494)

2шт.

35

19M8442

SCREW

M12 X 100

1шт.

36

19M7938

CAP SCREW

M10 X 20

4шт.

37

12M7066

LOCK WASHER

10 MM

4шт.

40

21M7405

SCREW

M6 X 40

3шт.

41

12M7006

LOCK WASHER

6 MM, (SUB FOR TH103470)

3шт.

42

24M7054

WASHER

6.400 X 12 X 1.600 MM, (SUB FOR TH100584)

3шт.

43

21M7206

SCREW

M6 X 20

6шт.

44

12M7006

LOCK WASHER

6 MM, (SUB FOR TH103470)

6шт.

45

24M7054

WASHER

6.400 X 12 X 1.600 MM, (SUB FOR TH100584)

6шт.

50

19M8499

CAP SCREW

M10 X 60

4шт.

51

12M7066

LOCK WASHER

10 MM

4шт.

55

4200658

GROMMET

(SUB FOR TH108496)

1шт.

57

9728240

SUPPORT

(SUB FOR TH108511)

1шт.

58

19M7938

CAP SCREW

M10 X 20

2шт.

59

12M7066

LOCK WASHER

10 MM

2шт.

60

BRACKET

( TH110218 NO LONGER AVAILABLE)

1шт.
