Запчасти John Deere 90D 10 - CAB COMPONENTS 1810 - OPERATORS STATION 18

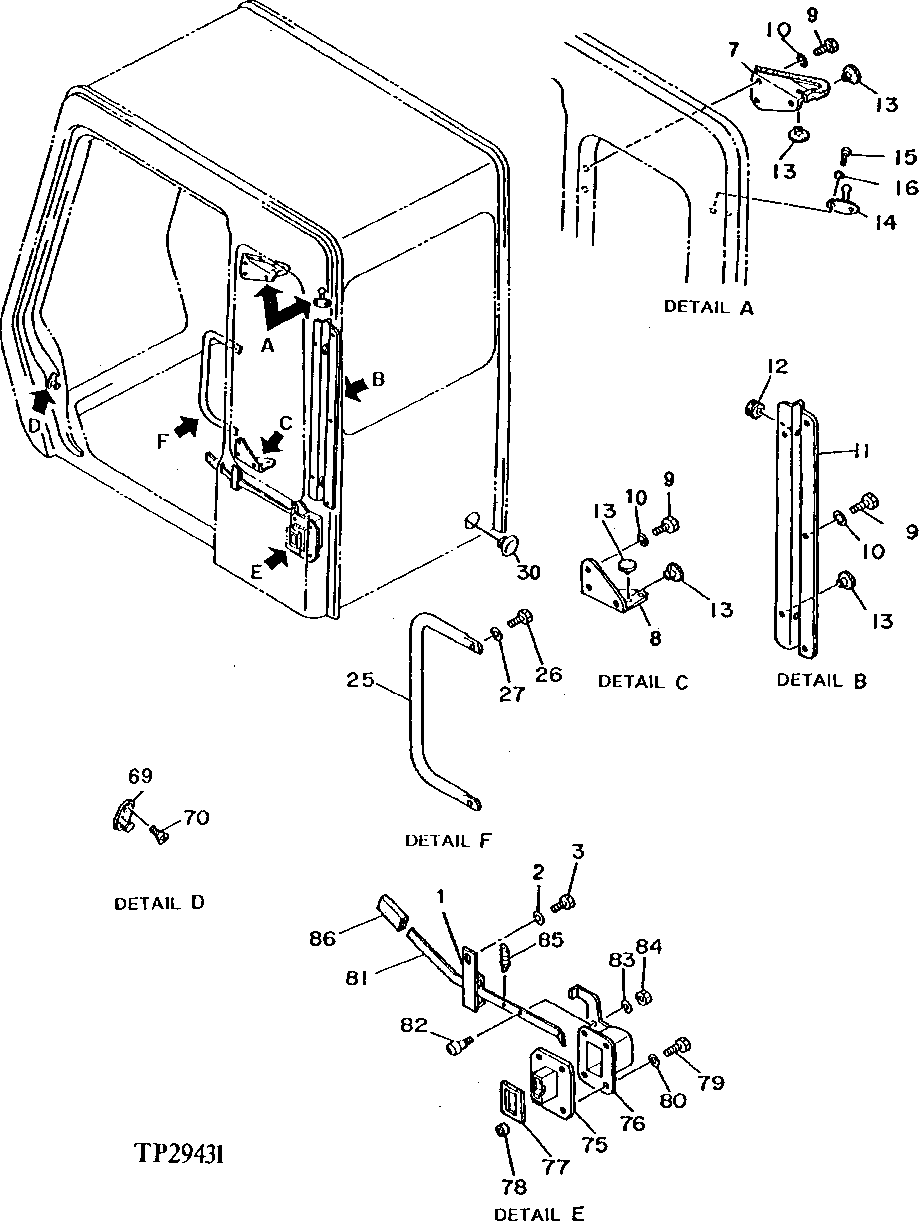

Схема запчастей John Deere 90D - 10 - CAB COMPONENTS 1810 - OPERATORS STATION 18

Артикул

Название

Примечание

Количество

1

4231412

STOP

(SUB FOR AT125538)

1шт.

2

12M7066

LOCK WASHER

10 MM

1шт.

3

19M7402

CAP SCREW

M10 X 25

1шт.

7

4204601

BRACKET

(SUB FOR TH108684)

1шт.

8

4204602

BRACKET

(SUB FOR TH108685)

1шт.

9

19M7932

CAP SCREW

M8 X 16

7шт.

10

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

7шт.

11

4204603

BRACKET

(SUB FOR TH108686)

1шт.

12

4204604

GROMMET

(SUB FOR TH108687)

2шт.

13

4204605

BUMPER

(SUB FOR TH108688)

6шт.

14

4147924

HOOK

(SUB FOR TH101186)

1шт.

15

21M7265

SCREW

M5 X 12

2шт.

16

12M7064

LOCK WASHER

5 MM

2шт.

25

4213910

HANDRAIL

(SUB FOR TH108693) (SUB FOR T114525)

1шт.

26

19M7402

CAP SCREW

M10 X 25

2шт.

27

12M7066

LOCK WASHER

10 MM

2шт.

30

T78888

PLUG

1шт.

69

4347518

STRIKER

(SUB FOR TH101170 OR 4128473)

1шт.

70

21M7297

SCREW

M8 X 16, (SUB FOR TH101171, ALONG WITH 12M7082)

2шт.

12M7082

LOCK WASHER

8.400 MM

2шт.

75

4204588

LOCK

(SUB FOR TH108670)

1шт.

76

4204589

COVER

(SUB FOR TH108671)

1шт.

77

4204590

GASKET

(SUB FOR TH108672)

1шт.

78

4204591

SEAL

(SUB FOR TH108673)

1шт.

79

19M7881

SCREW

M8 X 20

4шт.

80

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

4шт.

81

4208002

LEVER

(SUB FOR TH108674)

1шт.

82

4204593

BOLT

(SUB FOR TH108675)

1шт.

83

12M7006

LOCK WASHER

6 MM

1шт.

84

14M7272

NUT

M6

1шт.

85

4208103

SPRING

(SUB FOR TH108676) (SUB FOR AT121585)

1шт.

86

4089012

CAP

(SUB FOR TH101184)

1шт.

90

4196647J

CAB

(SUB FOR AT114976 OR 4196647) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE - FOR ADDITIONAL COMPONENTS SEE PREVIOUS AND FOLLOWING PAGES) (SUB FOR TH108621 ALONG WITH AT148303, (2) 14M7273 AND (2) 12M7065)

1шт.

Выбрано товаров: 33
