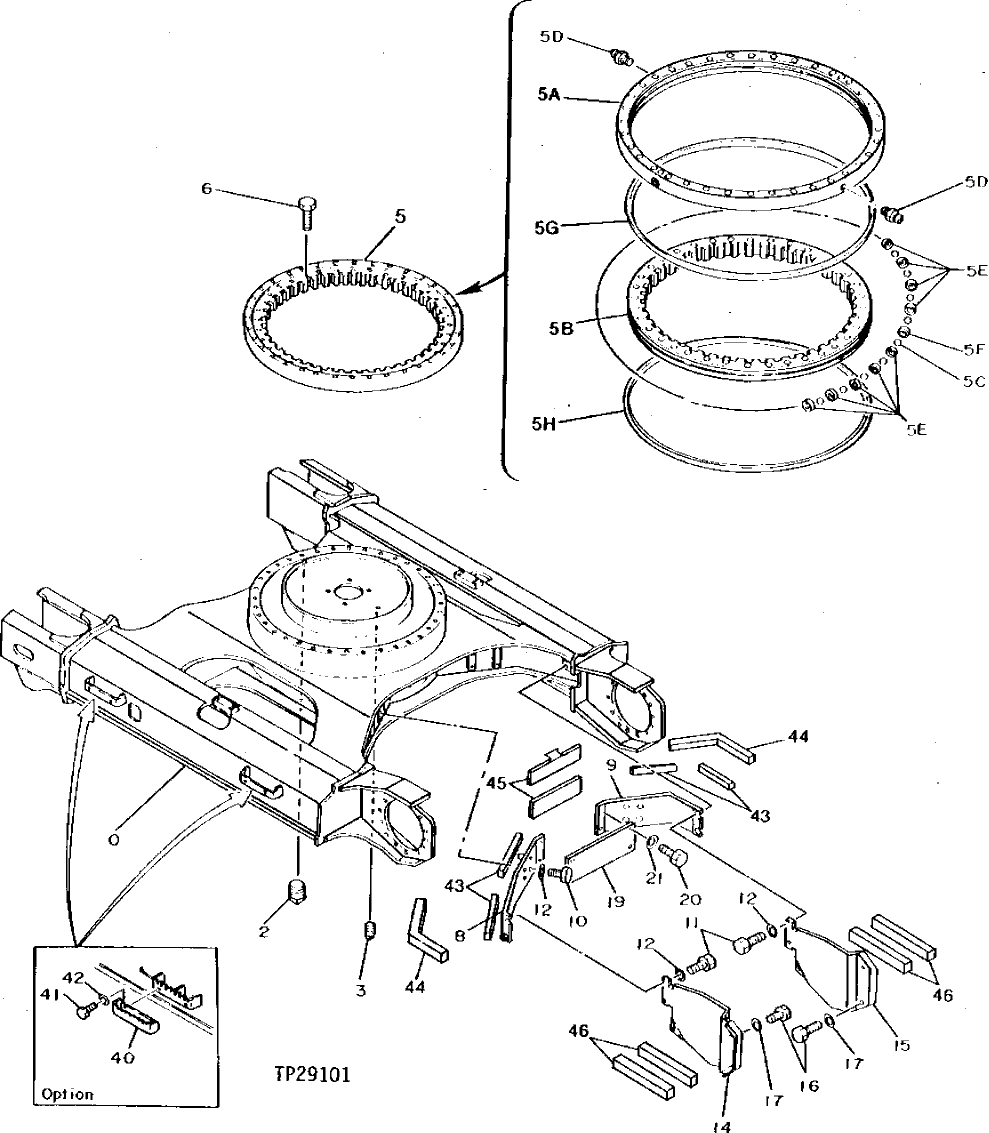

Запчасти John Deere 90D 4 - TRACK FRAME 1740 - FRAME, CHASSIS OR SUPPORTING STRUCTURE 17
№
Артикул
Название
Примечание
Количество
0
FRAME
( TH108809 NO LONGER AVAILABLE)
1шт.
2
J75214
FITTING PLUG
(SUB FOR TH105686)
1шт.
3
94-2024
FITTING PLUG
(SUB FOR TH101292)
1шт.
5
9098995EX
ROLLER
(USE TH108810 IF AVAILABLE) (SUB FOR TH108810) (SUB FOR AT190766)
1шт.
5A
BEARING RACE
(SUB AT190766) (OUTER)
1шт.
5B
BEARING RACE
(SUB AT190766) (INNER)
1шт.
5C
4428919
BALL
(SUB FOR AT182113 AND TH104229 AND 4355728)
ARшт.
5D
TH100074
LUBRICATION FITTING
2шт.
5E
4127708
SPACER
(SUB FOR TH104232)
99шт.
5F
4127707
SPACER
(SUB FOR TH104233)
10шт.
5G
T203958
SEAL
(SUB FOR T191211, TH108166 OR AT131732 AND AT131484) (ALSO ORDER TY21517 AND AT66866) (SUB FOR 4199645)
1шт.
TY21517
ADHESIVE
(NOT ILLUSTRATED)
1шт.
AT66866
FLUID
(NOT ILLUSTRATED)
1шт.
5H
T203958
SEAL
(SUB FOR T191211, TH108166 OR AT131732 AND AT131484) (ALSO ORDER TY21517 AND AT66866) (SUB FOR 4199645)
1шт.
TY21517
ADHESIVE
(NOT ILLUSTRATED)
1шт.
AT66866
FLUID
(NOT ILLUSTRATED)
1шт.
8
8038007
COVER
(SUB FOR TH108813)
1шт.
9
8038006
COVER
(SUB FOR TH108814)
1шт.
11
19M7872
CAP SCREW
M12 X 25
4шт.
12
24H1748
WASHER
1/2" X 1-1/4" X 0.105"
8шт.
14
2022900
COVER
(SUB FOR TH108815)
1шт.
15
2022901
COVER
(SUB FOR TH108816)
1шт.
16
19M7872
CAP SCREW
M12 X 25
6шт.
17
24H1748
WASHER
1/2" X 1-1/4" X 0.105"
6шт.
19
4200038
COVER
(SUB FOR TH108817)
1шт.
20
19M7872
CAP SCREW
M12 X 25
4шт.
21
24H1748
WASHER
1/2" X 1-1/4" X 0.105"
4шт.
40
9720608
STEP
(SUB FOR TH101366)
4шт.
41
19M8011
CAP SCREW
M12 X 30
8шт.
42
12H301
LOCK WASHER
1/2"
8шт.
43
DY1235
PLATE
(B) (ALSO ORDER TH108814 OR TH108813) (ALSO ORDER DY1234) (DYMAX PROVIDES WELDING DETAIL)
4шт.
44
DY1234
PLATE
(B) (ALSO ORDER TH108813 OR TH108814) (ALSO ORDER DY1235) (DYMAX PROVIDES WELDING DETAIL)
2шт.
45
DY1239
ANGLE
(B) (ALSO ORDER TH108817) (DYMAN PROVIDES WELDING DETAIL)
2шт.
46
89612
PLATE
(B) (ALSO ORDER TH108815 OR TH108816) (DYMAX PROVIDES WELDING DETAIL)
4шт.
Выбрано товаров: 36
