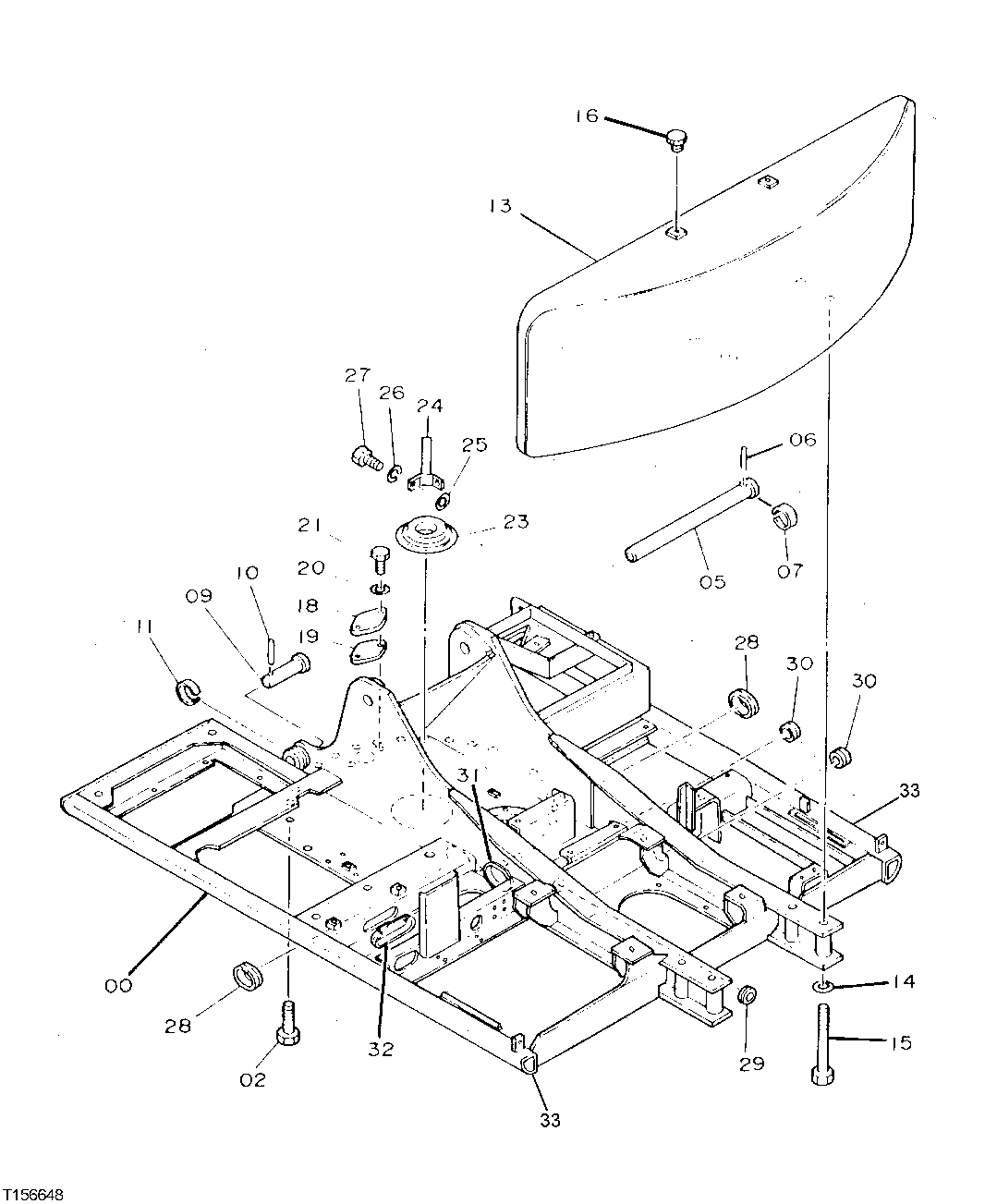

Запчасти John Deere 90D 2 - FRAME 1740 - FRAME, CHASSIS OR SUPPORTING STRUCTURE 17

0

MAIN FRAME

( TH108199 NO LONGER AVAILABLE)

1шт.

2

J931895

BOLT

(SUB FOR TH105690) FASTENS SWING BEARING TO MAIN FRAME

28шт.

5

3043453

PIN

(SUB FOR TH108200) BOOM TO FRAME

1шт.

6

4186695

PIN

(SUB FOR TH105638)

1шт.

7

4065688

RETAINER

(SUB FOR TH100624)

1шт.

9

3037071

PIN

(SUB FOR TH108201)

2шт.

10

4065689

PIN FASTENER

(SUB FOR TH100625)

2шт.

11

4065688

RETAINER

(SUB FOR TH100624)

2шт.

13

COUNTERWEIGHT

( TH108202 NO LONGER AVAILABLE)

1шт.

14

4126485

BUSHING

(SUB FOR TH100627)

4шт.

15

J932720

BOLT

(SUB FOR TH100626)

4шт.

16

4149678

PLUG

(SUB FOR TH100634)

2шт.

18

4013896

COVER

(SUB FOR TH100633)

1шт.

19

4157713

GASKET

(SUB FOR TH100632)

1шт.

20

24M7028

WASHER

10.500 X 20 X 2 MM

2шт.

21

19M7402

CAP SCREW

M10 X 25

2шт.

23

4176863

COVER

(SUB FOR T107046) (ROTARY MANIFOLD)

1шт.

24

8033211

STOP

(SUB FOR AT107243)

1шт.

25

4114404

WASHER

15 X 36 X 4.500 MM (0.591" X 1.417" X 0.177") (SUB FOR TH108203) (SUB FOR AT130666)

2шт.

26

12H317

LOCK WASHER

9/16"

2шт.

27

19M6332

CAP SCREW

M14 X 35

2шт.

28

4201750

GROMMET

(SUB FOR TH108204)

2шт.

29

4201749

GROMMET

(SUB FOR TH108205)

2шт.

30

4509404

GROMMET

(SUB FOR TH100553)

2шт.

31

4201751

GROMMET

(SUB FOR TH108206)

1шт.

32

4202008

GROMMET

(SUB FOR TH108207)

1шт.

33

4459301

LINE

1шт.
