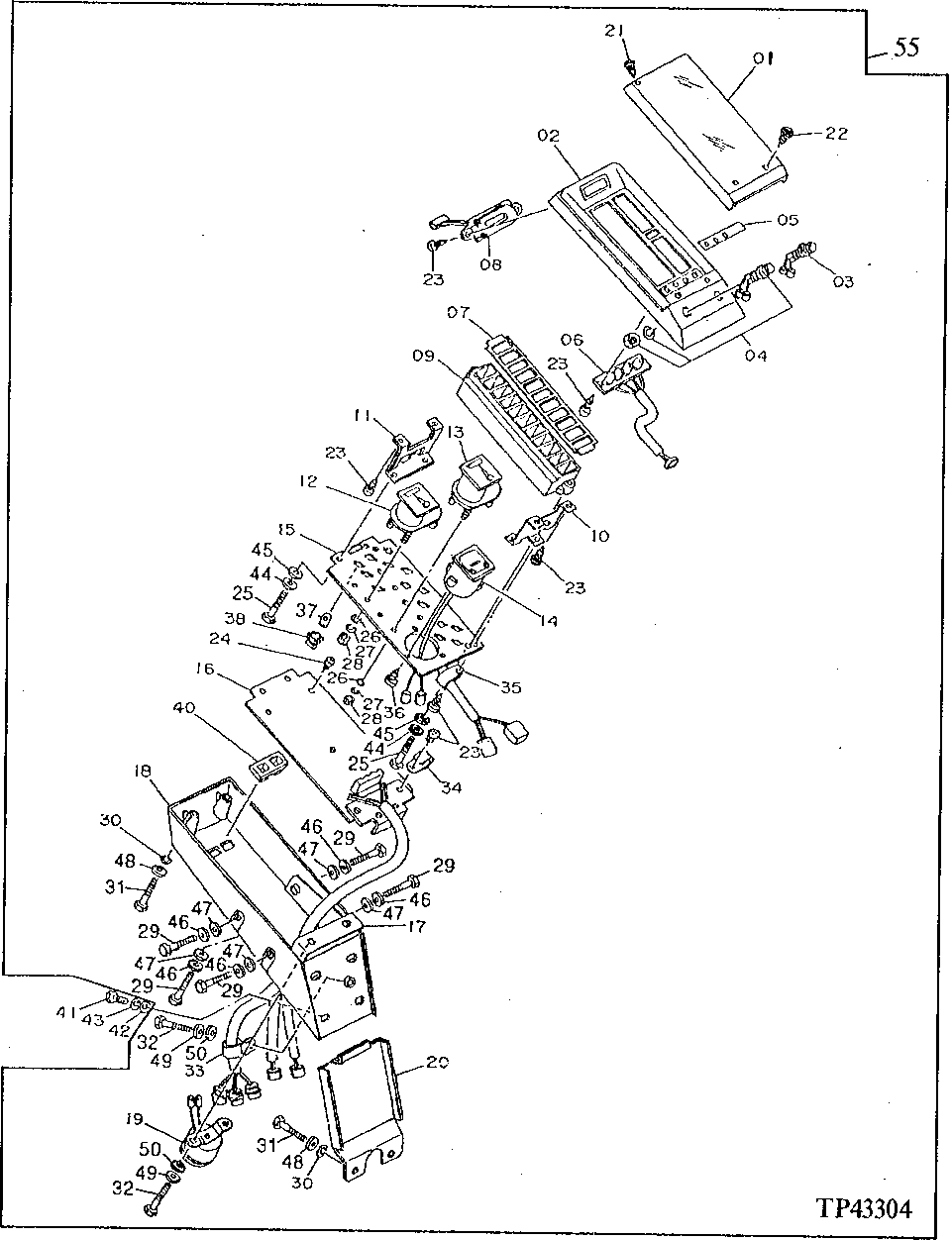

Запчасти John Deere 90D 2 - CONSOLE AND SWITCHES 1676 - ELECTRICAL SYSTEMS 16

1

4208843

COVER

(SUB FOR TH108514)

1шт.

2

4208844

HOUSING

(SUB FOR TH108515)

1шт.

3

4208845

SWITCH

(SUB FOR TH108516) BUZZER

1шт.

4

4208846

SWITCH

(SUB FOR TH108517) LEVEL CHECK

1шт.

5

4208847

MASK

(SUB FOR TH108518)

1шт.

6

4208848

BOARD

(SUB FOR TH108519)

1шт.

7

4209958

LENS

(SUB FOR TH108520)

1шт.

8

4208850

CLOCK

(SUB FOR TH108521)

1шт.

9

4208851

HOUSING

(SUB FOR TH108522) (LAMP)

1шт.

10

4208852

BRACKET

(SUB FOR TH108523)

1шт.

11

4208853

BRACKET

(SUB FOR TH108524) ( 4208853 NSEP)

1шт.

12

4208854

TEMPERATURE GAUGE

(SUB FOR TH108525)

1шт.

13

4208855

GAUGE

(SUB FOR TH108526) FUEL

1шт.

14

4208856

HOUR METER

(SUB FOR TH108527)

1шт.

15

4208857

BOARD

(SUB FOR TH108528) DISPLAY

1шт.

16

4208858

BOARD

(SUB FOR TH108529) MONITOR CONTROL PANEL (LOGIC)

1шт.

17

4208859

BRACKET

(SUB FOR TH108530)

1шт.

18

4208860

HOUSING

(SUB FOR TH108531)

1шт.

19

4208861

AUDIBLE WARNING ALARM

(SUB FOR TH108532)

1шт.

20

4208862

COVER

(SUB FOR TH108533)

1шт.

21

4208864

SCREW

(SUB FOR TH108534) (SUB FOR TH108535) 3 X 10

2шт.

22

4208864

SCREW

(SUB FOR TH108535) 3 X 12

2шт.

23

37H95

SCREW

12шт.

24

37M7067

SCREW

2шт.

25

21M7395

SCREW

M4 X 8, (SUB FOR 4208867) (ALSO ORDER 24M7117 AND 12H315)

5шт.

26

4208868

SHIM

0.460 MM (0.018") (SUB FOR TH108539) 3.2 X 6 X 0.5MM

8шт.

27

12H233

LOCK WASHER

3.175 MM, (SUB FOR 12M7048)

8шт.

28

14M7030

NUT

M3

8шт.

29

21M7305

SCREW

M6 X 12, (SUB FOR 4208870) (ALSO ORDER 24M7054 AND 12M7006)

6шт.

30

24M7117

WASHER

4.300 X 9 X 0.800 MM

6шт.

31

21M7396

SCREW

M4 X 10, (SUB FOR 4208872) (ALSO ORDER 12H315)

6шт.

32

21M7347

SCREW

M5 X 14, (SUB FOR 4208873) (ALSO ORDER 24M7027 AND 12M7064)

3шт.

33

4208874

CLIP

(SUB FOR TH108544)

1шт.

34

4208875

CLIP

(SUB FOR TH108545)

2шт.

35

4208876

CLIP

(SUB FOR TH108546)

1шт.

36

37M7181

SCREW

(SUB FOR TH108547) 4 X 12

3шт.

37

4208878

BULB

(SUB FOR TH108548 OR (15) T67008) (SUB FOR TH108548)

15шт.

38

4208879

SOCKET

(SUB FOR TH108549)

15шт.

40

4252141

COVER

(SUB FOR AT128332)

1шт.

41

19M7881

SCREW

M8 X 20

4шт.

42

24M7055

WASHER

8.400 X 16 X 1.600 MM

4шт.

43

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

4шт.

44

24M7117

WASHER

4.300 X 9 X 0.800 MM

5шт.

45

12H315

LOCK WASHER

4.166 MM, (SUB FOR 12M7063)

5шт.

46

24M7054

WASHER

6.400 X 12 X 1.600 MM

6шт.

47

12M7006

LOCK WASHER

6 MM, (SUB FOR 12M7099)

6шт.

48

12H315

LOCK WASHER

4.166 MM, (SUB FOR 12M7063)

6шт.

49

24M7027

WASHER

5.300 X 10 X 1 MM

3шт.

50

12M7064

LOCK WASHER

5 MM

3шт.

55

4205438

GAUGE

(SUB FOR TH108513)

1шт.
