Запчасти John Deere 90D 16 - WEATHERPACK TERMINALS AND CONNECTORS 1674 - ELECTRICAL SYSTEMS 16

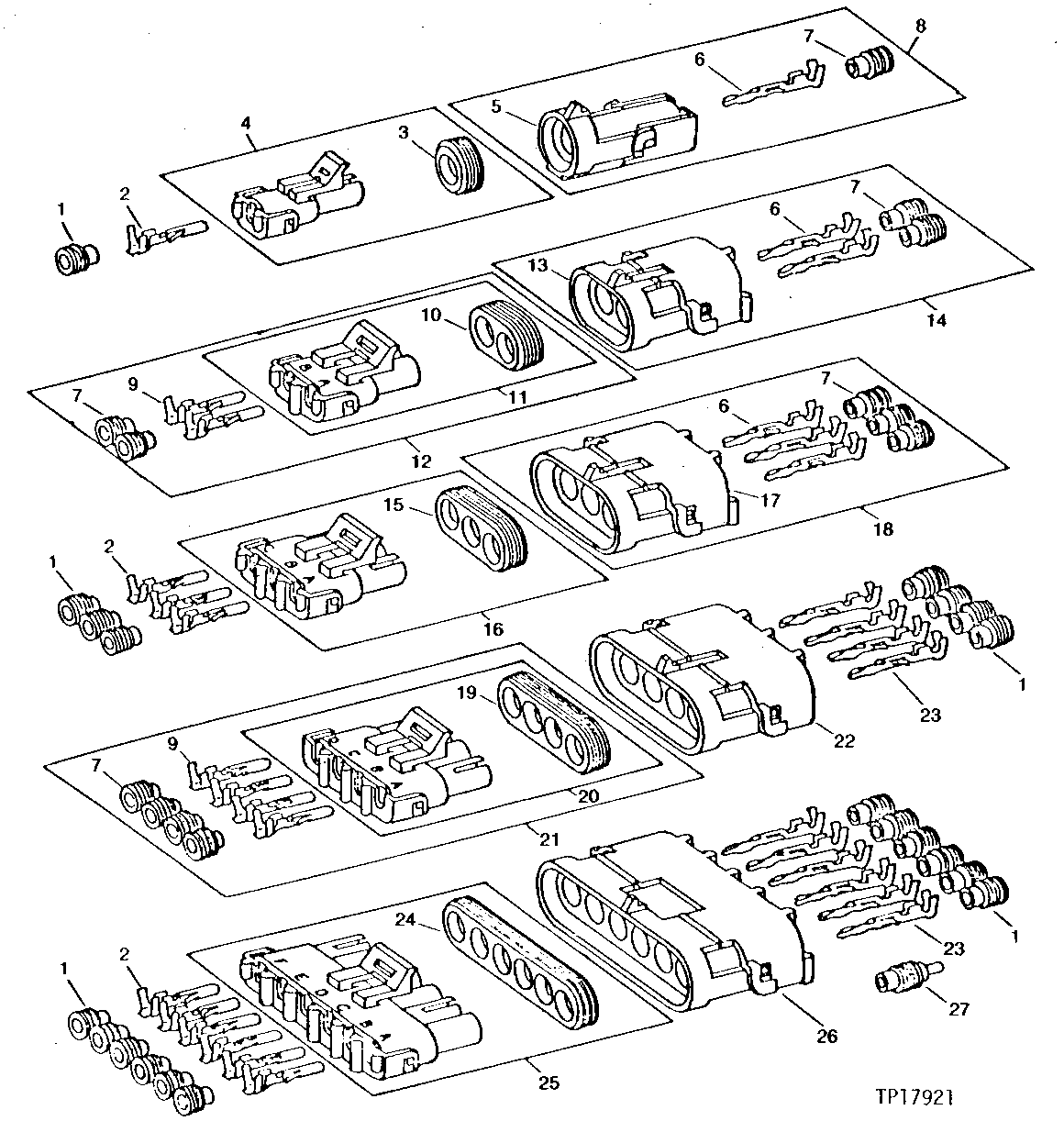

Схема запчастей John Deere 90D - 16 - WEATHERPACK TERMINALS AND CONNECTORS 1674 - ELECTRICAL SYSTEMS 16

Артикул

Название

Примечание

Количество

1

R78063

ELEC. CONNECTOR SEAL

(PKG. OF 40) (16 GA. WIRE) (GRAY)

1шт.

R78059

ELEC. CONNECTOR SEAL

(PKG. OF 40) (18 OR 20 GA. WIRE) (GREEN)

1шт.

R78062

ELEC. CONNECTOR SEAL

(PKG. OF 40) (14 GA. WIRE) (BLUE)

1шт.

2

R78057

ELEC. CONNECTOR TERMINAL

(PKG. OF 40) (18 OR 20 GA. WIRE) (NO. 19)

1шт.

R78060

ELEC. CONNECTOR TERMINAL

(PKG. OF 40) (14 OR 16 GA. WIRE) (NO. 15)

1шт.

3

R78047

SEAL

(PKG. OF 5)

1шт.

4

RE12362

ELECTRICAL CONNECTOR ASSY

(PKG. OF 3)

1шт.

5

R78052

ELECTRICAL CONNECTOR ASSY

(PKG. OF 3)

1шт.

6

R78061

ELEC. CONNECTOR TERMINAL

(PKG. OF 40) (14 OR 16 GA. WIRE) (NO. 15)

1шт.

7

R78063

ELEC. CONNECTOR SEAL

(PKG. OF 40) (16 GA. WIRE) (GRAY)

1шт.

8

RE12334

ELECTRICAL CONNECTOR ASSY

1шт.

9

R78060

ELEC. CONNECTOR TERMINAL

(PKG. OF 40) (14 OR 16 GA. WIRE) (NO. 15)

1шт.

10

R78048

ELEC. CONNECTOR ACCESSORY

(PKG. OF 5)

1шт.

11

RE12363

ELECTRICAL CONNECTOR ASSY

(PKG. OF 3)

1шт.

12

RE12331

ELECTRICAL CONNECTOR ASSY

1шт.

13

R78053

ELECTRICAL CONNECTOR ASSY

(PKG. OF 3)

1шт.

14

RE12330

ELECTRICAL CONNECTOR ASSY

1шт.

15

R78049

SEAL

(PKG. OF 5)

1шт.

16

RE12364

ELECTRICAL CONNECTOR ASSY

(PKG. OF 3)

1шт.

17

R78054

ELECTRICAL CONNECTOR ASSY

(PKG. OF 3)

1шт.

18

RE12332

ELECTRICAL CONNECTOR ASSY

1шт.

19

R78050

SEAL

(PKG. OF 5)

1шт.

20

RE12365

ELECTRICAL CONNECTOR ASSY

(PKG. OF 2)

1шт.

21

RE12333

ELECTRICAL CONNECTOR ASSY

1шт.

22

R78055

ELECTRICAL CONNECTOR ASSY

(PKG. OF 2)

1шт.

23

R78061

ELEC. CONNECTOR TERMINAL

(PKG. OF 40) (14 OR 16 GA. WIRE) (NO. 15)

1шт.

R78058

ELEC. CONNECTOR TERMINAL

(PKG. OF 40) (18 OR 20 GA. WIRE) (NO. 19)

1шт.

24

R78051

SEAL

(PKG. OF 5)

1шт.

25

RE12366

ELECTRICAL CONNECTOR ASSY

(PKG. OF 2)

1шт.

26

R78056

ELECTRICAL CONNECTOR ASSY

(PKG. OF 2)

1шт.

27

R78064

ELEC. CONNECTOR CAVITY PLUG

(PKG. OF 40)

1шт.

Выбрано товаров: 31
