Запчасти John Deere 90D 10 - ELECTRICAL COMPONENTS 1674 - ELECTRICAL SYSTEMS 16

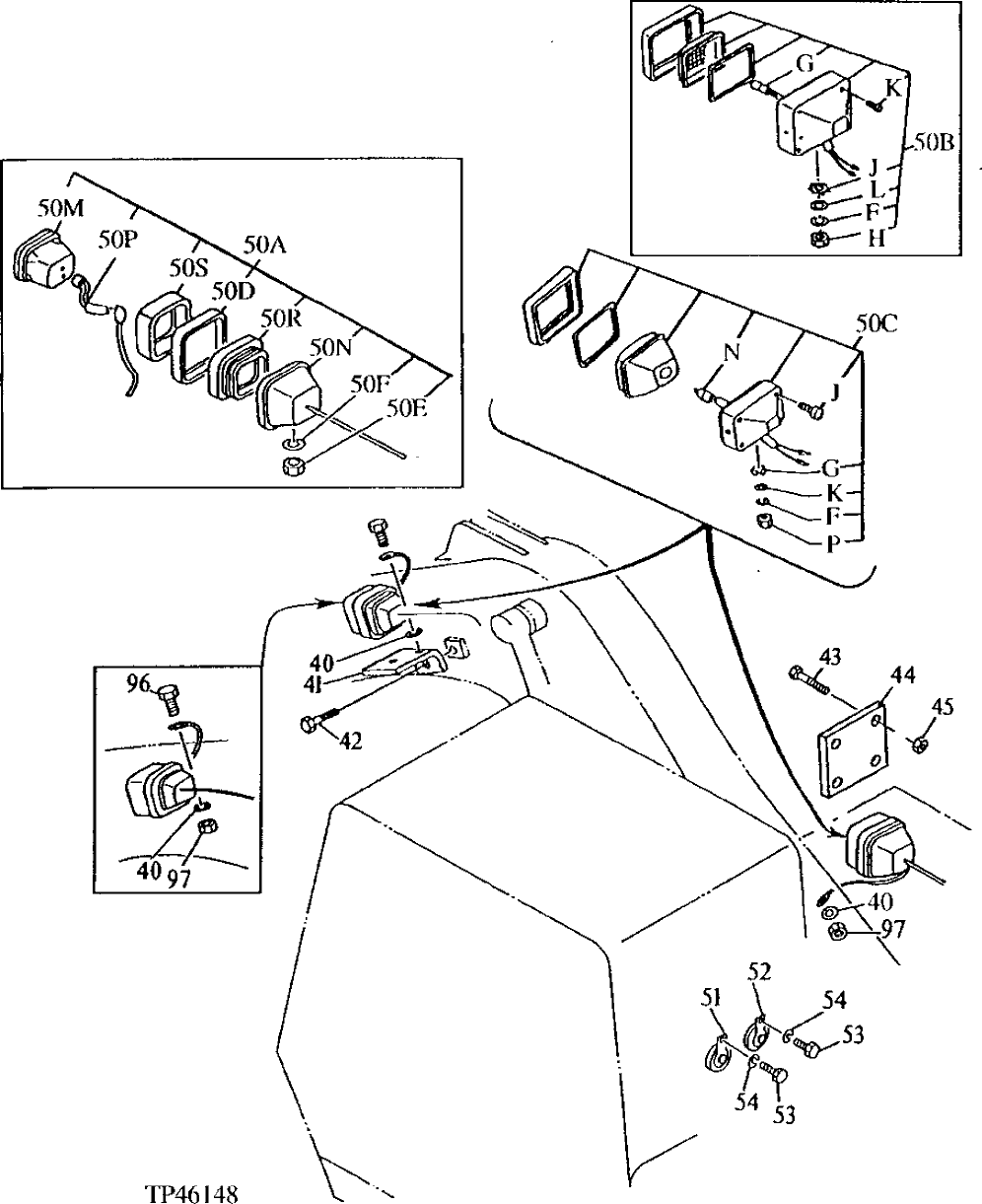

Схема запчастей John Deere 90D - 10 - ELECTRICAL COMPONENTS 1674 - ELECTRICAL SYSTEMS 16

Артикул

Название

Примечание

Количество

40

24M7054

WASHER

6.400 X 12 X 1.600 MM

2шт.

41

4224631

ANGLE

(SUB FOR TH111685)

1шт.

42

J901425

CAP SCREW

(SUB FOR TH104071)

1шт.

43

E72872

CAP SCREW

6.350 X 22.225 MM (1/4" X 7/8") 1/4 X .875 INCH

4шт.

44

DY1505

COVER

(B)

1шт.

45

M40333

LOCK NUT

6.350 MM (1/4")

4шт.

50A

LAMP

(SUB AT165110) (HEAD) ( TH102149 NO LONGER AVAILABLE)

2шт.

50B

LAMP

(SUB AT165110) (HEAD) ( AT159146 NO LONGER AVAILABLE)

2шт.

50C

AT165110

LAMP

(SUB FOR AT176424, TH102149 OR AT159146)

2шт.

50D

HOLDER

(SUB FOR TH108587) ( TH102153 NO LONGER AVAILABLE)

1шт.

50E

14M7502

NUT

M14, (SUB FOR TH102154) (SUB FOR 14M7150)

1шт.

50F

12H317

LOCK WASHER

9/16"

1шт.

50G

AT135758

BULB

(SUB FOR AT159149) (USE IF AVAILABLE)

1шт.

AT135758

BULB

(SUB FOR AT159149 OR AT154990)

1шт.

50H

J952014

NUT

(SUB FOR TH103791)

1шт.

50J

4307026

WASHER

(SUB FOR T144361)

1шт.

50K

37H19

SCREW

(SUB FOR T144362 OR 4307027)

1шт.

50L

24M7085

WASHER

15 X 28 X 2.500 MM

1шт.

50M

4163596

LAMP

(SUB FOR TH102150) (HEAD)

1шт.

50N

WIRING HARNESS

( TH107024 OR AT128419 NO LONGER AVAILABLE)

1шт.

50P

HOUSING

( AT128418 NO LONGER AVAILABLE)

1шт.

50R

BAND

( TH102151 NO LONGER AVAILABLE)

1шт.

50S

HOLDER

( TH102152 NO LONGER AVAILABLE)

1шт.

51

AT64237

HORN

(SUB FOR TH108588)

1шт.

52

AT64237

HORN

(SUB FOR TH108589)

1шт.

53

19M7407

CAP SCREW

M8 X 25

2шт.

54

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

96

19M8425

CAP SCREW

M6 X 16

1шт.

97

14M7272

NUT

M6

2шт.

14M7272

NUT

M6

1шт.

Выбрано товаров: 30
