Запчасти John Deere 90D 4 - ALTERNATOR, PULLEY AND FAN (DELCO) 1672 - ELECTRICAL SYSTEMS 16

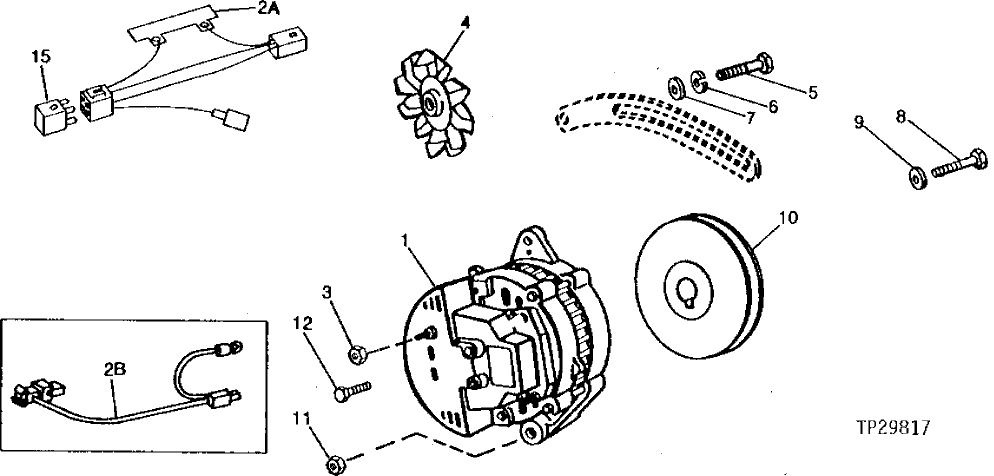

Схема запчастей John Deere 90D - 4 - ALTERNATOR, PULLEY AND FAN (DELCO) 1672 - ELECTRICAL SYSTEMS 16

Артикул

Название

Примечание

Количество

1

ALTERNATOR

(SUB FOR AT130930) (24 VOLT - 40 AMPHERE) ( TY6752 NLA) (REMANUFACTURED)

1шт.

SE501377

ALTERNATOR REMAN

(REMANUFACTURED FOR TY6752)

1шт.

2A

AT131151

WIRING HARNESS

1шт.

2B

AT131151

WIRING HARNESS

(SUB FOR AT142344)

1шт.

3

14M7165

LOCK NUT

M6

1шт.

4

R50659

FAN

1шт.

5

19M7513

CAP SCREW

M8 X 30, (SUB FOR 19M7288)

1шт.

6

12H303

LOCK WASHER

5/16"

1шт.

7

24H1621

WASHER

11/32" X 1" X 0.220"

1шт.

8

19M7329

CAP SCREW

M10 X 75

1шт.

9

24H1822

WASHER

11/32" X 7/8" X 1/16"

1шт.

10

T128132

PULLEY

1шт.

11

14M7274

NUT

M10

1шт.

12

19M7964

CAP SCREW

M8 X 12

1шт.

15

T138822

ELECTRICAL CONNECTOR ASSY

1шт.

Выбрано товаров: 15
