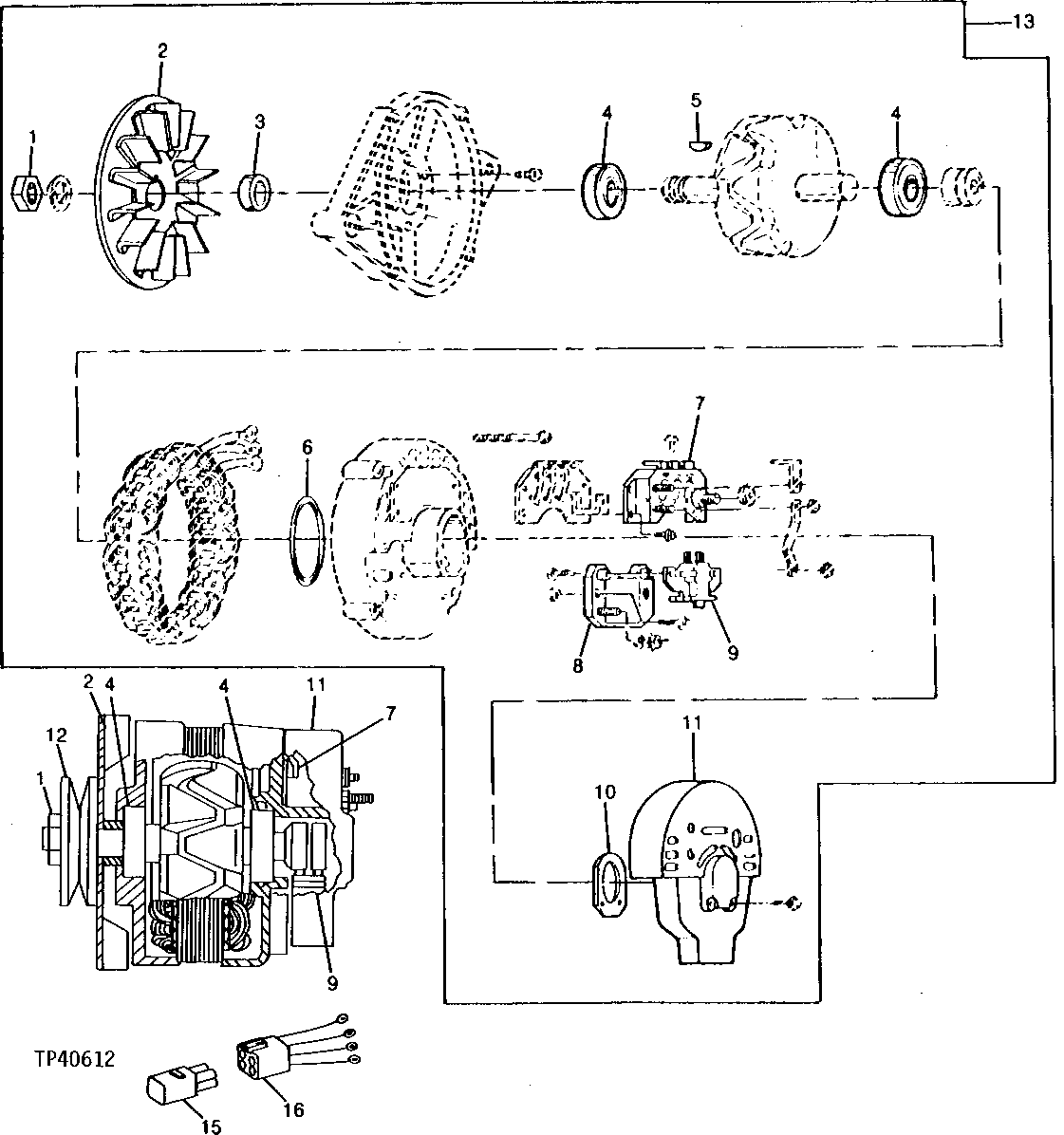

Запчасти John Deere 90D 2 - ALTERNATOR AND PULLEY (PRESTOLITE) 1672 - ELECTRICAL SYSTEMS 16

1

NUT

( W36250 NO LONGER AVAILABLE)

1шт.

2

R60492

FAN

1шт.

3

BUSHING

( T25343 USE IF AVAILABLE)

1шт.

4

JD9449

BALL BEARING

2шт.

5

26H9

SHAFT KEY

1/8" X 5/8"

2шт.

6

RING

( T50860 USE IF AVAILABLE)

1шт.

7

AT104092

RECTIFIER

1шт.

8

AT120668

REGULATOR

1шт.

9

AT104090

HOLDER

1шт.

10

GASKET

( T103117 NO LONGER AVAILABLE)

1шт.

11

T103118

COVER

1шт.

12

T24474

PULLEY

1шт.

13

TY6680

ALTERNATOR

(REMANUFACTURED) (24 VOLT - 42 AMPHERE) (WITHOUT PULLEY) (SUB FOR AT115049 MOTOROLA NO. 70D42179T02) (SUB FOR AT125430 PRESTOLITE NO. 70D42179T02 ALONG WITH AT142345 AND T138822)

1шт.

SE501369

ALTERNATOR

(REMANUFACTURED FOR TY6680)

1шт.

14

AU42892

WIRING LEAD

(NOT ILLUSTRATED) (ALTERNATOR OUTPUT TO SENSE TERMINALS)

1шт.

15

T138822

ELECTRICAL CONNECTOR ASSY

(USE WITH PRESTOLITE ALTERNATOR)

1шт.

16

AT142345

WIRING HARNESS

(USE WITH PRESTOLITE ALTERNATOR)

1шт.
