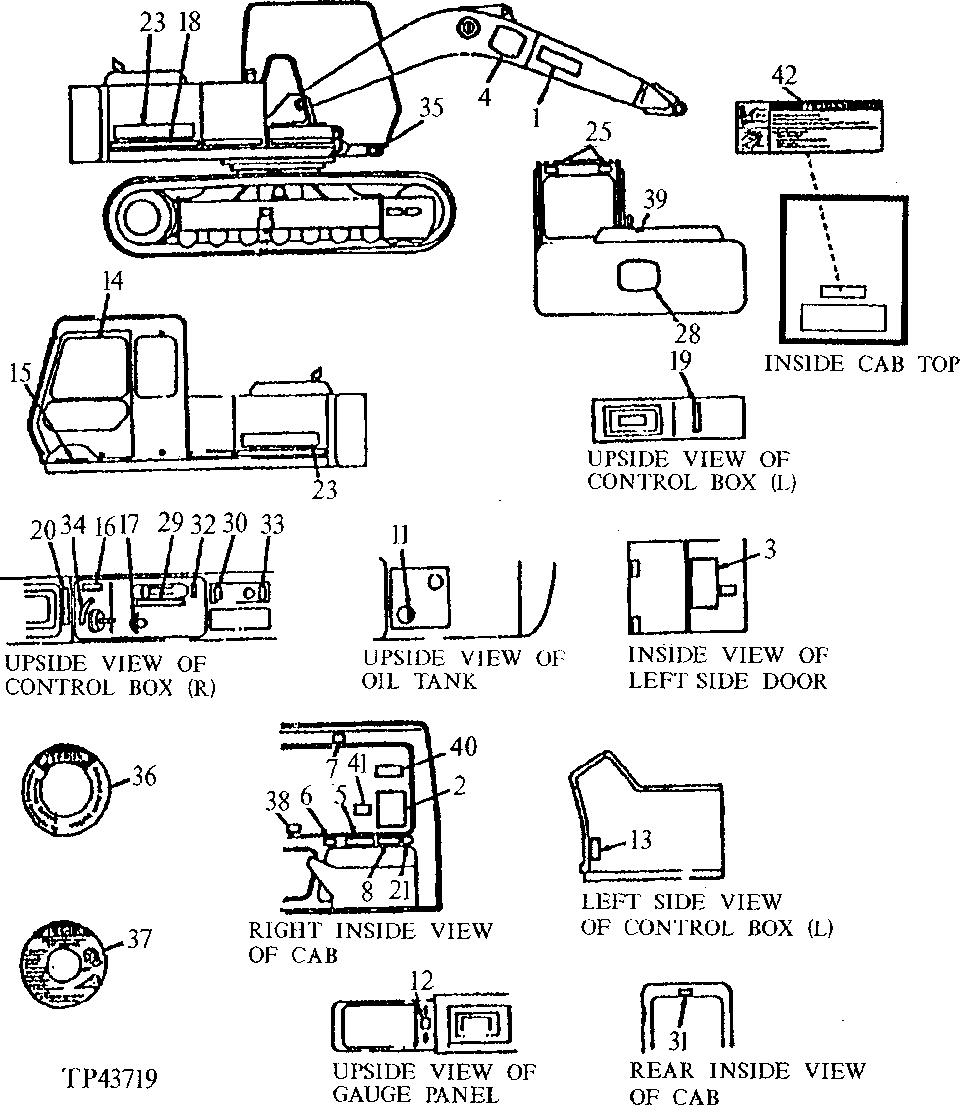

Запчасти John Deere 90D 2 - LABELS AND DECALS 1320 - MISCELLANEOUS VEHICLE 13

1

T107587

LABEL

(K) (MODEL DESIGNATION)

2шт.

T114702

LABEL

(USE WITH 493D FELLER-BUNCHER CONVERSION) MODEL DESIGNATION

2шт.

2

T108170

LABEL

(LIFT CAPACITY CHART)

1шт.

3

T114812

LABEL

(K) (SUB FOR T107589) (PERIODIC MAINTENANCE)

1шт.

T115255

LABEL

(PERIODIC MAINTENANCE - 493D)

1шт.

4

JD5626

LABEL

(K) (LEAPING DEER)

2шт.

JD5624

LABEL

(USE WITH 493D FELLER-BUNCHER CONVERSION)

2шт.

5

T146666

SAFETY SIGN

(SUB FOR T108111, T116769 OR T138801 OR T138835) (CAUTION)

1шт.

6

T146667

SAFETY SIGN

(SUB FOR T114392) (DANGER - ELECTROCUTION)

1шт.

7

T146668

SAFETY SIGN

(SUB FOR T107627) (WARNING)

1шт.

8

T107623

LABEL

(ENGINE START AND STOP)

1шт.

11

P63448

LABEL

(K) (SUB FOR T108113 OR AT155733) BLEED PUMP

1шт.

T114803

LABEL

BLEED PUMP (FRENCH) (NOT ILLUSTRATED)

1шт.

12

4211092

LABEL

(SUB FOR TH110230) (CHECK AND BUZZER STOP)

1шт.

13

4149203

LABEL

(SUB FOR TH101569) (LEFT LEVER STAND)

1шт.

14

T119535

LABEL

(K) (SUB FOR TH101411) (BUMPER)

4шт.

15

H21259

MAT

(K)

13шт.

16

T108112

LABEL

(AUTO IDLE)

1шт.

17

T108168

LABEL

(MODE)

1шт.

18

T107620

LABEL

(K) (BLACK STRIP)

1шт.

19

TH103405

LABEL

(LEFT CONTROL LEVER - SAE PATTERN) (WHITE BACKGROUND)

1шт.

T159843

LABEL

(SUB FOR TH101630) (LEFT CONTROL LEVER - JOHN DEERE PATTERN) (YELLOW BACKGROUND)

1шт.

20

TH103404

LABEL

(RIGHT CONTROL LEVER - SAE PATTERN) (WHITE BACKGROUND)

1шт.

T159844

LABEL

(SUB FOR TH103406) (RIGHT CONTROL LEVER - JOHN DEERE PATTERN) (YELLOW BACKGROUND)

1шт.

21

T114427

LABEL

(HEATER)

1шт.

T108114

LABEL

(HEATER - AIR CONDITIONING)

1шт.

23

JD5613

LABEL

(K) (JOHN DEERE)

2шт.

24

2025748

LABEL

(SUB FOR AT115040) (USE WITH 490D) (VANDAL PROTECTION KIT) (NOT ILLUSTRATED ON THIS PAGE)

1шт.

25

T114383

SAFETY SIGN

(USE WITH 493D FELLER-BUNCHER CONVERSION) (EMERGENCY EXIT) (APPLY ONE ON RIGHT INSIDE CAB WINDOW - APPLY ONE ON RIGHT OUTSIDE ABOVE REAR CAB WINDOW)

2шт.

28

JD5627

LABEL

(K) (LEAPING DEER)

1шт.

29

4146722

LABEL

(SUB FOR TH100596) (THROTTLE)

1шт.

30

4210039

LABEL

(SUB FOR TH111033) (ENGINE STOP)

1шт.

31

T146664

SAFETY SIGN

(WINDOW LOCK) (SUB FOR TH111028 OR TH111901)

1шт.

32

4172040

LABEL

(SUB FOR T114454) (THROTTLE)

1шт.

33

4210040

LABEL

(SUB FOR T114455) (STARTING AID)

1шт.

34

4210026

LABEL

(SUB FOR T120640) (IGNITION)

1шт.

35

37H131

SCREW

0.140" X 3/8", (NAME PLATE ON BOOM)

2шт.

36

T147009

LABEL

(K) (SUB FOR T108183) (RESERVOIR COVER)

1шт.

37

T146671

SAFETY SIGN

(K) (SUB FOR T114488) (RADIATOR CAP)

1шт.

38

T116736

LABEL

(SHEAR CONTROL LEVERS) (SEE FOLLOWING PAGE FOR DETAIL)

1шт.

T116737

LABEL

(INTERMITTENT SAW CONTROL LEVERS) (SEE FOLLOWING PAGE FOR DETAIL)

1шт.

39

T152453

SAFETY SIGN

(SUB FOR T64289) (CAUTION, CLEANING) (LOCATE INSIDE OF SERVICE DOOR)

1шт.

40

AT131150

LABEL

(WARNING - REDUCED LIFT CAPACITIES)

1шт.

41

AT131226

LABEL

(THUMB CONTROL, FOOT - FOR ROAD BUILDER UNIT)

1шт.

AT131227

LABEL

(THUNB CONTROL, HAND - FOR ROAD BUILDER UNIT)

1шт.

42

T138861

SAFETY SIGN

SAWHEAD WARNING

1шт.
