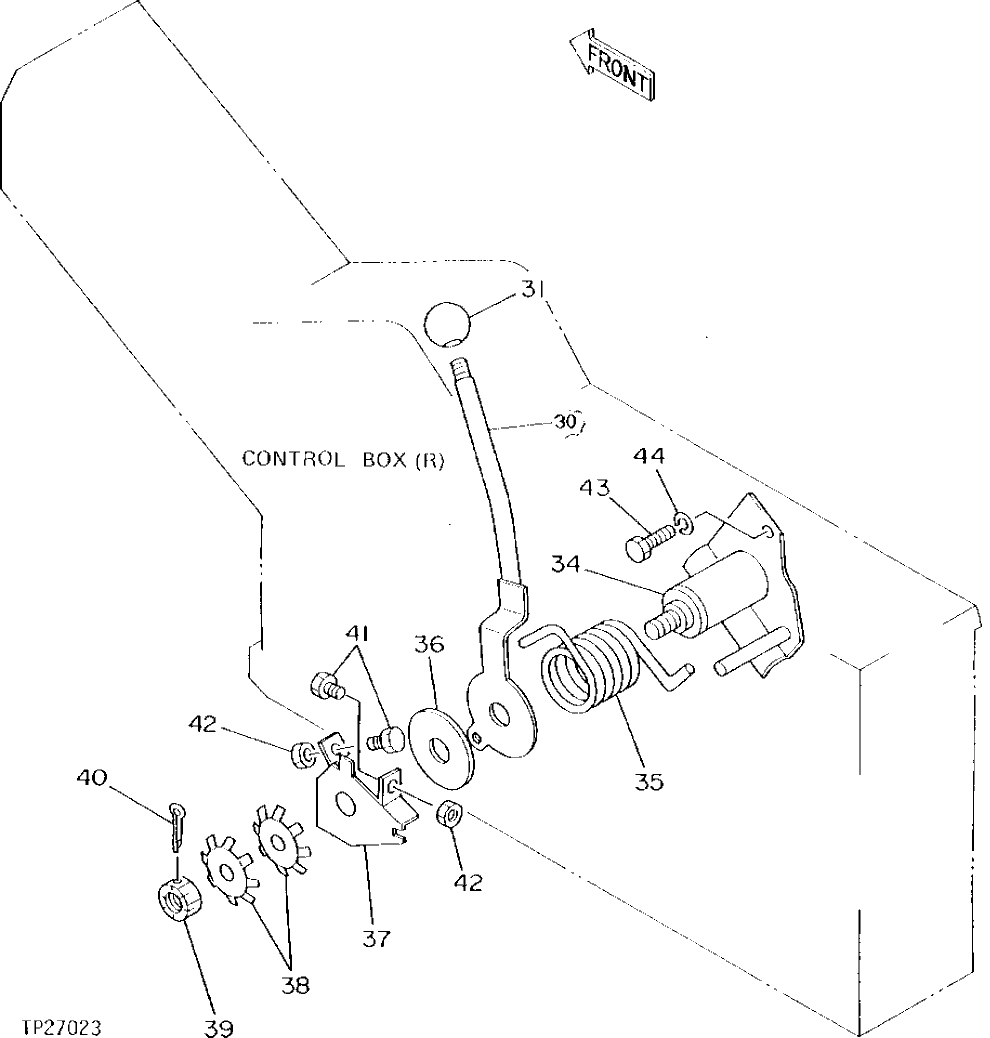

Запчасти John Deere 90D 4 - ENGINE THROTTLE 515 - ENGINE AUXILIARY SYSTEMS 5

30

8038261

LEVER

(SUB FOR TH108356)

1шт.

31

4143169

KNOB

(SUB FOR TH100268)

1шт.

34

7017779

BRACKET

(SUB FOR TH108357)

1шт.

35

4197648

SPRING

(SUB FOR TH108358)

1шт.

36

428770

WASHER

(SUB FOR TH100562)

1шт.

37

8037497

GUIDE

(SUB FOR TH108359)

1шт.

38

4502974

WASHER

(SUB FOR TH100564)

2шт.

39

M631619

NUT

(SUB FOR TH100565)

1шт.

40

11M7087

COTTER PIN

4 X 40 MM, (SUB FOR 11M7023)

1шт.

41

19M8600

CAP SCREW

M10 X 50

2шт.

42

14M7274

NUT

M10

2шт.

43

19M7932

CAP SCREW

M8 X 16

3шт.

44

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

3шт.
