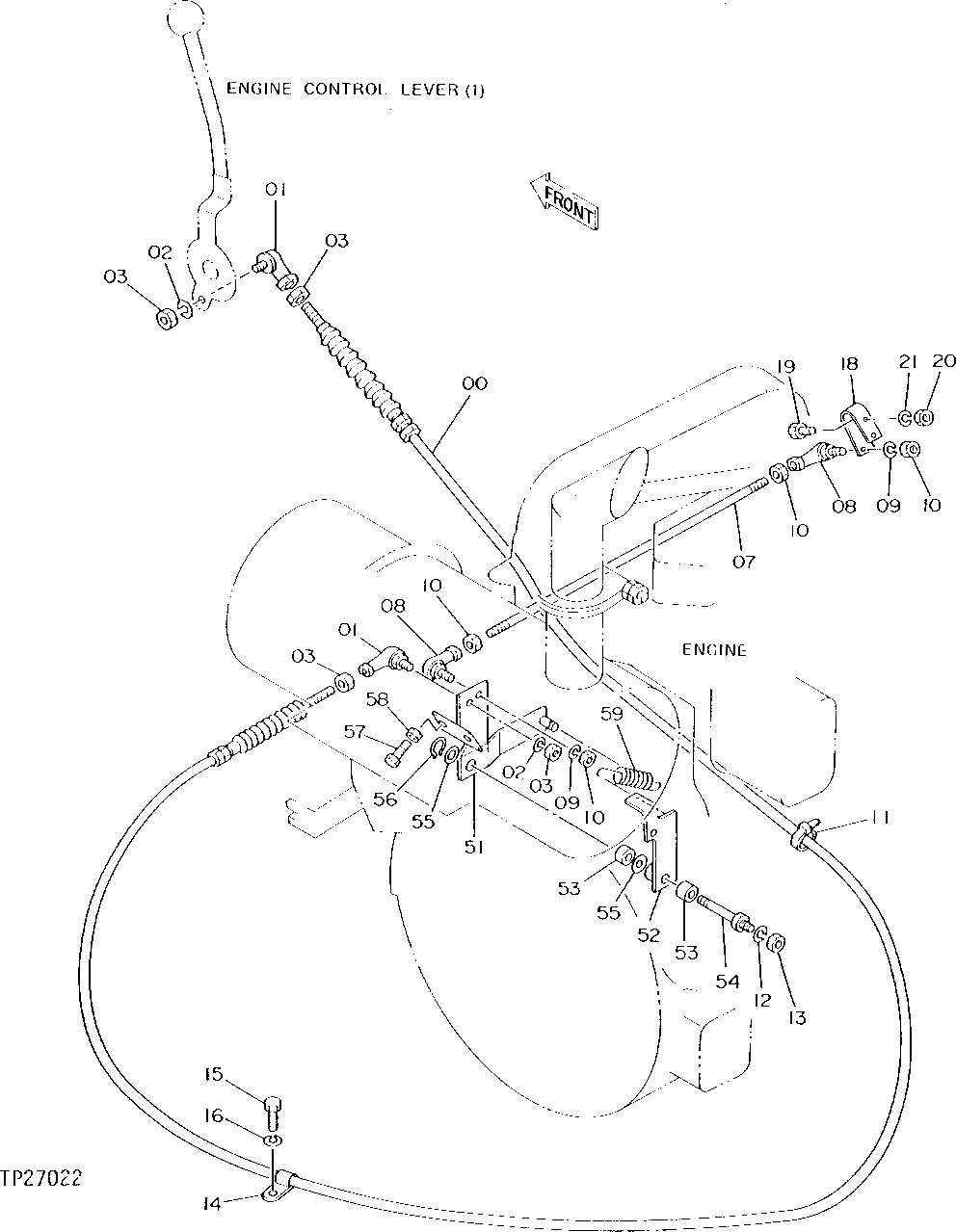

Запчасти John Deere 90D 2 - ENGINE THROTTLE AND SHUT-OFF CABLES 515 - ENGINE AUXILIARY SYSTEMS 5

0

4235424

CABLE

(SUB FOR TH102004)

1шт.

1

4056016

BALL JOINT

(SUB FOR TH100325)

2шт.

2

12M7064

LOCK WASHER

5 MM

2шт.

3

14M7297

NUT

M5

4шт.

7

4204765

ROD

(SUB FOR TH108354)

1шт.

8

4056017

BALL JOINT

(SUB FOR TH102073)

2шт.

9

12M7006

LOCK WASHER

6 MM

2шт.

10

14M7272

NUT

M6

4шт.

11

H77698

TIE BAND

(SUB FOR T44946)

1шт.

12

12H317

LOCK WASHER

9/16"

1шт.

13

J952014

NUT

(SUB FOR TH103791)

1шт.

14

4085447

CLAMP

(SUB FOR TH104350, THIS APPLICATION) (SUB FOR TH101073)

1шт.

15

19M7923

CAP SCREW

M6 X 12

1шт.

16

12M7006

LOCK WASHER

6 MM

1шт.

18

4204766

BRACKET

(SUB FOR TH108355)

1шт.

19

19M8425

CAP SCREW

M6 X 16

2шт.

20

14M7272

NUT

M6

2шт.

21

12M7006

LOCK WASHER

6 MM

2шт.

51

7018259

LEVER

(SUB FOR TH108360)

1шт.

52

8044341

LEVER

(SUB FOR TH108361) (SUB FOR AT127133)

1шт.

53

4173387

BUSHING

(SUB FOR TH103802)

2шт.

54

4188374

STUD

(SUB FOR TH108362)

1шт.

55

24M7085

WASHER

15 X 28 X 2.500 MM

2шт.

56

40M7188

SNAP RING

1шт.

57

4188376

ADAPTER FITTING

(SUB FOR TH108363)

2шт.

58

14M7254

NUT

M8, (SUB FOR TH108364 OR 4122395)

2шт.

59

4216154

EXTENSION SPRING

(SUB FOR TH108365) (SUB FOR TH111670)

1шт.
