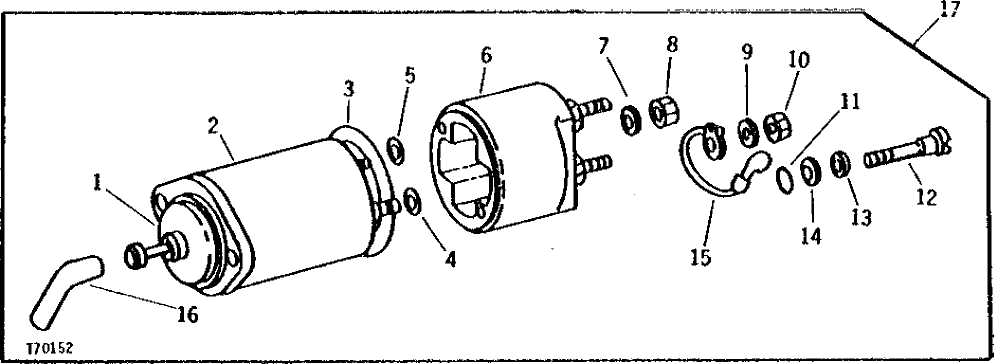

Запчасти John Deere 90D 4 - STARTING MOTOR SOLENOID SWITCH 422 - ENGINE 4

1

R52385

BOOT

1шт.

2

HOUSING

(SUB AR84336, THIS APPLICATION)

1шт.

3

R68224

GASKET

1шт.

4

R56792

WASHER

1шт.

5

R56793

SHIM

1шт.

6

RE20872

COVER

(SUB FOR AR84334)

1шт.

7

12H303

LOCK WASHER

5/16"

2шт.

8

R51671

NUT

1шт.

9

12H246

LOCK WASHER

0.190"

1шт.

10

14H631

NUT

0.190"

1шт.

11

R50894

O-RING

1шт.

12

R51669

SCREW

2шт.

13

12H302

LOCK WASHER

1/4"

2шт.

14

24H1305

WASHER

13/32" X 13/16" X 0.065"

2шт.

15

RE15058

WIRE

(SUB FOR AR55949)

1шт.

16

R68222

BOOT

1шт.

17

RE15661

SOLENOID

(SUB FOR AR84336)

1шт.

18

RE15718

STARTER MOTOR

(SUB RE65173) (NOT ILLUSTRATED) (COMPLETE ASSEMBLY NOT SHOWN ON THIS PAGE) (USE IF AVAILABLE)

1шт.

RE65173

KIT

(SUB FOR RE15718 AND RE43422) (SUB RE70961) (NOT ILLUSTRATED)

1шт.

RE70961

STARTER MOTOR KIT

1шт.
