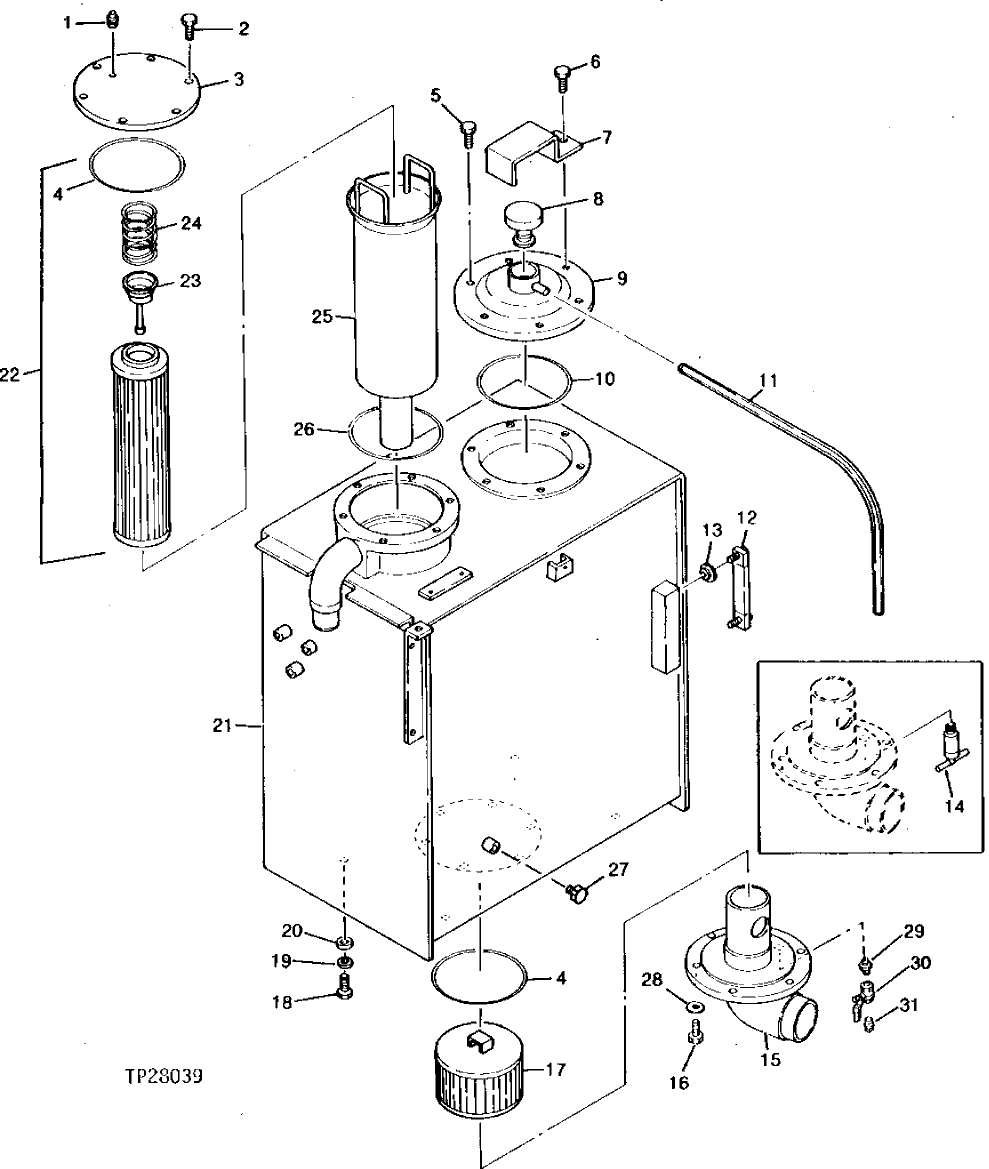

Запчасти John Deere 90 2 - HYDRAULIC RESERVOIR 2160 - MAIN HYDRAULIC SYSTEM 21

1

94-2023

FITTING PLUG

(SUB FOR TH100667)

1шт.

2

19M7938

CAP SCREW

M10 X 20

6шт.

3

4121025

COVER

(SUB FOR TH100666)

1шт.

4

A810165

O-RING

(NOT INCLUDED WITH THE FILTER - SERVICED SEPARATELY ONLY) (SUB FOR TH100665)

2шт.

5

19M8784

SCREW

M10 X 20, (SUB FOR TH100670, 19M8356)

5шт.

6

J241032

CAP SCREW

(SUB FOR TH100669 OR M111032)

1шт.

7

9716639

STOP

(SUB FOR TH100672)

1шт.

8

4294701

CAP

(SUB FOR TH100671) (SUB FOR AT155393)

1шт.

9

8024804

COVER

(SUB FOR TH100668)

1шт.

10

TH100679

O-RING

1шт.

11

HOSE

(MAKE FROM 3/8" VINYL TUBING CUT TO LENGTH)

1шт.

12

8016441

LEVEL GAUGE

(SUB FOR TH100674)

1шт.

13

449558

WASHER

(SUB FOR TH100675)

4шт.

14

DRAIN VALVE

(SUB AT128432, ALONG WITH TH102949 AND TH100667)

1шт.

15

TH100676

PIPE

1шт.

16

19M7402

CAP SCREW

M10 X 25

6шт.

17

4190987

FILTER ELEMENT

(SUB FOR TH100678) (SUB FOR AT128326) (SUCTION)

1шт.

18

19M8035

CAP SCREW

M16 X 35

4шт.

19

12H294

LOCK WASHER

5/8", (SUB FOR TH100466)

4шт.

20

24M7053

WASHER

17 X 30 X 3 MM, (SUB FOR TH100520)

4шт.

21

M800462

PLUG

(SUB FOR TH100658) (SUB TH103534 AND M800462)

1шт.

6007357

HYDRAULIC RESERVOIR

(SUB FOR TH103534)

1шт.

22

AT308568

FILTER ELEMENT

(O-RING NOT INCLUDED WITH THIS FILTER) (SUB FOR 4225846) (ALSO ORDER A810165)

1шт.

23

4094438

FLOW CONTROL HYD. VALVE

(SUB FOR TH100663)

1шт.

24

4094439

SPRING

(SUB FOR TH100664)

1шт.

25

8023221

CASE

(SUB FOR TH100660)

1шт.

26

A810150

O-RING

(SUB FOR TH100662)

1шт.

27

M800462

PLUG

(SUB FOR TH101049)

1шт.

28

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

18шт.

29

94-1702

ADAPTER FITTING

(SUB FOR TH102949)

1шт.

30

4209782

HAND OPERATED VALVE

(SUB FOR AT128432)

1шт.

31

94-2023

FITTING PLUG

(SUB FOR TH100667)

1шт.
