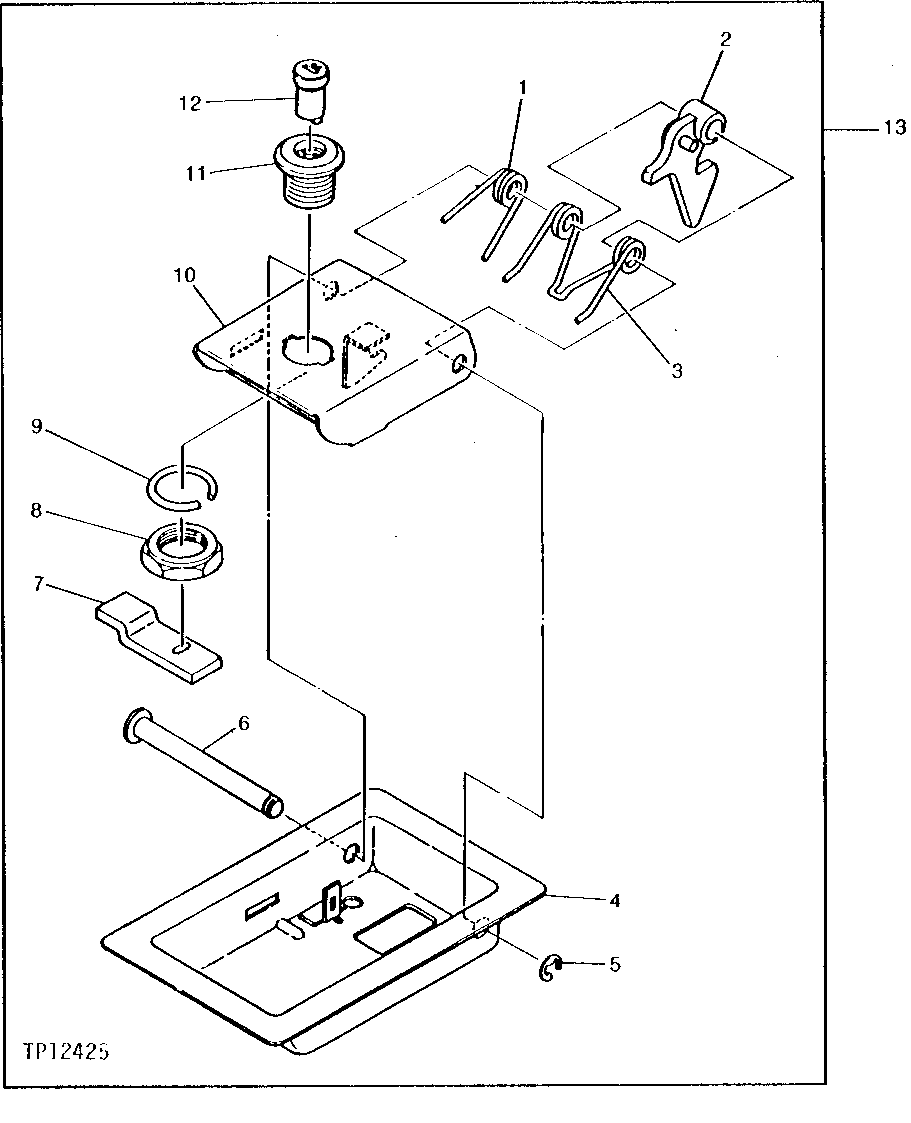

Запчасти John Deere 90 8 - DOOR LOCK 1910 - SHEET METAL AND STYLING 19

1

4355975

TORSION SPRING

(USE WITH TH102226) (SUB FOR TH102234, 4134321)

1шт.

4355974

TORSION SPRING

(USE WITH AT214010) (SUB FOR TH102243) ( AT115741 NO LONGER AVAILABLE)

1шт.

2

LEVER

( TH102229 NO LONGER AVAILABLE)

1шт.

3

4134319

TORSION SPRING

(SUB FOR TH102233) (USE WITH TH102226 LOCK)

1шт.

4355973

SPRING

(USE WITH AT214010) (SUB FOR AT173242) ( AT115741 LOCK NO LONGER AVAILABLE)

1шт.

4

8024490

COVER

(SUB FOR TH102227) (SUB FOR TH102241)

1шт.

5

CH11490

RING

(SUB FOR TH102231)

1шт.

6

4355972

PIN FASTENER

(SUB FOR TH102230)

1шт.

7

4355981

STRAP

(SUB FOR TH102232, 4134331)

1шт.

8

4355980

NUT

(SUB FOR TH102238, 4134323)

1шт.

9

4355979

RING

(SUB FOR TH102237, 4134322)

1шт.

10

8024464

LATCH

(USE WITH TH102226) (SUB FOR TH102228)

1шт.

4355969

LATCH

(USE WITH AT214010) (SUB FOR TH102242) ( AT115741 NO LONGER AVAILABLE)

1шт.

11

4134325

LOCK

(SUB FOR TH102236)

1шт.

12

4134327

LOCK

(USE WITH TH102226) (SUB FOR TH102235) (USES NUMBER 600 KEY)

1шт.

4361411

LOCK

(USE WITH AT214010) (SUB FOR TH110128) (SUB FOR AT206102) (USES NUMBER H800 KEY) ( AT115741 NO LONGER AVAILABLE)

1шт.

4158653

KEY

(SUB FOR TH101605) (H600)

1шт.

AT194969

KEY

(SUB FOR AT147803) (H800)

1шт.

13

4361763

LOCK

(SUB FOR AT115741 AND TH102226) (SUB FOR AT214010)

1шт.
