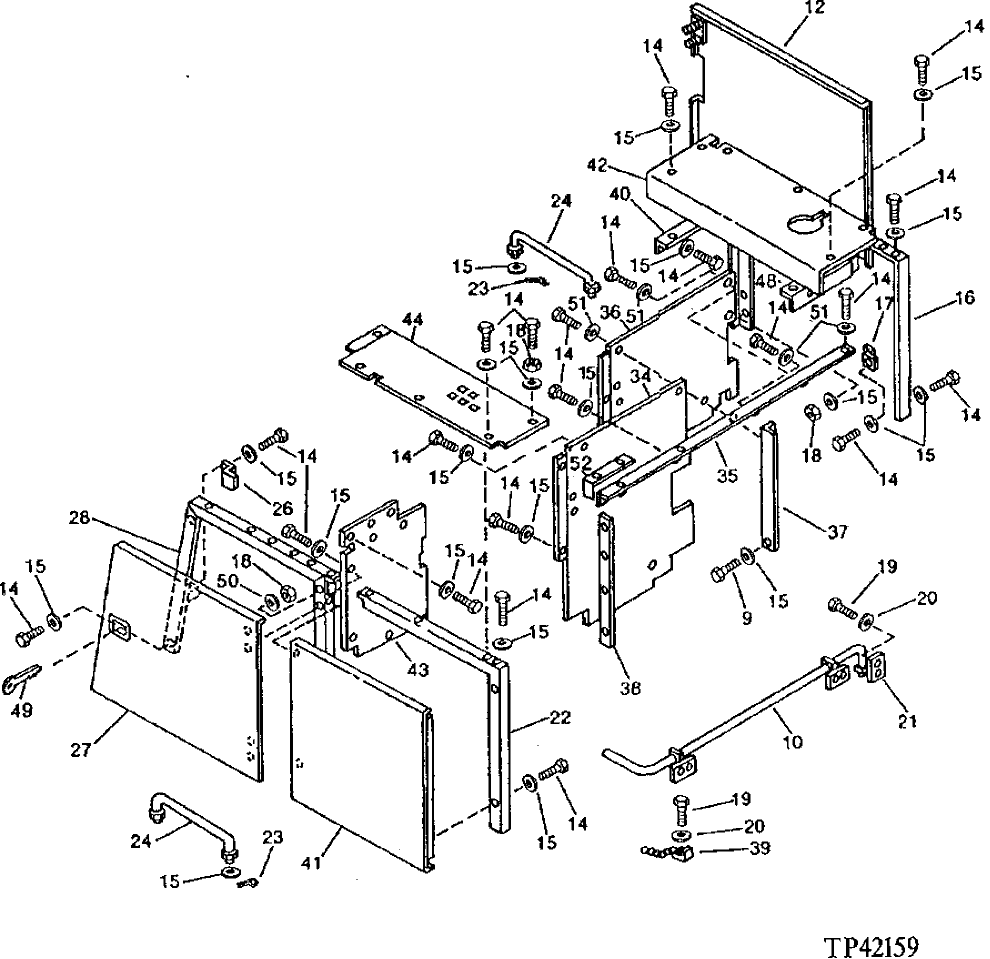

Запчасти John Deere 90 6 - HOOD AND COVERS 1910 - SHEET METAL AND STYLING 19

9

19M7872

CAP SCREW

M12 X 25

ARшт.

10

4155168

ROD

(SUB FOR TH101258)

1шт.

12

7010904

DOOR

(SUB FOR TH101239)

1шт.

14

19M8017

CAP SCREW

M12 X 20

ARшт.

15

24M7047

WASHER

13 X 24 X 2.500 MM, (SUB FOR TH100967)

ARшт.

16

8022467

SUPPORT

(SUB FOR TH101233)

1шт.

17

4122801

STOP

(SUB FOR TH101242)

1шт.

18

14M7275

NUT

M12

9шт.

19

19M8324

CAP SCREW

M10 X 16

7шт.

20

24M7028

WASHER

10.500 X 20 X 2 MM, (SUB FOR TH100263)

7шт.

21

TH101259

CLAMP

3шт.

22

8023236

SUPPORT

(SUB FOR TH101231)

1шт.

23

R50647

SPRING LOCKING PIN

(SUB FOR TH101244)

2шт.

24

9707254

ROD

(SUB FOR TH101245)

2шт.

26

4125473

STOP

(SUB FOR TH101243)

1шт.

27

7010905

DOOR

(SUB FOR TH101240)

1шт.

4361763

LOCK

(SUB FOR AT115741) (SUB FOR AT214010)

1шт.

28

8023235

SUPPORT

(SUB FOR TH101230)

1шт.

34

8028551

COVER

(SUB FOR TH101248)

1шт.

35

8028552

SUPPORT

(SUB FOR TH101236)

1шт.

36

3028710

COVER

(SUB FOR TH101247)

1шт.

37

9719704

SUPPORT

(SUB FOR TH101238)

1шт.

38

9719703

SUPPORT

(SUB FOR TH101237)

1шт.

19M8231

CAP SCREW

M12 X 16, (SUB FOR TH100522)

1шт.

39

9720250

LOCK

(SUB FOR TH101260)

1шт.

40

9719702

SUPPORT

(SUB FOR TH101235)

1шт.

41

8028630

COVER

(SUB FOR TH101246)

1шт.

42

3028709

COVER

(SUB FOR TH101252)

1шт.

43

8028551

COVER

(SUB FOR TH101248)

1шт.

44

8028550

COVER

(SUB FOR TH101251)

1шт.

48

9719701

SUPPORT

(SUB FOR TH101234)

1шт.

49

4134327

LOCK

(SUB FOR TH110128, THIS APPLICATION) (SUB FOR TH102235)

1шт.

50

12H301

LOCK WASHER

(SUB FOR TH101241)

ARшт.

51

24H1748

WASHER

1/2" X 1-1/4" X 0.105"

ARшт.

52

9719700

SUPPORT

(SUB FOR TH101232)

1шт.
