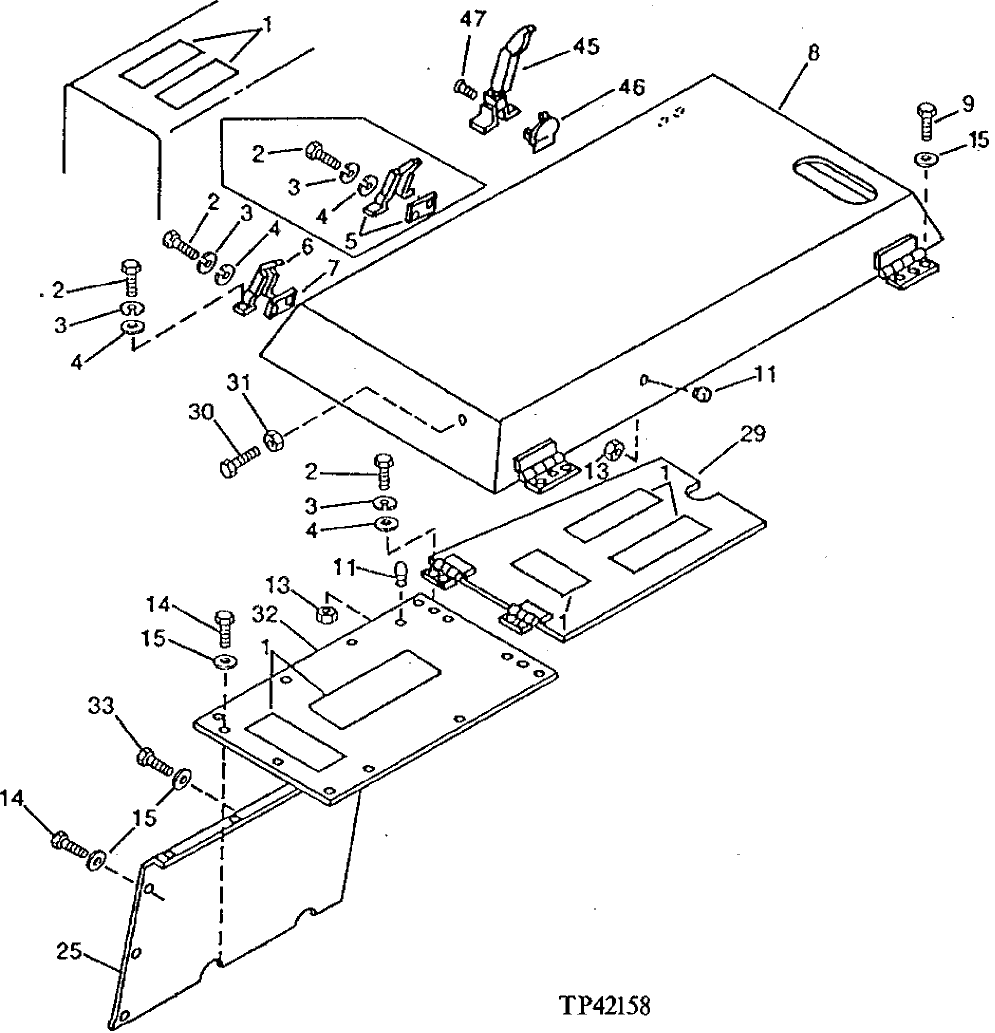

Запчасти John Deere 90 4 - HOOD AND COVERS 1910 - SHEET METAL AND STYLING 19

1

H21259

MAT

7шт.

2

19M7932

CAP SCREW

M8 X 16

12шт.

3

12M7056

LOCK WASHER

8 MM, (SUB FOR TH100529) (SUB FOR 12M7065)

12шт.

4

24M7055

WASHER

8.400 X 16 X 1.600 MM, (SUB FOR TH100280)

12шт.

5

CATCH

(SUB TH102246, TH102247 AND 21M7397)

1шт.

6

4361455

CATCH

(SUB FOR TH101264, 322831)

1шт.

7

4119658

ANCHOR

(SUB FOR TH101265)

1шт.

8

6006373

COVER

(SUB FOR TH101257)

1шт.

9

19M7872

CAP SCREW

M12 X 25

ARшт.

11

4204586

STOP

(SUB FOR 487195) (ALSO ORDER (2) 14M7274)

2шт.

4152535

SPACER

(SUB FOR TH101262)

1шт.

13

14M7274

NUT

M10, (SUB FOR TH100255 OR 14M7444 OR TH104196)

2шт.

14

19M8017

CAP SCREW

M12 X 20

ARшт.

15

24M7047

WASHER

13 X 24 X 2.500 MM, (SUB FOR TH100967)

ARшт.

25

8025998

COVER

(SUB FOR TH101249)

1шт.

29

8026000

COVER

(SUB FOR TH101256)

1шт.

30

19M7662

CAP SCREW

M10 X 30

1шт.

31

14M7274

NUT

M10

1шт.

32

8028549

COVER

(SUB FOR TH101250)

1шт.

33

19M8011

CAP SCREW

M12 X 30

1шт.

45

3021130

CATCH

(SUB FOR TH101263) (ALSO ORDER 21M7397 AND TH102247) (SUB FOR TH102246)

1шт.

46

3021131

ANCHOR

(SUB FOR TH102247)

1шт.

47

21M7397

SCREW

M8 X 25

1шт.
