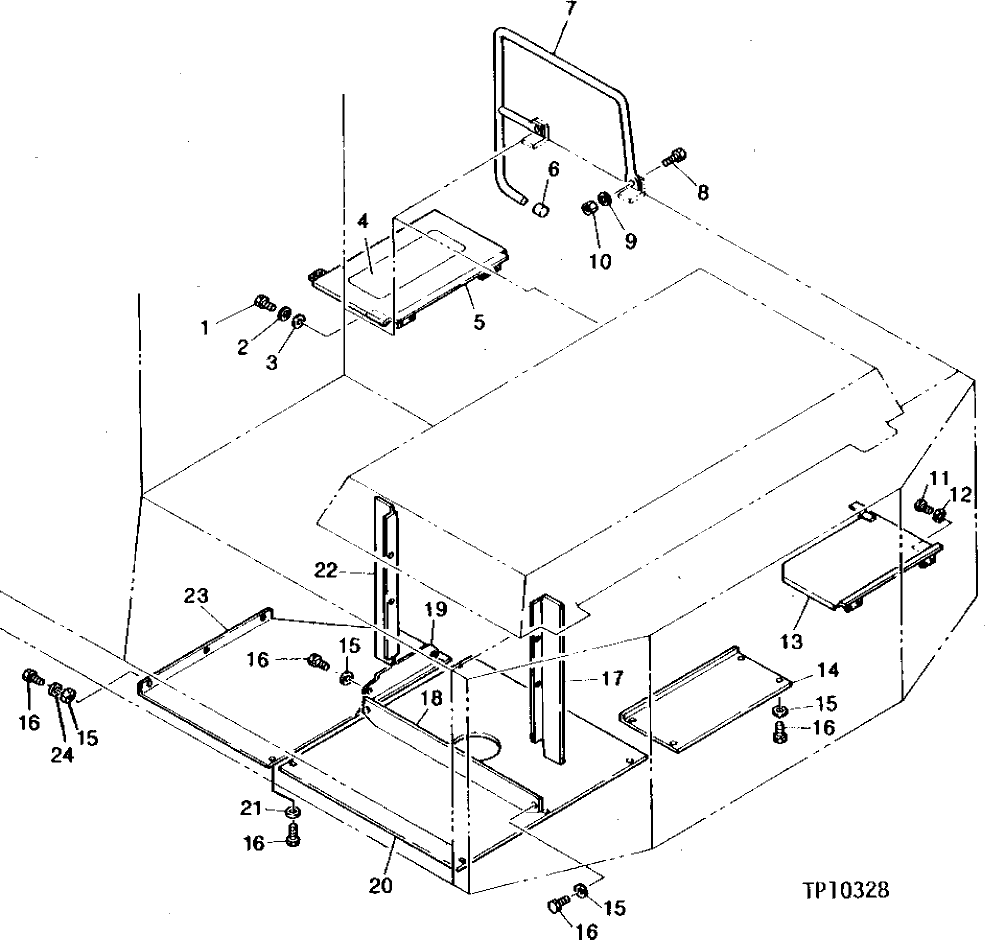

Запчасти John Deere 90 2 - ENGINE COVER 1910 - SHEET METAL AND STYLING 19

1

19M7932

CAP SCREW

M8 X 16

4шт.

2

12M7056

LOCK WASHER

8 MM, (SUB FOR TH100529) (SUB FOR 12M7065)

4шт.

3

24M7055

WASHER

8.400 X 16 X 1.600 MM, (SUB FOR TH100280)

4шт.

4

H21259

MAT

1шт.

5

7011767

COVER

(SUB FOR TH101268) BATTERY

1шт.

6

CAP

1шт.

7

TH101269

STOP

1шт.

8

19M7403

CAP SCREW

M12 X 35

2шт.

9

12H301

LOCK WASHER

1/2", (SUB FOR TH100413)

2шт.

10

14M7275

NUT

M12

2шт.

11

TH101280

CAP SCREW

4шт.

12

12M7006

LOCK WASHER

6 MM, (SUB FOR TH100548)

4шт.

13

7012710

COVER

(SUB FOR TH101279) TOOLBOX

1шт.

7015283

PANEL

(SUB FOR TH103414) TOOLBOX

1шт.

14

4142116

COVER

(SUB FOR TH101275)

1шт.

15

24M7047

WASHER

13 X 24 X 2.500 MM, (SUB FOR TH100967)

19шт.

16

19M8231

CAP SCREW

M12 X 16, (SUB FOR TH100522)

22шт.

17

4155136

PLATE

(SUB FOR TH101278)

1шт.

18

4155135

PLATE

(SUB FOR TH101276)

1шт.

19

4149799

COVER

(SUB FOR TH101272)

1шт.

20

8028561

COVER

(SUB FOR TH101273)

1шт.

21

24H1748

WASHER

1/2" X 1-1/4" X 0.105", (SUB FOR TH101254)

3шт.

22

4155137

PLATE

(SUB FOR TH101277)

1шт.

23

8028041

COVER

(SUB FOR TH101274)

1шт.

24

12H301

LOCK WASHER

1/2", (SUB FOR TH100413)

3шт.
