Запчасти John Deere 90 4 - CAB HEATER 1830 - OPERATORS STATION 18

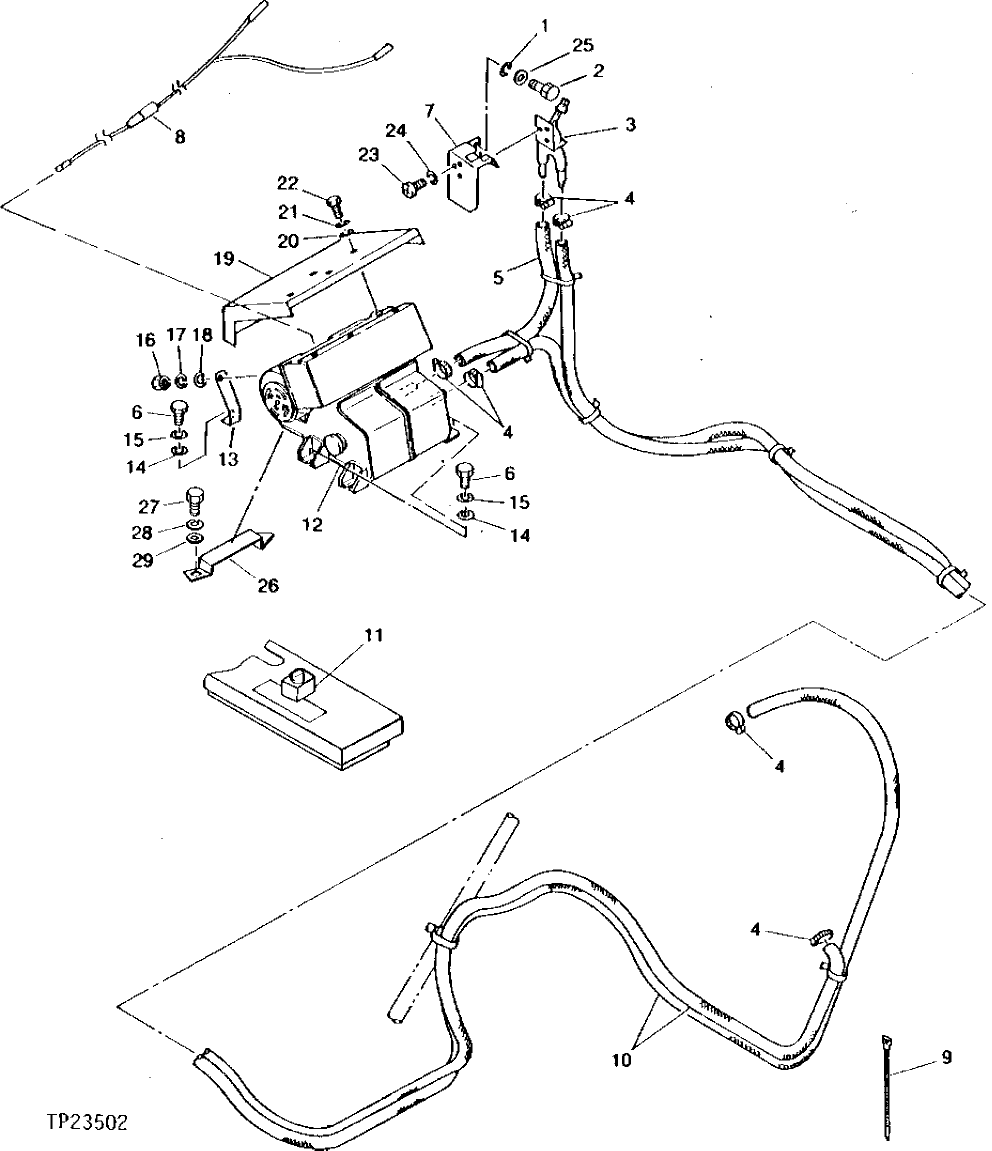

Схема запчастей John Deere 90 - 4 - CAB HEATER 1830 - OPERATORS STATION 18

Артикул

Название

Примечание

Количество

1

12M7006

LOCK WASHER

6 MM, (SUB FOR TH100548)

2шт.

2

19M7923

CAP SCREW

M6 X 12

2шт.

3

4115856

VALVE

(SUB FOR TH101085)

1шт.

4

WZ2141223

HOSE CLAMP

(SUB FOR AR21837, THIS APPLICATION) (SUB FOR AA34965)

6шт.

5

HOSE

(CUT TO LENGTH FROM T115300)

1шт.

6

19M7938

CAP SCREW

M10 X 20

5шт.

7

4125177

COVER

(SUB FOR TH101088)

1шт.

8

0228125

WIRING HARNESS

(SUB FOR TH101692)

1шт.

9

H77698

TIE BAND

(SUB FOR T44946)

ARшт.

10

HOSE

(CUT TO LENGTH FROM T115300)

2шт.

11

4110100

SWITCH

(SUB FOR TH101087)

1шт.

4184463

KNOB

(SUB FOR TH103612)

1шт.

12

4173750

HEATER

(SUB FOR TH105571) (13,500 BTU)

1шт.

13

4080636

BRACKET

(SUB FOR TH101086)

1шт.

14

24M7028

WASHER

10.500 X 20 X 2 MM, (SUB FOR TH100263)

5шт.

15

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

5шт.

16

14M7273

NUT

M8

1шт.

17

12M7056

LOCK WASHER

8 MM, (SUB FOR TH100529) (SUB FOR 12M7065)

1шт.

18

24M7055

WASHER

8.400 X 16 X 1.600 MM, (SUB FOR TH100280)

1шт.

19

7009413

COVER

(SUB FOR TH101092)

1шт.

20

24M7054

WASHER

6.400 X 12 X 1.600 MM, (SUB FOR TH100278)

4шт.

21

12M7006

LOCK WASHER

6 MM, (SUB FOR TH100548)

4шт.

22

19M7286

CAP SCREW

4шт.

23

21M7278

SCREW

M5 X 10

3шт.

24

12M7064

LOCK WASHER

5 MM, (SUB FOR TH100519)

3шт.

25

24M7054

WASHER

6.400 X 12 X 1.600 MM, (SUB FOR TH100278)

2шт.

26

2016220

BRACKET

(SUB FOR TH101093)

1шт.

27

19M7402

CAP SCREW

M10 X 25

2шт.

28

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

2шт.

29

24M7028

WASHER

10.500 X 20 X 2 MM, (SUB FOR TH100263)

2шт.

Выбрано товаров: 30
