Запчасти John Deere 90 22 - REAR VIEW MIRROR 1810 - OPERATORS STATION 18

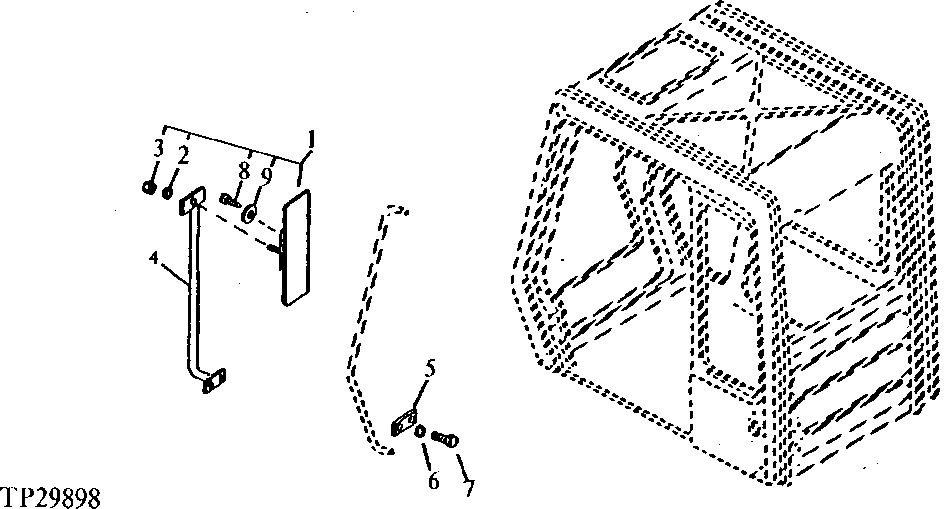

Схема запчастей John Deere 90 - 22 - REAR VIEW MIRROR 1810 - OPERATORS STATION 18

Артикул

Название

Примечание

Количество

1

4318135

REAR VIEW MIRROR

(SUB FOR AT103919, THIS APPLICATION) (SUB FOR AT121241) (ON FIRST TIME INSTALLATIONS ALSO ORDER (1) 4420724,(1) 8077830, (1) AT219494, (2) 12M7065 AND (2) AT131536

1шт.

2

12M7056

LOCK WASHER

8 MM (0.315") (SUB FOR 12M7065)

1шт.

3

14M7273

NUT

M8

1шт.

4

4420724

REAR VIEW MIRROR

(SUB FOR 8039961) ALONG WITH 8077830

1шт.

5

AT219494

CLAMP

(SUB FOR AT131743)

1шт.

6

12M7056

LOCK WASHER

8 MM (0.315") (SUB FOR 12M7065)

2шт.

7

19M8359

CAP SCREW

M8 X 45, (SUB FOR AT131536)

2шт.

8

21M7250

SCREW

M4 X 12

3шт.

9

12H315

LOCK WASHER

4.166 MM (0.164") (SUB FOR 12M7063)

3шт.

Выбрано товаров: 9
