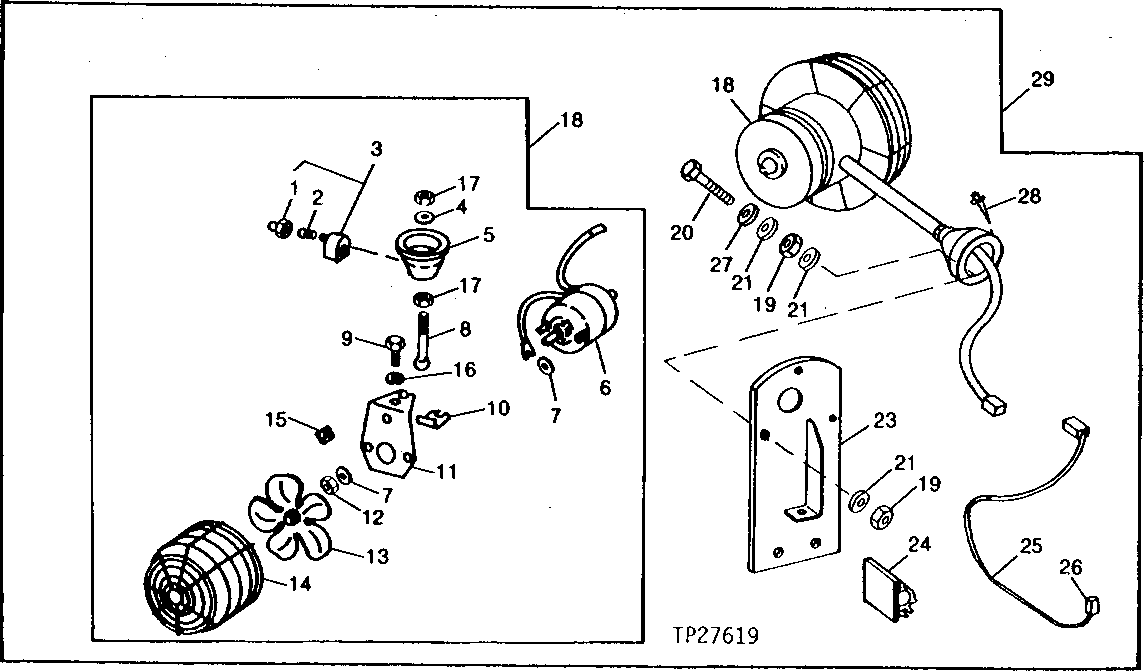

Запчасти John Deere 90 20 - CAB CIRCULATING FAN INSTALLATION 1810 - OPERATORS STATION 18

1

SWITCH

(SUB AU42189 OR AT41571)

1шт.

2

AT41570

BULB

1шт.

3

AU42189

SWITCH

(SUB FOR AT41571)

1шт.

4

12H310

LOCK WASHER

9.525 MM (3/8")

1шт.

5

BASE

( U46504 NO LONGER AVAILABLE)

1шт.

6

MOTOR

(SUB AT41568) ( AT41572 NO LONGER AVAILABLE)

1шт.

7

24H1283

WASHER

5.563 X 12.700 X 1.245 MM (7/32" X 1/2" X 0.049")

2шт.

8

ROD

( U46503 NO LONGER AVAILABLE)

1шт.

9

19H2664

CAP SCREW

7.925 X 19.050 MM (5/16" X 3/4")

1шт.

10

CLAMP

( U46501 NO LONGER AVAILABLE)

1шт.

11

CLAMP

( U46502 NO LONGER AVAILABLE)

1шт.

12

14H605

NUT

4.166 MM (0.164")

2шт.

13

AU43849

FAN BLADE

1шт.

14

AT55787

GUARD

1шт.

15

U46505

CLIP

6шт.

16

12H291

LOCK WASHER

7.938 MM (5/16")

1шт.

17

14H732

NUT

9.525 MM (3/8")

2шт.

18

AT41568

FAN

1шт.

19

14H605

NUT

4.166 MM (0.164")

3шт.

20

37H95

SCREW

3шт.

21

12M7084

LOCK WASHER

4.300 MM

9шт.

23

AT106904

BRACKET

1шт.

24

AT54892

CLIP

1шт.

25

T43753

WIRING LEAD

1шт.

26

TERMINAL

(NO LONGER REQUIRED)

1шт.

27

12H290

WASHER

4.166 MM (0.164")

3шт.

28

H85233

RIVET

4.750 MM (3/16")

3шт.

29

KIT

( AT106902 DEFROSTER FAN KIT NO LONGER AVAILABLE FOR SERVICE)

1шт.
