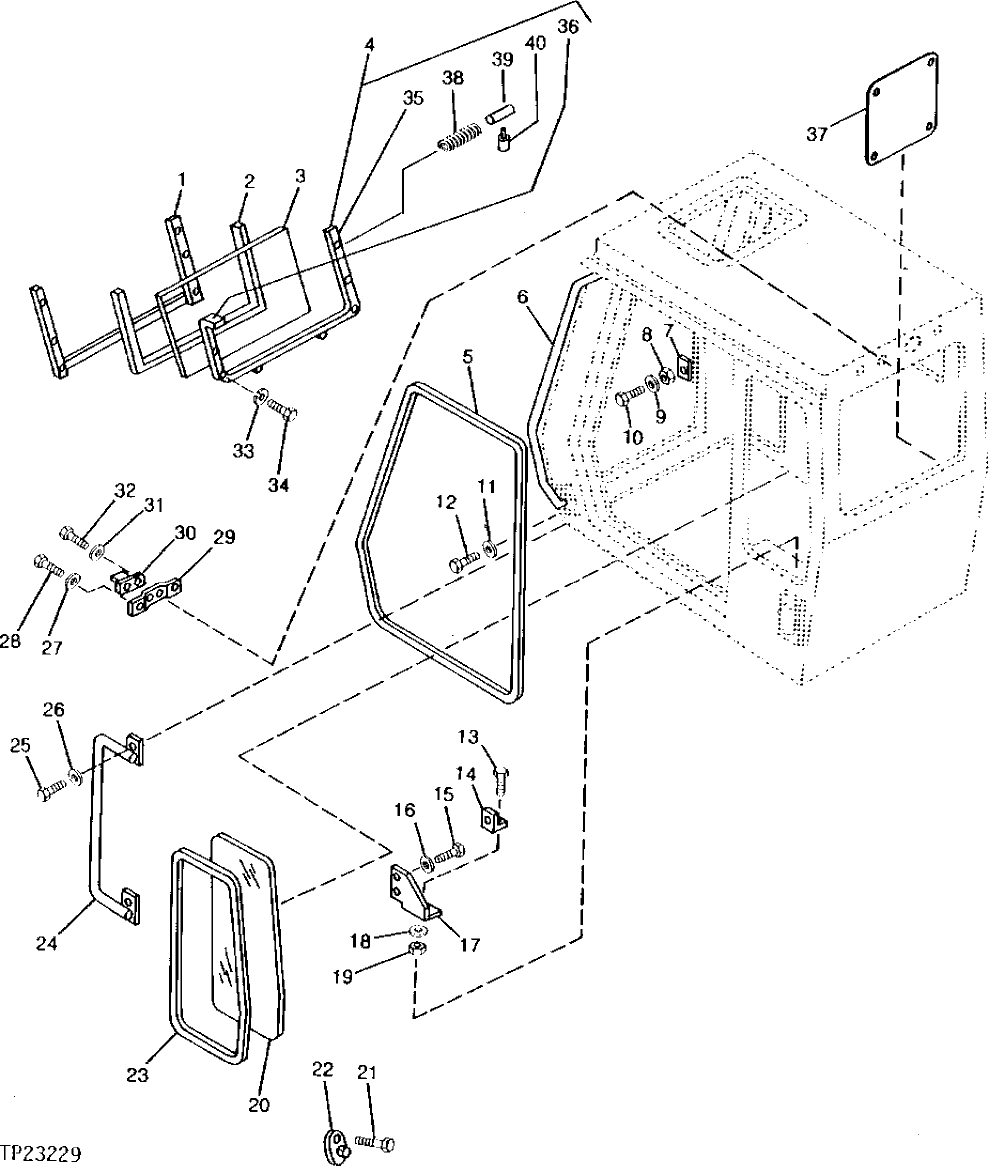

Запчасти John Deere 90 14 - CAB COMPONENTS 1810 - OPERATORS STATION 18

1

4158442

FRAME

(SUB FOR TH101112)

1шт.

2

4158445

ISOLATOR

(SUB FOR TH101115)

1шт.

3

TH101114

WINDOWPANE

1шт.

4

4186868

BRACKET

(SUB FOR TH101113) (SUB TH105478, ALSO ORDER TH104141 AND TH104142)

1шт.

4188113

FRAME

(SUB FOR TH105478)

1шт.

5

4128462

ISOLATOR

(SUB FOR TH101168)

1шт.

6

4158472

HANDRAIL

(SUB FOR TH101198)

1шт.

7

4158473

STOP

(SUB FOR TH101204)

4шт.

8

24M7054

WASHER

6.400 X 12 X 1.600 MM (0.252" X 0.472" X 0.063") (SUB FOR TH100278)

8шт.

9

12M7006

LOCK WASHER

6 MM (0.236") (SUB FOR TH100548)

8шт.

10

19M7375

CAP SCREW

M6 X 18

8шт.

11

12M7056

LOCK WASHER

8 MM (0.315") (SUB FOR TH100529) (SUB FOR 12M7065)

6шт.

12

19M7407

CAP SCREW

M8 X 25

6шт.

13

21M7022

SCREW

M5 X 20

4шт.

14

4158986

ISOLATOR

(SUB FOR TH101209)

1шт.

15

M111016

BOLT

(SUB FOR TH101213) (SUB FOR TH101200)

4шт.

16

12M7066

LOCK WASHER

10 MM (0.394") (SUB FOR TH100417)

4шт.

17

4158984

BRACKET

(SUB FOR TH101208)

1шт.

4186868

BRACKET

(SUB FOR TH104141)

1шт.

18

24M7027

WASHER

5.300 X 10 X 1 MM (0.209" X 0.394" X 0.039") (SUB FOR 24M7027)

4шт.

19

14M7297

NUT

M5

4шт.

20

TH101110

WINDOWPANE

1шт.

21

12M7082

LOCK WASHER

(SUB FOR TH101171) SUB 21M7297 ALONG WITH 12M7082

2шт.

21M7297

SCREW

M8 X 16

2шт.

12M7082

LOCK WASHER

8.400 MM (0.331")

2шт.

22

4347518

STRIKER

(SUB FOR TH101170 OR 4128473)

1шт.

23

4091399

ISOLATOR

(SUB FOR TH101111)

1шт.

24

4147923

HANDRAIL

(SUB FOR TH101199)

1шт.

25

M111016

BOLT

(SUB FOR TH101200)

4шт.

26

12M7066

LOCK WASHER

10 MM (0.394") (SUB FOR TH100417)

4шт.

27

12M7064

LOCK WASHER

5 MM (0.197") (SUB FOR TH100519)

2шт.

28

21M7278

SCREW

M5 X 10

2шт.

29

4152012

BRACKET

(SUB FOR TH101196)

1шт.

30

4388957

CATCH

( TH101138, 4084267 NLA)

1шт.

31

12H233

LOCK WASHER

3.175 MM (1/8") (SUB FOR TH100580) (SUB FOR 12M7048)

2шт.

32

21M7394

SCREW

M3 X 10, (SUB FOR TH100579)

2шт.

33

12M7006

LOCK WASHER

6 MM (0.236") (SUB FOR TH100548)

8шт.

34

19M7300

CAP SCREW

M6 X 10

8шт.

35

4178251

LOCK

(SUB FOR TH104125)

1шт.

36

4178252

LOCK

(SUB FOR TH104124)

1шт.

37

4158649

PLATE

(SUB FOR TH101577)

1шт.

21M7278

SCREW

M5 X 10

ARшт.

12M7064

LOCK WASHER

5 MM (0.197") (SUB FOR TH100519)

ARшт.

38

4194501

SPRING

(SUB FOR TH106779)

2шт.

39

4194499

PIN FASTENER

(SUB FOR TH106777)

2шт.

40

4194500

LEVER

(SUB FOR TH106778)

2шт.
