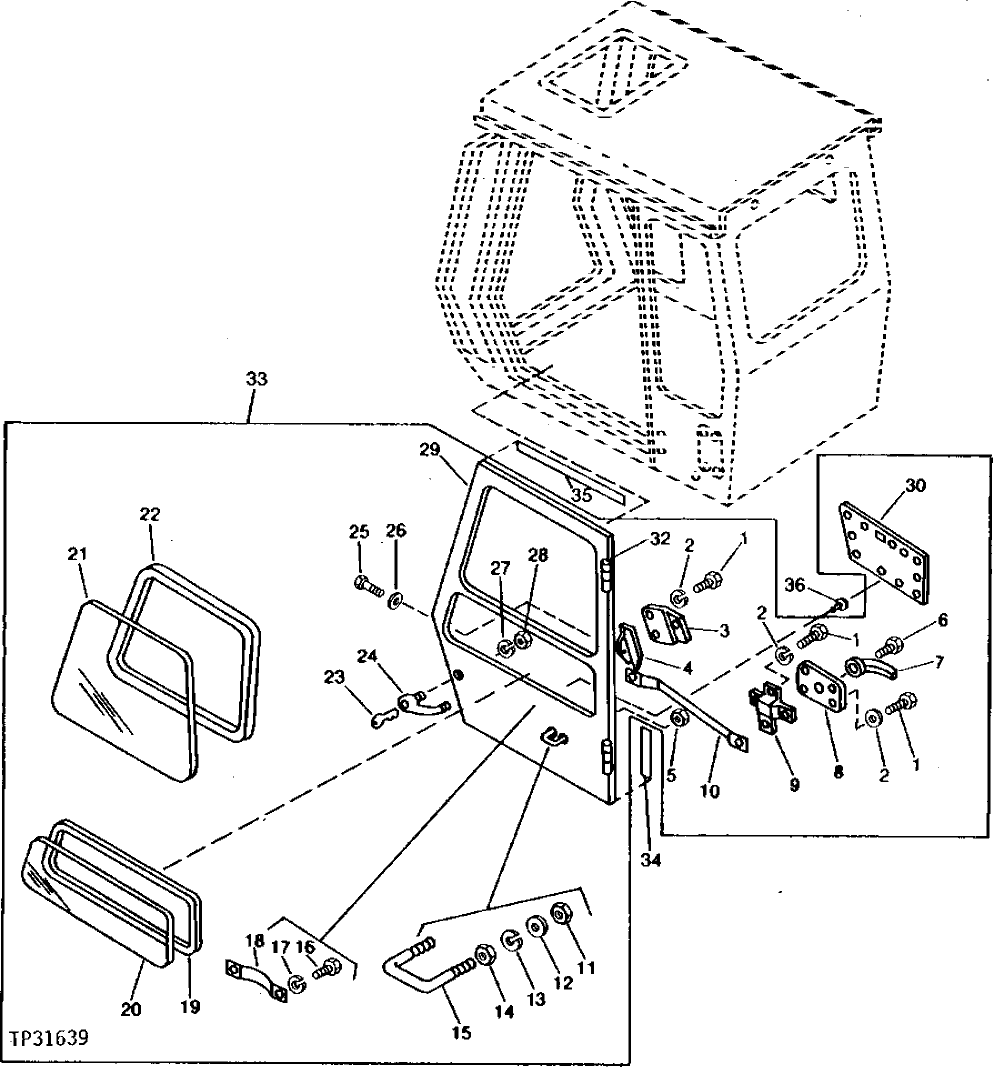

Запчасти John Deere 90 12 - CAB DOOR ASSEMBLY 1810 - OPERATORS STATION 18

1

21M7278

SCREW

M5 X 10

11шт.

2

12M7064

LOCK WASHER

5 MM (0.197") (SUB FOR TH100519)

11шт.

3

4158461

COVER

(SUB FOR TH101158)

1шт.

4

4128454

LOCK

(SUB FOR TH101151)

1шт.

5

4084302

ISOLATOR

(SUB FOR TH101162)

2шт.

6

M470513

CAP SCREW

(SUB FOR TH101156)

1шт.

7

4128460

HANDLE

(SUB FOR TH101155)

1шт.

8

4147904

COVER

(SUB FOR TH101154)

1шт.

9

4128455

LEVER

(SUB FOR TH101153)

1шт.

10

4147903

ROD

(SUB FOR TH101152)

1шт.

11

14M7444

NUT

M10, (SUB FOR TH100255)

2шт.

12

24M7028

WASHER

10.500 X 20 X 2 MM (0.413" X 0.787" X 0.079") (SUB FOR TH100263)

4шт.

13

12M7066

LOCK WASHER

10 MM (0.394") (SUB FOR TH100417)

4шт.

14

14M7444

NUT

M10, (SUB FOR TH100255)

2шт.

15

4128461

U-BOLT

(SUB FOR TH101161)

1шт.

16

21M7325

SCREW

M5 X 30

8шт.

17

12M7064

LOCK WASHER

5 MM (0.197") (SUB FOR TH100519)

8шт.

18

4089005

HANDLE

(SUB FOR TH101159)

2шт.

19

4503184

ISOLATOR

(SUB FOR TH101166)

1шт.

20

TH101165

WINDOWPANE

1шт.

21

TH101163

WINDOWPANE

1шт.

22

4105784

ISOLATOR

(SUB FOR TH101164)

1шт.

23

4158653

KEY

(SUB FOR TH101605) CAB AND SERVICE DOOR

1шт.

24

4177190

HANDLE

(SUB FOR TH101157)

1шт.

25

21M7288

SCREW

M6 X 10, (SUB FOR TH100547)

3шт.

26

12M7006

LOCK WASHER

6 MM (0.236") (SUB FOR TH100548)

3шт.

27

12M7056

LOCK WASHER

8 MM (0.315") (SUB FOR TH100529) (SUB FOR 12M7065)

2шт.

28

14M7273

NUT

M8

2шт.

29

DOOR

(SUB TH107032) (SUB FOR TH101150 AND TH107033)

1шт.

30

4188527

PANEL

(SUB FOR TH103606)

1шт.

31

M111025

BOLT

(SUB FOR TH101167) (NOT ILLUSTRATED) FOR DOOR HINGES

6шт.

32

4093295

HINGE

(SUB FOR TH108192)

2шт.

33

4198942

DOOR

(SUB FOR TH101149) (SUB FOR TH107032)

1шт.

34

4128462

ISOLATOR

(SUB FOR TH101168)

1шт.

35

4128462

ISOLATOR

(SUB FOR TH101168)

1шт.

36

4204607

CLIP

(SUB FOR TH108690)

1шт.
