Запчасти John Deere 90 8 - VANDAL COVERS 1810 - OPERATORS STATION 18

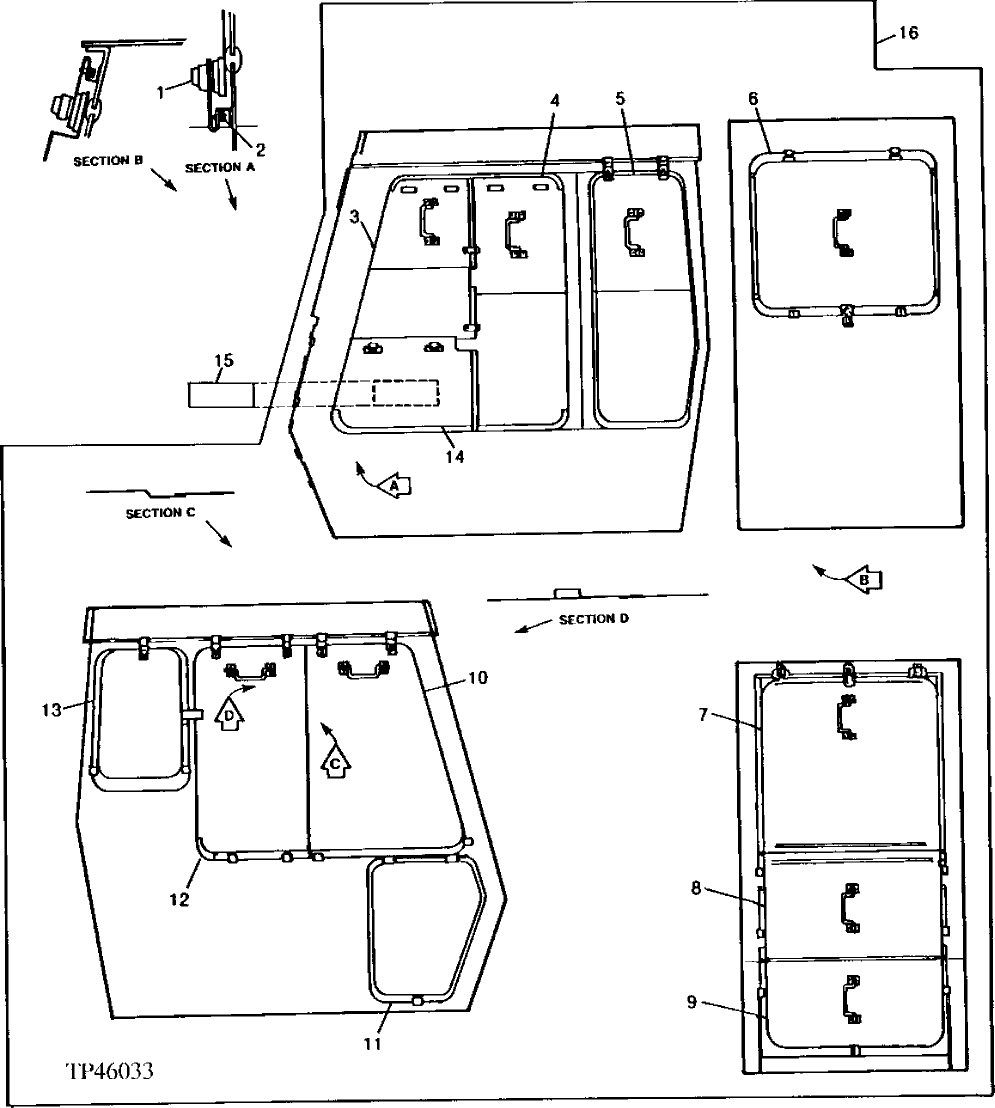

Схема запчастей John Deere 90 - 8 - VANDAL COVERS 1810 - OPERATORS STATION 18

Артикул

Название

Примечание

Количество

1

4103331

LOCK

(SUB FOR TH101334) (CONTAINS TH110109 HINGE AND TH103382 KEY)

7шт.

4133666

KEY

(SUB FOR TH103382)

2шт.

4210115

HINGE

(SUB FOR TH110109)

1шт.

2

21M7258

SCREW

M4 X 8, (SUB FOR TH101144)

42шт.

3

COVER

DOOR, UPPER FRONT ( TH106343 NO LONGER AVAILABLE)

1шт.

4

COVER

REAR DOOR ( TH106342 NO LONGER AVAILABLE)

1шт.

5

COVER

LEFT, REAR WINDOW ( TH106341 NO LONGER AVAILABLE)

1шт.

6

COVER

REAR ( TH106349 NO LONGER AVAILABLE)

1шт.

7

COVER

FRONT, TOP ( TH106338 NO LONGER AVAILABLE)

1шт.

8

COVER

FRONT, CENTER, ( TH106339 NO LONGER AVAILABLE)

1шт.

9

COVER

FRONT, BOTTOM ( TH106340 NO LONGER AVAILABLE)

1шт.

10

COVER

RIGHT, FRONT ( TH106347 NO LONGER AVAILABLE)

1шт.

11

TH101330

COVER

(USE IF AVAILABLE)

1шт.

12

COVER

RIGHT, CENTER, ( TH106348 NO LONGER AVAILABLE)

1шт.

13

COVER

RIGHT, REAR, ( TH106346 NO LONGER AVAILABLE)

1шт.

14

COVER

DOOR, LOWER FRONT, ( TH106344 NO LONGER AVAILABLE)

1шт.

15

2024941

LABEL

(SUB FOR T107178) VANDAL COVER

1шт.

16

TH105526

COVER

(ALSO ORDER T107178) WHOLEGOODS ( TH106785 RETRO FIT KIT REQUIRED ON UNITS WITH SERIAL NUMBERS 010914 OR BELOW)

1шт.

TH106785

KIT

WHOLEGOODS RETRO FIT KIT

1шт.

Выбрано товаров: 19
