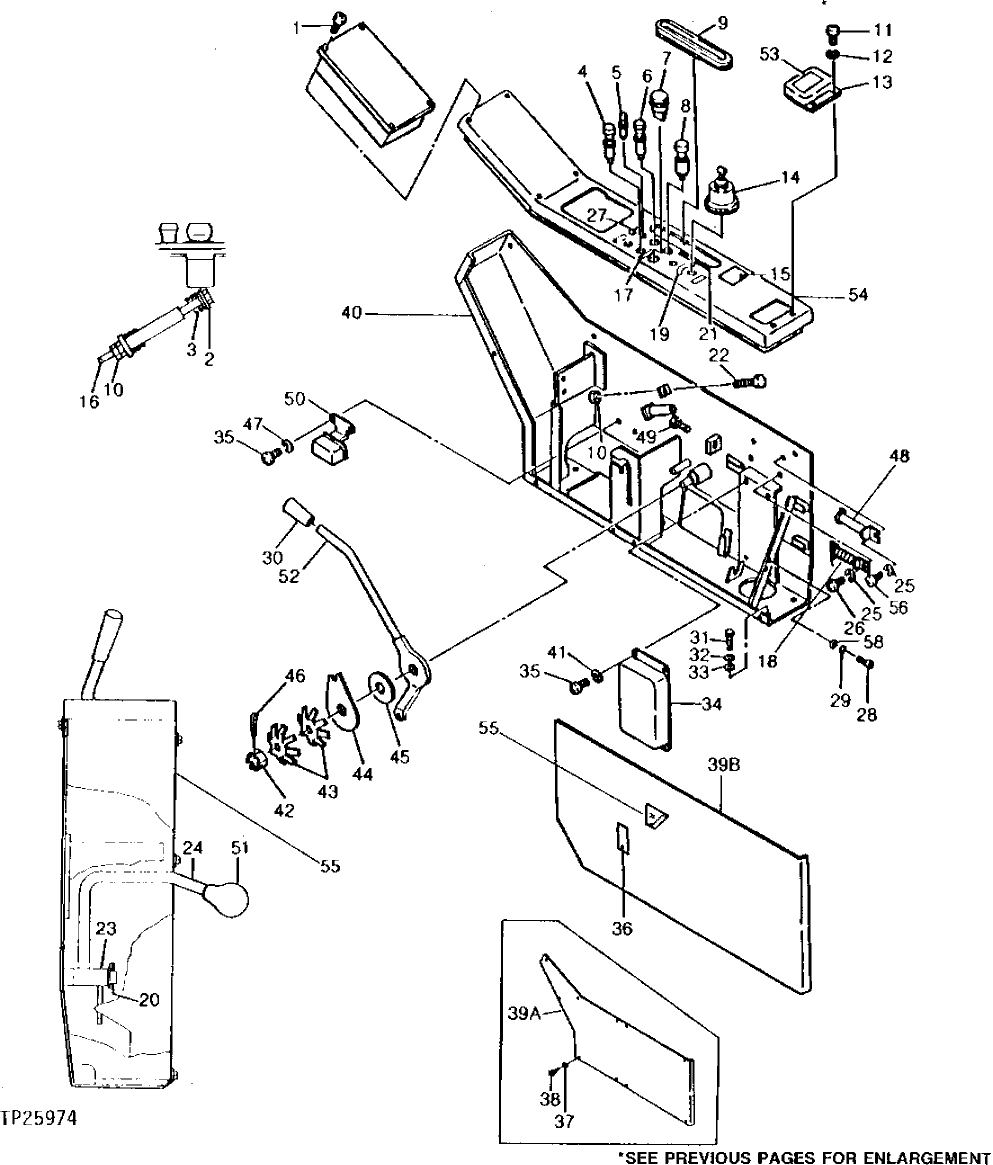

Запчасти John Deere 90 4 - CONSOLE AND SWITCHES 1810 - OPERATORS STATION 18

1

21M7326

SCREW

M6 X 20, (SUB FOR TH100573)

4шт.

2

4053156

RETAINER

(SUB FOR TH100569)

1шт.

3

4034521

SPRING

(SUB FOR TH100570)

1шт.

4

4009556

SWITCH

(SUB FOR TH100576) WIPER

1шт.

5

4266984

SWITCH

(SUB FOR TH100574) BUZZER

1шт.

4199091

LABEL

(SUB FOR TH107035)

1шт.

6

4110106

SWITCH

(SUB FOR TH100575) LIGHT

1шт.

7

4155755

SWITCH

(SUB FOR TH101582) START AID

1шт.

8

AT78633

HOUSING

(SUB FOR 4115360) (12 VOLT)

1шт.

AT78634

WIRING LEAD

(SUB FOR 4115360) (12 VOLT)

1шт.

AR60937

ELECTRICAL LIGHTER

(SUB FOR 4115360) (12 VOLT)

1шт.

AU42809

RESISTOR

(SUB FOR 4115360) (12 VOLT)

1шт.

4357862

ELECTRICAL LIGHTER

(SUB FOR AT190190) (24 VOLT)

1шт.

9

TH100586

GROMMET

1шт.

10

14M7274

NUT

M10

6шт.

11

21M7246

SCREW

M6 X 16, (SUB FOR TH100583)

2шт.

12

24M7054

WASHER

6.400 X 12 X 1.600 MM (0.252" X 0.472" X 0.063") (SUB FOR TH100584)

2шт.

13

4123095

FUSE BOX

(SUB FOR TH100582)

1шт.

AT39227

FUSE

15 AMP, (15A) (SUB FOR TH104047)

7шт.

AH84167

FUSE

30 AMP, (30A) (SUB FOR TH104048)

1шт.

14

4237505

SWITCH

(SUB FOR TH101580 OR 4186744) STARTING

1шт.

4237505

SWITCH

(SUB FOR TH108551 OR 4186744) (STARTER)

1шт.

15

4121153

LABEL

(SUB FOR TH100577) HEATER

1шт.

16

M261004

BOLT

(SUB FOR TH100568)

1шт.

17

4158722

SAFETY SIGN

(SUB FOR TH101585) EITHER STARTING AID

1шт.

18

AU42809

RESISTOR

CIGAR LIGHTER

1шт.

19

4156660

LABEL

(SUB FOR TH101586) STARTER SWITCH

1шт.

20

M40461

PIN

(SUB FOR TH100590)

1шт.

21

4146722

LABEL

(SUB FOR TH100596) FUEL LEVEL

1шт.

22

TH100567

BOLT

2шт.

23

24M7053

WASHER

17 X 30 X 3 MM (0.669" X 1.181" X 0.118") (SUB FOR TH100520)

1шт.

24

8025944

LEVER

(SUB FOR TH100589)

1шт.

25

12H233

LOCK WASHER

3.175 MM (1/8") (SUB FOR TH100580) (SUB FOR 12M7048)

4шт.

26

21M7394

SCREW

M3 X 10, (SUB FOR TH100579)

2шт.

27

4192738

LABEL

(SUB FOR TH100593) BUZZER STOP

1шт.

28

21M7278

SCREW

M5 X 10

2шт.

29

12M7064

LOCK WASHER

5 MM (0.197") (SUB FOR TH100519)

2шт.

30

4162336

GRIP

(SUB FOR TH100561)

1шт.

TH100586

GROMMET

1шт.

31

19M7402

CAP SCREW

M10 X 25

6шт.

32

12M7066

LOCK WASHER

10 MM (0.394") (SUB FOR TH100417)

6шт.

33

24M7028

WASHER

10.500 X 20 X 2 MM (0.413" X 0.787" X 0.079") (SUB FOR TH100263)

6шт.

34

4129244

MICROPROCESSOR

(SUB FOR TH100592)

1шт.

35

21M7288

SCREW

M6 X 10, (SUB FOR TH100547)

6шт.
