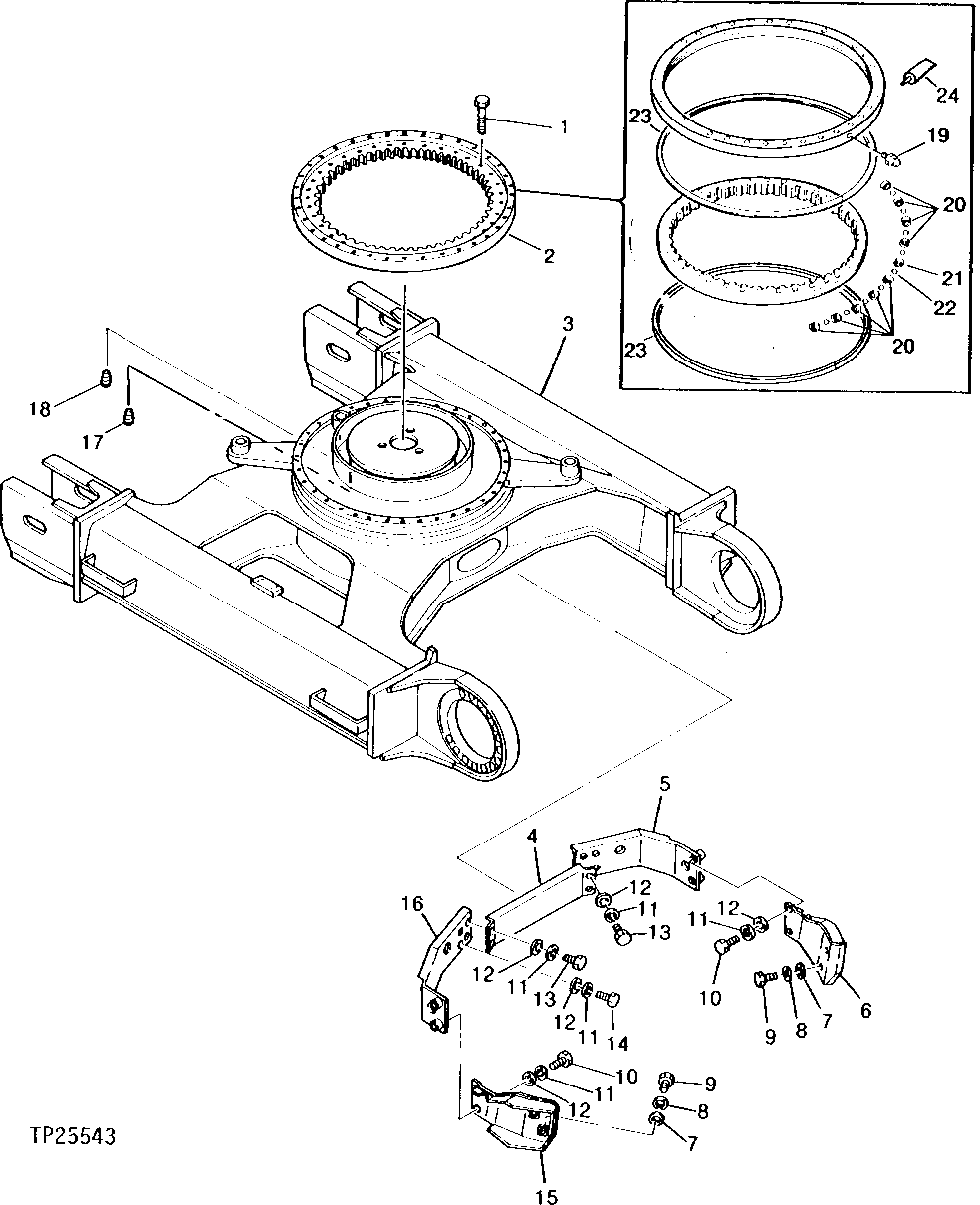

Запчасти John Deere 90 4 - TRACK FRAME 1740 - FRAME, CHASSIS OR SUPPORTING STRUCTURE 17

1

J931800

CAP SCREW

(SUB FOR TH100620)

36шт.

2

9045260

SWING BEARING

(SUB FOR TH101284)

1шт.

3

FRAME

( TH101282 NO LONGER AVAILABLE)

1шт.

4

3027507

COVER

(SUB FOR TH101288)

1шт.

5

8027492

COVER

(SUB FOR TH101290)

1шт.

6

7015718

COVER

(SUB FOR TH101287) (SUB TH110118)

1шт.

7015718

COVER

(SUB FOR TH110118)

1шт.

7

24H1748

WASHER

1/2" X 1-1/4" X 0.105", (SUB FOR TH101254)

4шт.

8

12H301

LOCK WASHER

1/2", (SUB FOR TH100413)

4шт.

9

19M7493

CAP SCREW

M12 X 40

4шт.

10

19M7742

CAP SCREW

M10 X 65

4шт.

11

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

12шт.

12

24M7101

WASHER

11 X 34 X 3 MM, (SUB FOR TH101289)

12шт.

13

19M7402

CAP SCREW

M10 X 25

4шт.

14

19M8499

CAP SCREW

M10 X 60

4шт.

15

7015717

COVER

(SUB FOR TH101286) (SUB TH110117)

1шт.

7015717

COVER

(SUB FOR TH110117)

1шт.

16

8027491

COVER

(SUB FOR TH101291)

1шт.

17

94-2024

FITTING PLUG

(SUB FOR TH101292)

1шт.

18

94-2028

FITTING PLUG

(SUB FOR TH101283)

1шт.

19

TH100074

LUBRICATION FITTING

3шт.

20

4127708

SPACER

(SUB FOR TH104232)

97шт.

21

4127707

SPACER

(SUB FOR TH104233)

12шт.

22

4428919

BALL

(SUB FOR AT182113 AND TH104229 AND 4355728) (SET OF 109 BALLS)

ARшт.

23

T203958

SEAL

(SUB FOR T191211, TH104231, TH104230, TH103078 OR TH108166, AT131732 AND AT131484) (ALSO ORDER TY21517 AND AT66866) (SUB FOR 4199645)

2шт.

TY21517

ADHESIVE

(NOT ILLUSTRATED)

ARшт.

AT66866

FLUID

(NOT ILLUSTRATED)

ARшт.

24

TY21517

ADHESIVE

1шт.
