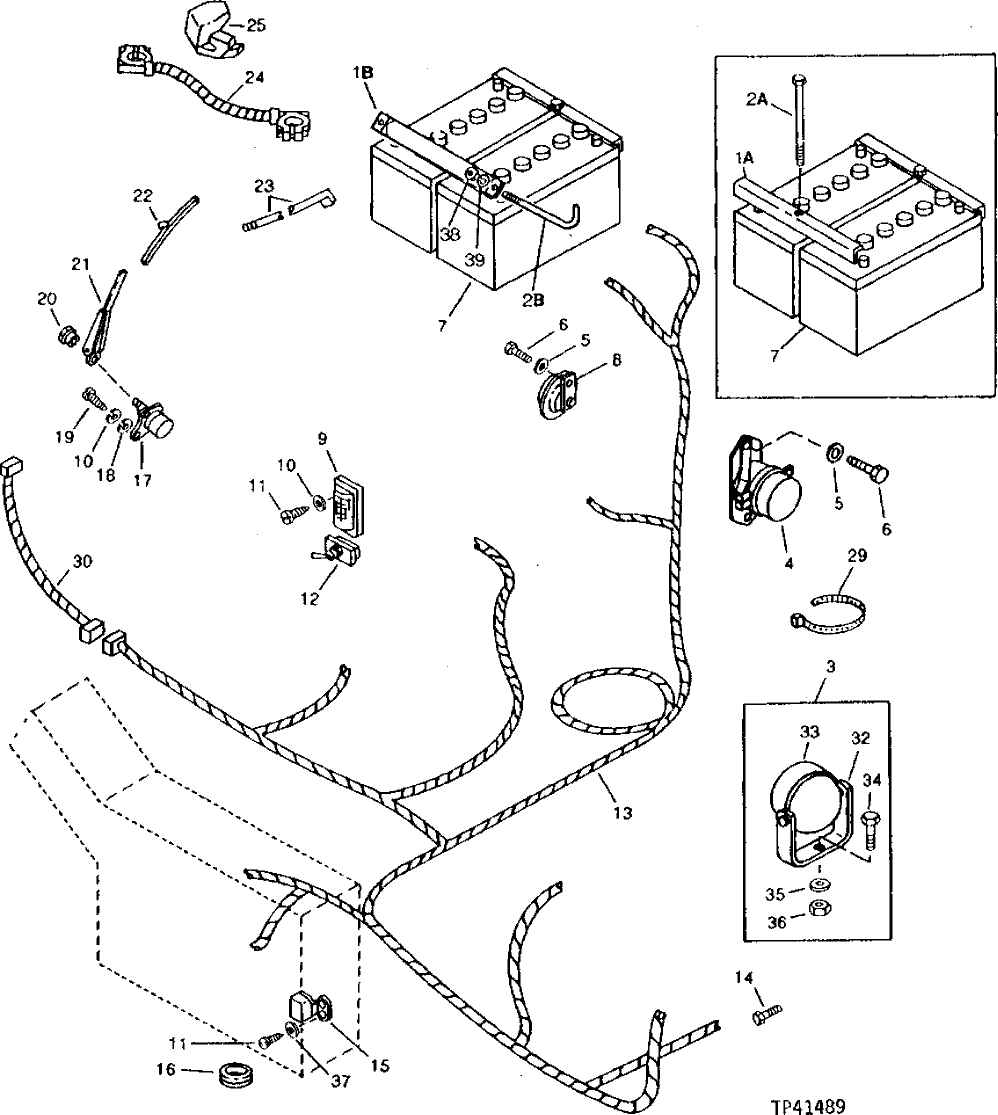

Запчасти John Deere 90 2 - BATTERIES AND MAIN WIRING HARNESS 1671 - ELECTRICAL SYSTEMS 16

1A

4131299

ANGLE

(SUB FOR TH100525) (USE WITH ORIGINAL BATTERY)

2шт.

1B

T79470

ANGLE

(USE WITH REPLACEMENT BATTERY)

2шт.

2A

TH100526

CAP SCREW

(USE WITH ORIGINAL BATTERY)

2шт.

2B

T79471

HOOK BOLT

(USE WITH REPLACEMENT BATTERY)

2шт.

3

214771

LAMP

(SUB FOR TH100542)

2шт.

4

4034634

RELAY

(SUB FOR TH100527) BATTERY

1шт.

5

12M7056

LOCK WASHER

8 MM, (SUB FOR TH100529) (SUB FOR 12M7065)

5шт.

6

19M7932

CAP SCREW

M8 X 16

5шт.

7

TY6106

DRY CHARGED BATTERY

12-VOLT 570 COLD CRANKING AMPS AT 17.8C (O.F) 180 MINUTE RESERVE CAPACITY AT 25 AMPS (USE IF AVAILABLE) (SUB FOR TH100524 AND AT29160) (ALSO ORDER 14M7274)

2шт.

TY21741

DRY CHARGED BATTERY

(SUB FOR TY6106)

2шт.

8

AT64237

HORN

(SUB FOR TH100541)

1шт.

9

973204

LAMP

(SUB FOR TH100533)

1шт.

57M7122

BULB

(SUB FOR TH104100 AND AT42033)

1шт.

10

24H1287

WASHER

9/32" X 5/8" X 0.065"

2шт.

11

19H1914

CAP SCREW

1/4" X 1"

2шт.

12

AH87806

SWITCH

(SUB FOR 4514468) (ALSO ORDER R44097)

1шт.

13

TH110110

WIRING HARNESS

(SUB FOR TH101575) (SUB TH110110 AND TH110111)

1шт.

TH110110

WIRING HARNESS

1шт.

14

19M7938

CAP SCREW

M10 X 20

1шт.

15

AT145341

RELAY

STARTER SOLENOID RELAY, (ALSO ORDER AT107364) (SUB FOR AT85258)

1шт.

14M7165

LOCK NUT

M6, (STARTER RELAY TERMINALS)

2шт.

16

4509404

GROMMET

(SUB FOR TH100553)

1шт.

17

MOTOR

(SUB 4151076, 4050479, 4101832 AND TY16304) (ALSO ORDER TY16323) WIPER KIT ( 4051547 NO LONGER AVAILABLE)

1шт.

4151076

WIPER MOTOR

(SUB FOR TH102156)

1шт.

18

24M7027

WASHER

5.300 X 10 X 1 MM, (SUB FOR TH100540)

2шт.

19

21M7278

SCREW

M5 X 10

2шт.

20

4050479

NUT

(SUB FOR 14M7272) (SUB FOR TH100539) (USE WITH TH102156 MOTOR)

1шт.

21

4101832

ARM

(SUB FOR TH101574) (15 1/2 INCH - 393 MM) (SILVER) (USE IF AVAILABLE)

1шт.

4101832

ARM

(SUB FOR TH101574) (SUB FOR TH105993) (BLACK)

1шт.

22

WIPER BLADE

TH101573 NO LONGER AVAILABLE, (SUB TY16303) (ALSO ORDER TY16323) (19.05 INCH - 484 MM) (SILVER)

1шт.

TY16304

WIPER BLADE

(SUB FOR 4257132) (ALSO ORDER TY16323) (BLACK)

1шт.

23

AN122085

BATTERY CABLE

POSITIVE POST ON BATTERY TO STARTER SOLENOID

1шт.

24

AT72162

BATTERY CABLE

BATTERY NEGATIVE POST TO 2ND BATTERY POSITIVE POST

1шт.

AT10252

BATTERY CABLE

M86133 BATTERY NEGATIVE POST TO BATTERY RELAY

1шт.

25

M86133

COVER

POSITIVE POST COVER

1шт.

26

AT28077

FUSE

10-AMP (IN LINE HEATER) (NOT ILLUSTRATED)

1шт.

27

AT39227

FUSE

15-AMP (FUSE BLOCK) (NOT ILLUSTRATED)

7шт.

28

AH84167

FUSE

(FUSE BLOCK) (NOT ILLUSTRATED)

1шт.

29

H77698

TIE BAND

(SUB FOR T44946)

ARшт.

30

4210035

WIRING HARNESS

(SUB FOR TH110111)

1шт.

31

AT107364

KIT

(USE WITH AT85258 OR AT145341) (NOT ILLUSTRATED)

1шт.

32

AU42754

LAMP

1шт.

BULB

(SUB AU42754)

1шт.

33

4053982

BEZEL

(SUB FOR TH104070)

2шт.

34

J901425

CAP SCREW

(SUB FOR TH104071)

1шт.

35

12H317

LOCK WASHER

9/16"

1шт.

36

14M7174

LOCK NUT

M24

1шт.

37

T82793

NUT

2шт.

38

14M7298

FLANGE NUT

M8

4шт.

39

24M7298

WASHER

8.400 X 25 X 2 MM, (SUB FOR 24M7207)

4шт.
