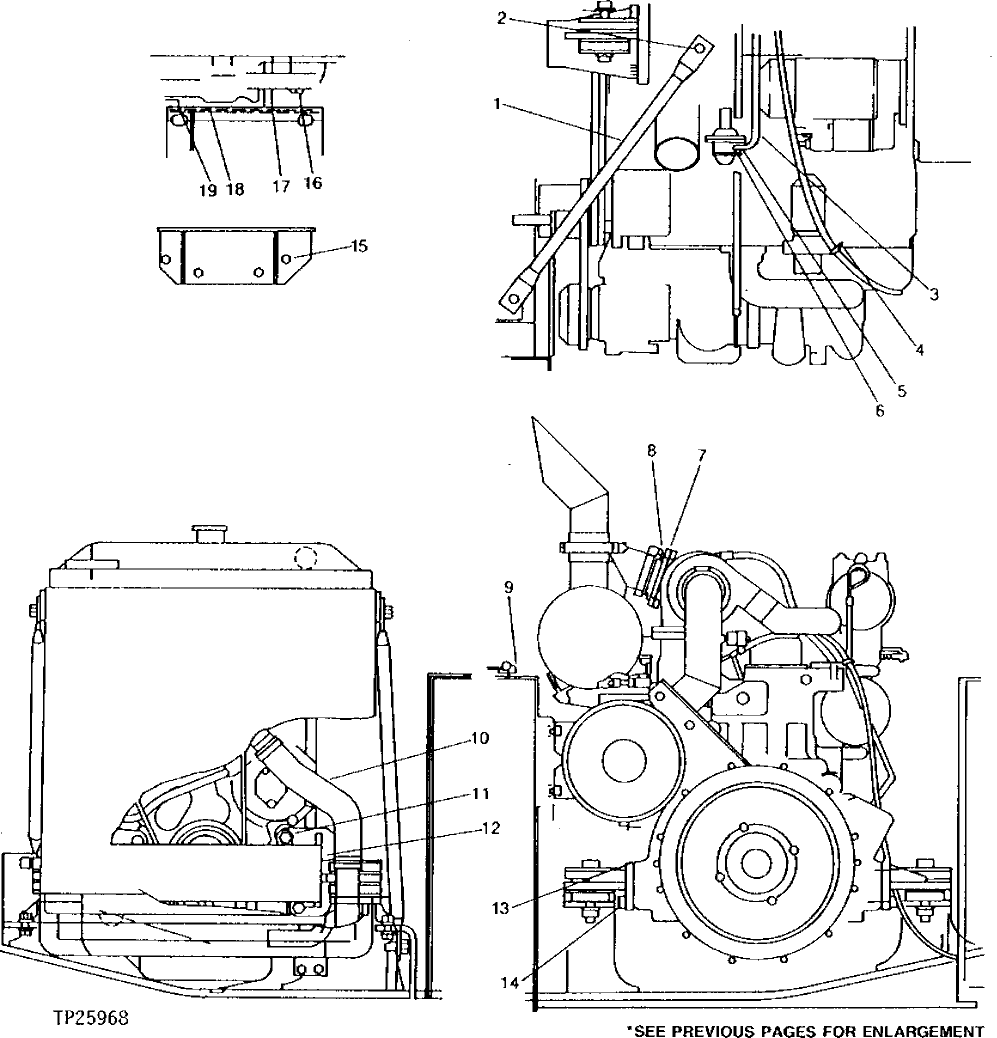

Запчасти John Deere 90 2 - ENGINE AUXILIARY SYSTEM 530 - ENGINE AUXILIARY SYSTEMS 5

1

4155331

SUPPORT

(SUB FOR TH100864)

1шт.

2

19M8035

CAP SCREW

M16 X 35

4шт.

12H294

LOCK WASHER

5/8", (SUB FOR TH100466)

8шт.

14M7276

NUT

M16

1шт.

3

HOSE

(FUEL LINE TO ENGINE AND FUEL LEAK-OFF LINE BACK TO THE FUEL BANK) ( TH100895 NO LONGER AVAILABLE) (CUT TO LENGTH FROM M87571 BULK MATERIAL)

2шт.

T83427

CONDUIT

(FUEL LINE TO ENGINE AND FUEL LEAK-OFF LINE BACK TO THE FUEL TANK)

2шт.

4

TY22464

CLAMP

(SUB FOR TH100896) (SUB FOR AT145649) (SUB FOR AR21836)

4шт.

5

R67293

FITTING

(SUB FOR TH100897) EXHAUST PIPE

1шт.

6

H77698

TIE BAND

(SUB FOR T44946)

4шт.

7

9719771

EXHAUST PIPE

(SUB FOR TH100880) ADAPTOR WITH SQUARE MOUNTING PLATE

1шт.

8

19M7358

CAP SCREW

M10 X 40

4шт.

14M7274

NUT

M10

8шт.

9

14M7274

NUT

M10

4шт.

10

3028693

RADIATOR HOSE

(SUB FOR TH100868) LOWER WATER PUMP

1шт.

11

19H2706

CAP SCREW

5/8" X 2"

4шт.

12H294

LOCK WASHER

5/8", (SUB FOR TH100886)

4шт.

12

7013845

BRACKET

(SUB FOR TH100885)

1шт.

13

8028462

BRACKET

(SUB FOR TH100892)

2шт.

14

19H2993

CAP SCREW

1/2" X 1-1/2"

8шт.

12H301

LOCK WASHER

1/2", (SUB FOR TH100893)

8шт.

15

19H3141

CAP SCREW

3/8" X 5-1/2", (SUB FOR TH100879) MUFFLER BRACKET TO EXHAUST MANIFOLD

4шт.

16

4155332

SPACER

(SUB FOR TH100875) MUFFLER BRACKET TO EXHAUST MANIFOLD

1шт.

17

4155333

SPACER

(SUB FOR TH100876) MUFFLER BRACKET TO EXHAUST MANIFOLD

1шт.

18

4155334

SPACER

(SUB FOR TH100877) MUFFLER BRACKET TO EXHAUST MANIFOLD

1шт.

19

4155335

SPACER

(SUB FOR TH100878) MUFFLER BRACKET TO EXHAUST MANIFOLD

1шт.
