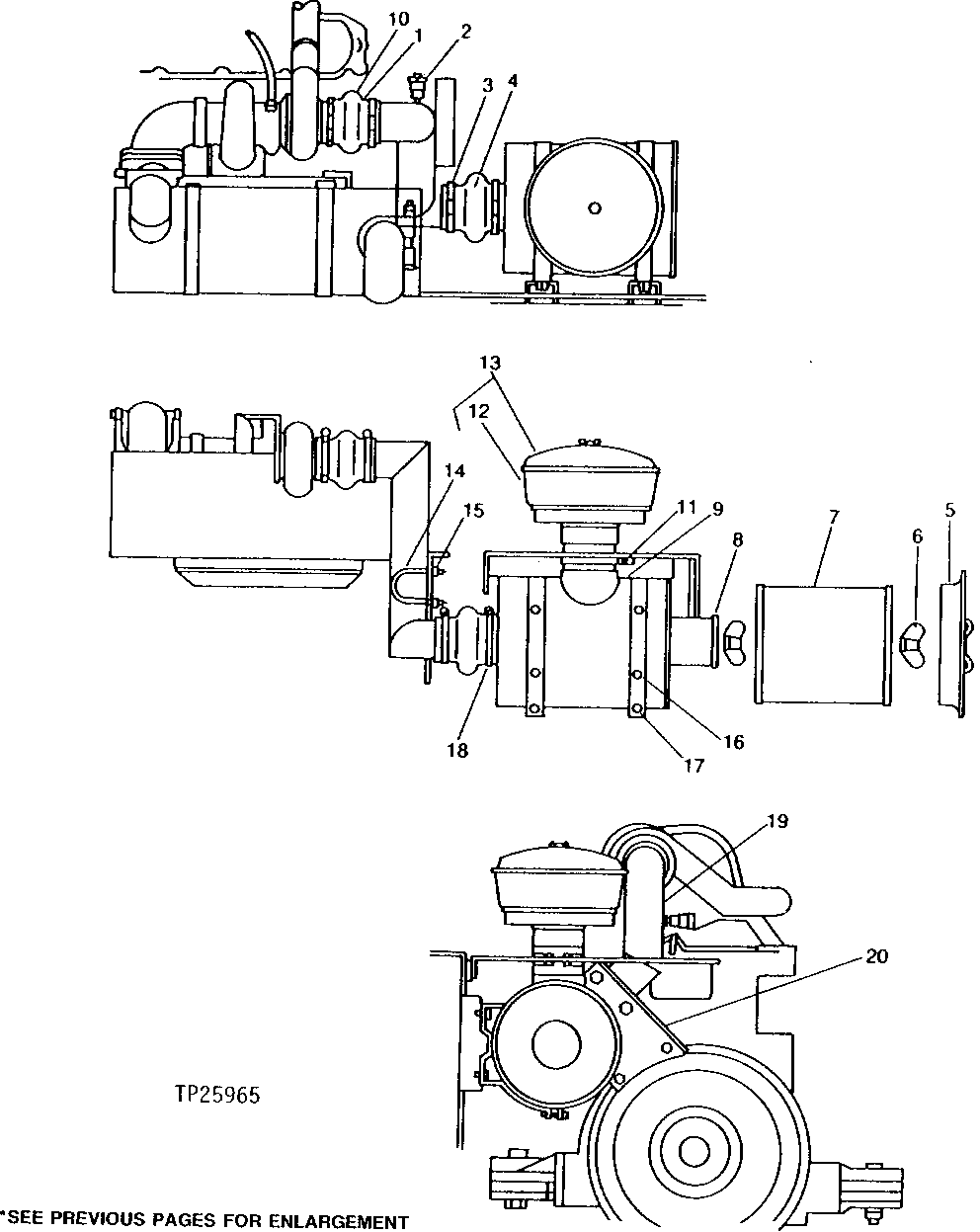

Запчасти John Deere 90 2 - AIR CLEANER 520 - ENGINE AUXILIARY SYSTEMS 5

1

4014035

SUCTION HOSE

(SUB FOR TH100927)

1шт.

2

4224238

INDICATOR

(SUB FOR TH100933 OR TH108915) (SUB FOR AT131922)

1шт.

3

AT37476

HOSE CLAMP

(SUB FOR AR21841, THIS APPLICATION)

5шт.

4

4155756

SUCTION HOSE

(SUB FOR TH100926)

1шт.

5

AT71475

COVER

(SUB FOR TH100921)

1шт.

6

AH20849

WING NUT

(SUB FOR TH100920)

2шт.

7

AT39124

FILTER ELEMENT

1шт.

8

AT31227

FILTER ELEMENT

1шт.

9

4158654

BASE

(SUB FOR TH100917)

1шт.

10

4162337

INSULATOR

(SUB FOR TH101607)

1шт.

11

AH81443

AIR INTAKE STACK

(SUB FOR TH100922)

1шт.

12

R28795

DUST BOWL

(SUB FOR TH100923)

1шт.

BASE

( AH61828 - USE IF AVAILABLE)

1шт.

AR1729R

COVER

1шт.

13

AT27822

PRECLEANER

(SUB FOR M81611, THIS APPLICATION)

1шт.

14

4179654

U-BOLT

(SUB FOR TH100932)

1шт.

15

14M7444

NUT

M10, (SUB FOR TH100255)

4шт.

16

19M8324

CAP SCREW

M10 X 16, (SUB FOR TH100925)

4шт.

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

4шт.

17

AR35435

CLAMP

2шт.

18

AT37477

HOSE CLAMP

(SUB FOR AR21842, THIS APPLICATION) (SUB FOR TH100929)

1шт.

19

8028508

LINE

(SUB FOR TH100930)

1шт.

20

3028665

BRACKET

(SUB FOR TH100931)

1шт.
