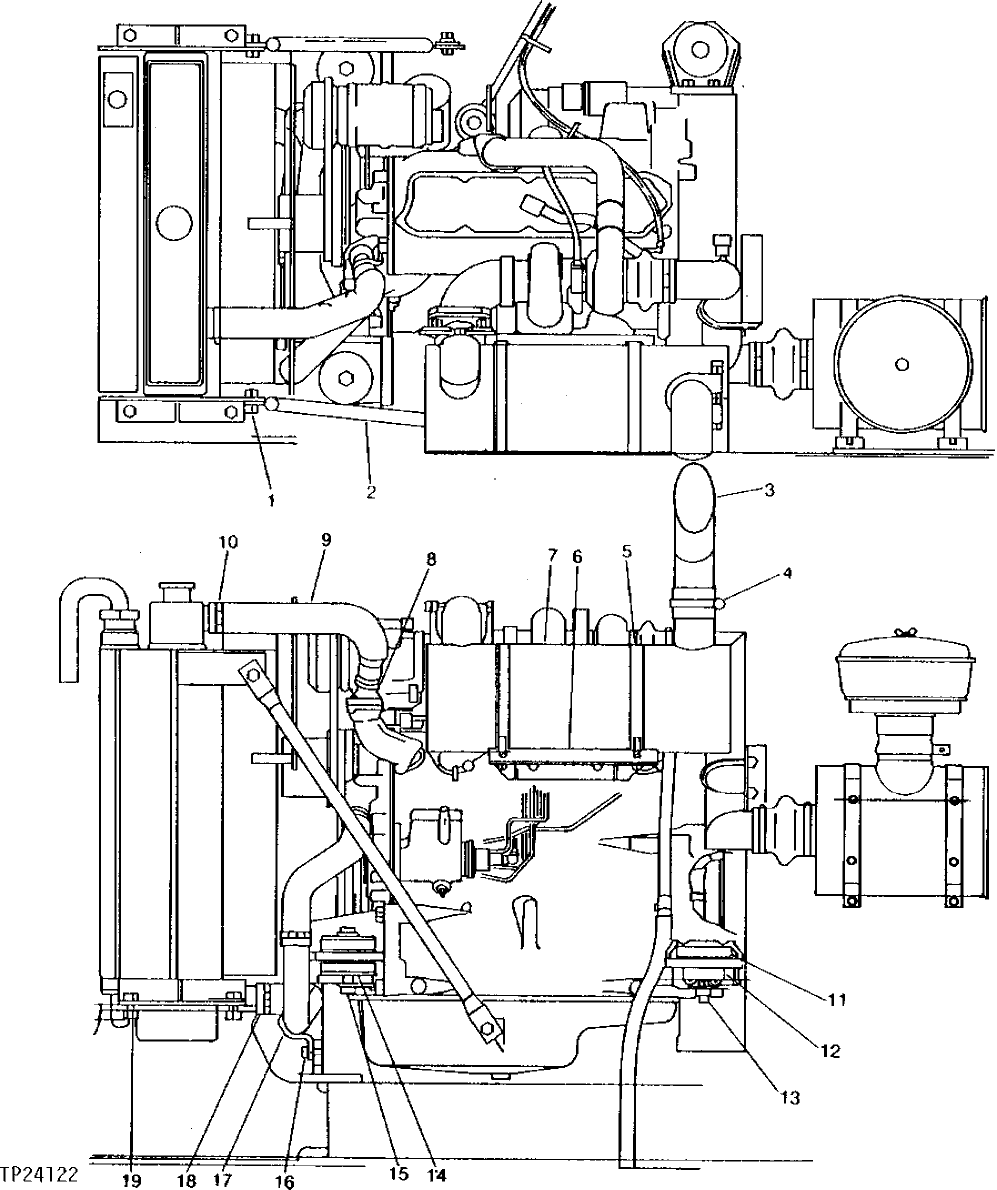

Запчасти John Deere 90 4 - ENGINE AUXILIARY SYSTEM 510 - ENGINE AUXILIARY SYSTEMS 5

1

19M8035

CAP SCREW

M16 X 35

4шт.

12H294

LOCK WASHER

5/8", (SUB FOR TH100466)

8шт.

2

4155330

STOP

(SUB FOR TH100863)

1шт.

3

9720251

EXHAUST PIPE

(SUB FOR TH100881)

1шт.

4

AN122180

CLAMP

(SUB FOR TH100882)

2шт.

4170227

RING

(SUB FOR TH103415)

1шт.

5

9722613

BAND

(SUB FOR TH100874) (SUB FOR TH103368)

2шт.

14M7274

NUT

M10

4шт.

6

7013872

BRACKET

(SUB FOR TH100873)

1шт.

7

4155623

MUFFLER

(SUB FOR TH100872)

1шт.

8

TY22472

CLAMP

(SUB FOR AT145651 OR AR21999 OR AR21840)

1шт.

9

2018824

RADIATOR HOSE

(SUB FOR TH100866) UPPER RADIATOR

1шт.

10

TY22472

CLAMP

(SUB FOR AT145651 OR AR21999)

5шт.

11

4164248

STOP

(SUB FOR TH100888)

4шт.

12

4155170

ISOLATOR

(SUB FOR TH100894)

4шт.

13

J931804

BOLT

(SUB FOR TH100889)

2шт.

4114406

WASHER

(SUB FOR TH100891)

4шт.

J951018

NUT

(SUB FOR TH100890)

2шт.

14

4155171

ISOLATOR

(SUB FOR TH100887)

6шт.

15

J931804

BOLT

(SUB FOR TH100889)

2шт.

4114406

WASHER

(SUB FOR TH100891)

4шт.

J951018

NUT

(SUB FOR TH100890)

2шт.

16

19M7402

CAP SCREW

M10 X 25

2шт.

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

2шт.

17

8028522

LINE

(SUB FOR TH100869)

1шт.

18

TH100867

RADIATOR HOSE

LOWER RADIATOR

1шт.

19

19M7488

CAP SCREW

M16 X 40

4шт.

12H294

LOCK WASHER

5/8", (SUB FOR TH100466)

ARшт.
