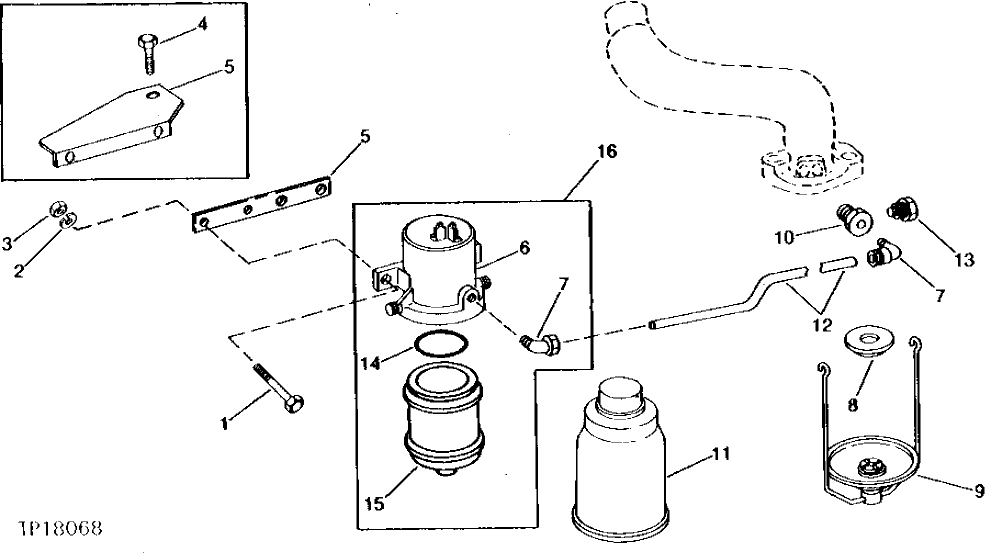

Запчасти John Deere 90 1 - COLD WEATHER STARTING AID 505 - ENGINE AUXILIARY SYSTEMS 5

1

19H2127

CAP SCREW

5/16" X 7/8", (OLD DESIGN)

2шт.

19H3483

CAP SCREW

3/8" X 1-1/8"

2шт.

28H1878

SPACER

0.493" X 0.675" X 7/16"

2шт.

2

12H303

LOCK WASHER

5/16"

2шт.

3

14H785

NUT

5/16"

2шт.

4

19H3385

CAP SCREW

1/2" X 1-1/8", (OLD DESIGN)

1шт.

5

BRACKET

( L32515 NO LONGER AVAILABLE) (SUB T107562, R82427, (2) 19H2633 AND (2) 28H1878)

1шт.

R82427

STRAP

(SUB FOR L32515 ALONG WITH T107562, (2) 19H2633, AND (2) 28H1878)

1шт.

19H2633

CAP SCREW

3/8" X 1-1/2"

2шт.

28H1878

SPACER

0.493" X 0.675" X 7/16"

2шт.

6

SOLENOID

(SUB RE48311)

1шт.

7

RE21790

ELBOW FITTING

(SUB FOR AT25266)

2шт.

8

T46726

GASKET

1шт.

9

AT57288

BAIL

1шт.

10

R47160

NOZZLE HOLDER

1шт.

11

RE33636

STARTING FLUID

(SUB FOR AR27814, RE24561 AND RE30174)

1шт.

12

HOSE

(SUB FOR L37779) (MAKE FROM T78593 BULK MATERIAL, CUT TO LENGTH)

1шт.

13

T155858

NOZZLE

(SUB FOR R28583)

1шт.

14

T13119

O-RING

1шт.

15

R73498

CONTAINER

1шт.

16

RE48311

STARTING AID

(SUB FOR AT41998, AT105778 AND AT125915)

1шт.
